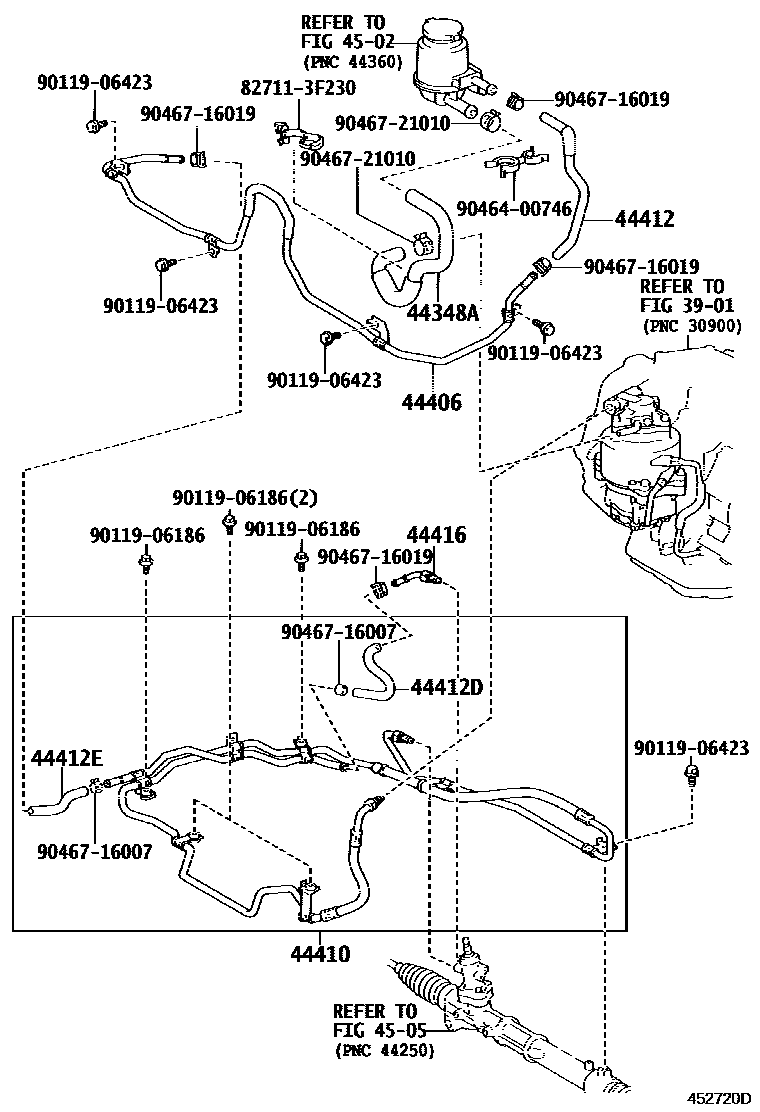

POWER STEERING TUBE

0001 1 0002 1

3901TRANSAXLE ASSY(HEV OR BEV OR FCEV)

→ Go to FIG 39-01

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-28270iAHR10200105-200308

main44348-28291iAHR10200308

44406TUBE SUB-ASSY, RETURN

main44406-28340iAHR10200105-200308

44410TUBE ASSY, PRESSURE FEED

main44410-28510iAHR10200105-200308

main44410-28541iAHR10200308-200411

main44410-28542iAHR10200412

44412HOSE, RETURN

main44412-28320iAHR10200105-200308

44412DHOSE, RETURN, NO.1

main44412-28360iAHR10200105-200308

main44412-58030iAHR10200308-200601

44412EHOSE, RETURN, NO.2

main44412-28440iAHR10200105-200308

main44412-28450iAHR10200308-200601

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-28370iAHR10200308

main44416-28380iAHR10200105-200308

4502VANE PUMP & RESERVOIR (POWER STEERING)

→ Go to FIG 45-02

4505FRONT STEERING GEAR & LINK

→ Go to FIG 45-05

827113F230WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3F230

9011906186

main90119-06186

9011906423

main90119-06423

9046400746

main90464-00746

9046716007

main90467-16007

9046716019

main90467-16019

9046721010

main90467-21010

17 parts on this diagram · 2 diagrams in section
