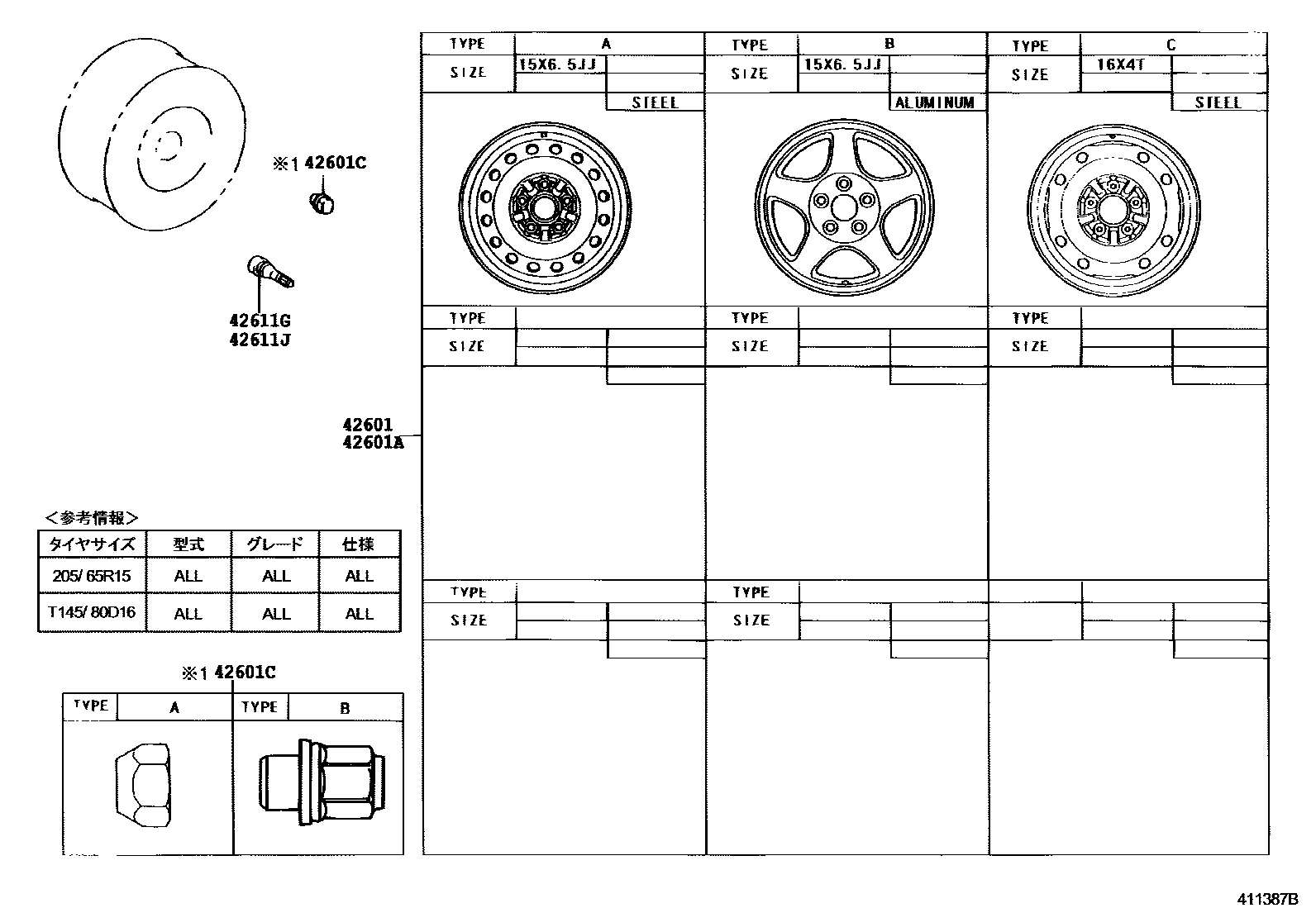

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1

42601WHEEL, DISC

main42611-28420×4iAHR10200105-200308

main42611-28480×4iAHR10200105-200308

42601AWHEEL, DISC (FOR SPARE)

main42611-28210iAHR10200308

sub42611-28211

42601CNUT, HUB (FOR AXLE)

main90942-01007×20iAHR10200105-200308

main90942-01033×20iAHR10200105-200308

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4iAHR10200105-200308

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iAHR10200105-200308

5 parts on this diagram · 3 diagrams in section
