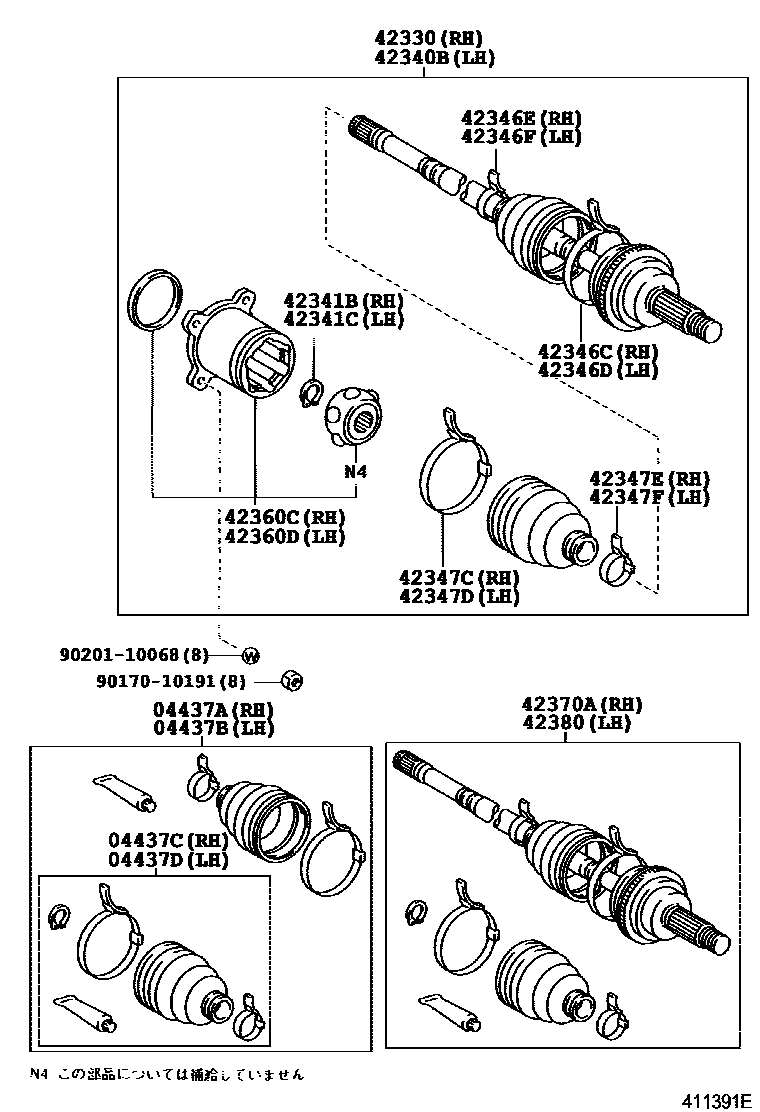

REAR AXLE SHAFT & HUB
04437CBOOT KIT, REAR DRIVE SHAFT INBOARD JOINT, RH
04437DBOOT KIT, REAR DRIVE SHAFT INBOARD JOINT, LH
42330SHAFT ASSY, REAR DRIVE, RH
42340BSHAFT ASSY, REAR DRIVE, LH
42341BRING, SNAP (FOR REAR DRIVE SHAFT RH)
42341CRING, SNAP (FOR REAR DRIVE SHAFT LH)
42346CCLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH)
42346DCLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH)
42346ECLAMP, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH)
42346FCLAMP, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH)
42347CCLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH)
42347DCLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH)
42347ECLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH)
42347FCLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH
42360CJOINT ASSY, REAR DRIVE SHAFT INBOARD, RH
42360DJOINT ASSY, REAR DRIVE SHAFT INBOARD, LH
42370ASHAFT ASSY, REAR DRIVE OUTBOARD JOINT, RH
42380SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, LH
9017010191
main90170-10191
9020110068
main90201-10068
22 parts on this diagram · 2 diagrams in section
