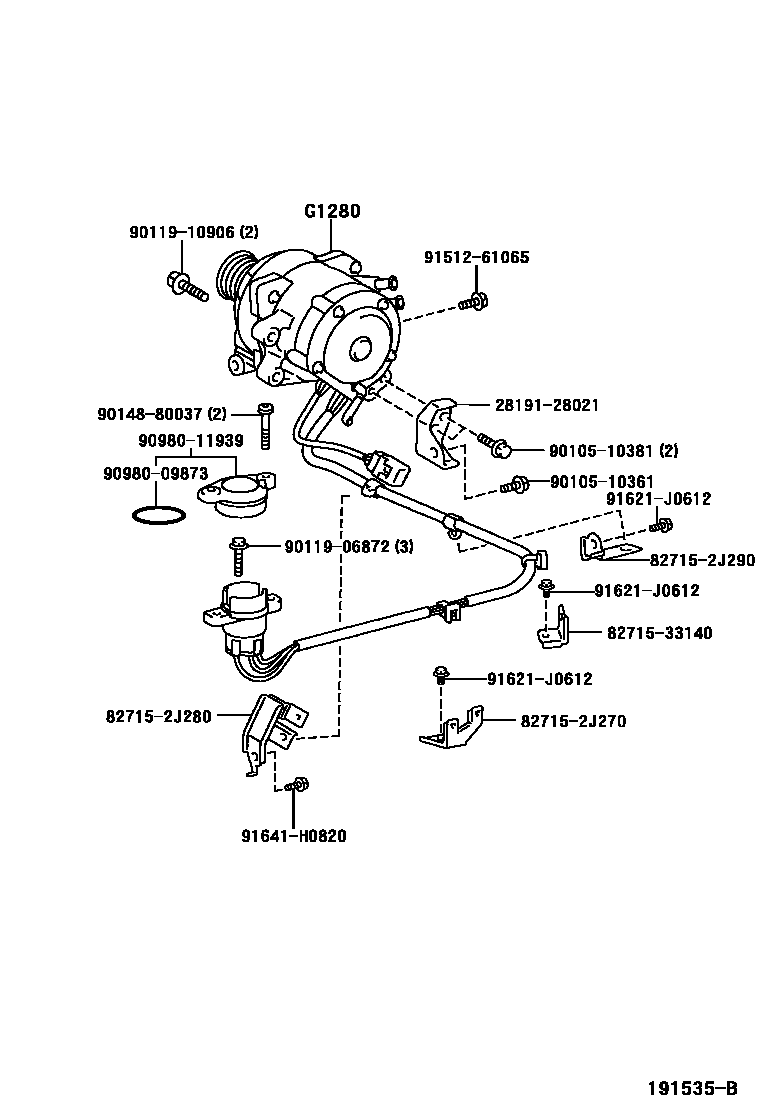

ALTERNATOR

G1280MOTOR ASSY, HYBRID VEHICLE STARTER GENERATOR

mainG128028011iAHR10200105-200308

2819128021STAY, STARTER

main28191-28021

827152J270BRACKET,WIRING HARNESS CLAMP

main82715-2J270

827152J280BRACKET,WIRING HARNESS CLAMP

main82715-2J280

827152J290BRACKET,WIRING HARNESS CLAMP

main82715-2J290

8271533140BRACKET,WIRING HARNESS CLAMP

main82715-33140

9010510361

main90105-10361

9010510381

main90105-10381

9011906872

main90119-06872

9011910906

main90119-10906

9014880037

main90148-80037

9098009873

main90980-09873

9098011939

main90980-11939

9151261065

main91512-61065

91621J0612

main91621-J0612

91641H0820

main91641-H0820

16 parts on this diagram · 1 diagram in section
