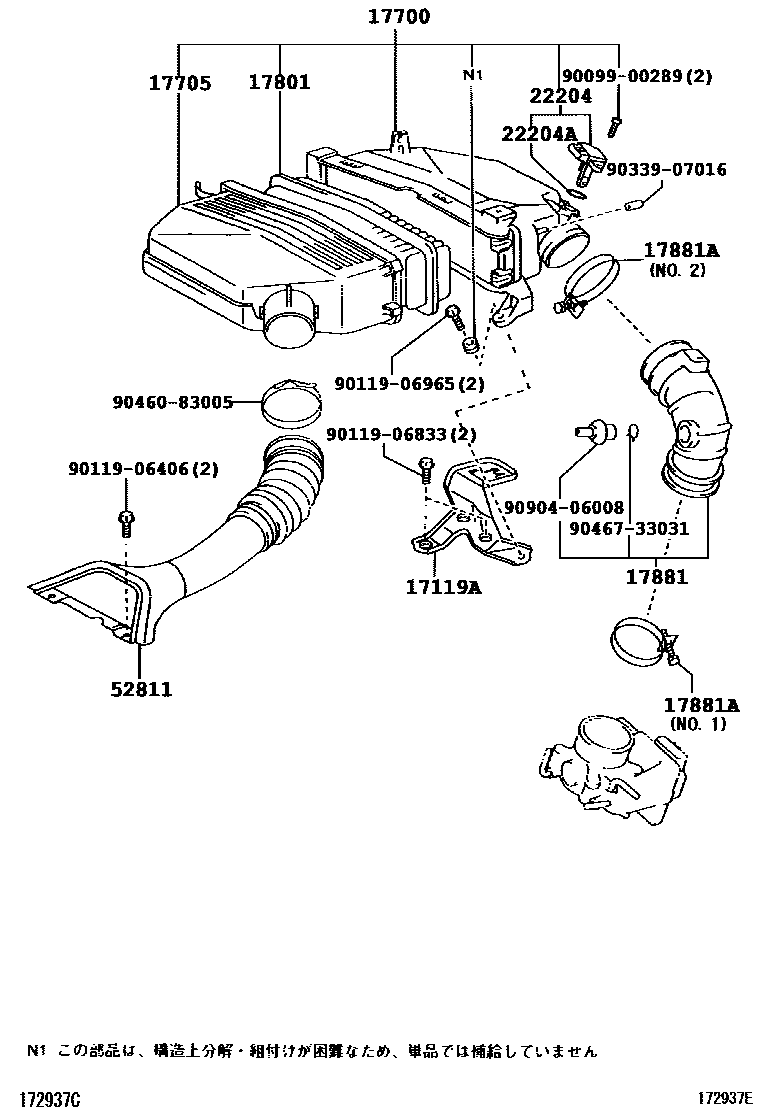

AIR CLEANER

17119ABRACKET, AIR CLEANER

main17119-28010i2AZFXE..AHR10200105-200308

17700CLEANER ASSY, AIR

main17700-28090i2AZFXE..AHR10200105-200301

sub17700-28091

main17700-28091i2AZFXE..AHR10200301-200412

sub17700-28092

main17700-28092i2AZFXE..AHR10200501

17705CAP SUB-ASSY, AIR CLEANER

main17705-28050i2AZFXE..AHR10200105-200412

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-28010i2AZFXE..AHR10200105-200412

17881HOSE, AIR CLEANER, NO.1

main17881-28110i2AZFXE..AHR10200105-200308

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10750i2AZFXE..AHR10200105-200308

main96111-10830i2AZFXE..AHR10200105-200308

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-22010i2AZFXE..AHR10200105-200412

22204ARING, O(FOR INTAKE AIR FLOW METER)

main90099-14141i2AZFXE..AHR10200105-200308

52811DUCT, COOL AIR INTAKE, NO.1

main52810-28110iAHR10200105-200308

9009900289

main90099-00289

9011906406

main90119-06406

9011906833

main90119-06833

9011906965

main90119-06965

9033907016

main90339-07016

9046083005

main90460-83005

9046733031

main90467-33031

9090406008

main90904-06008

17 parts on this diagram · 1 diagram in section
