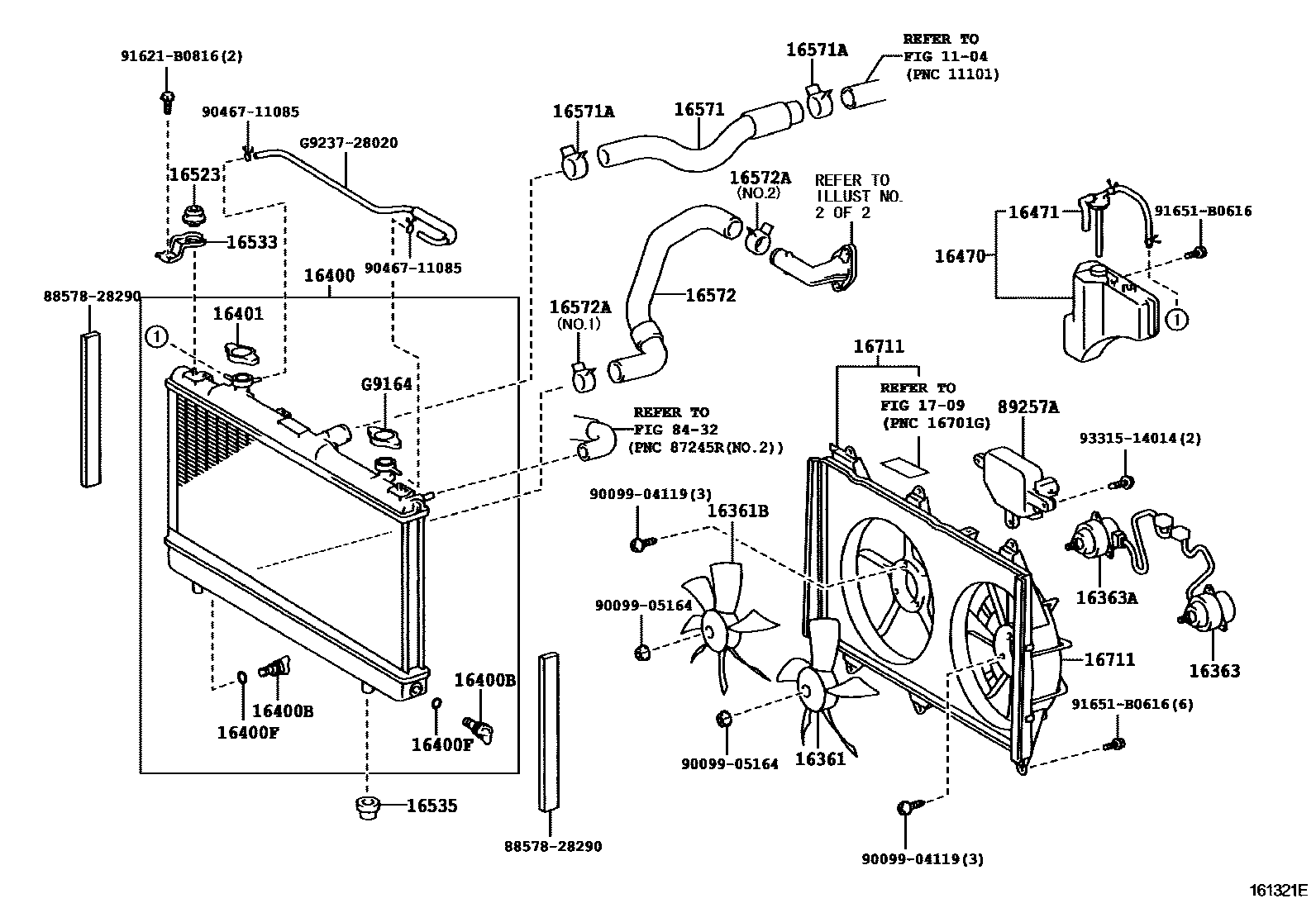

RADIATOR & WATER OUTLET

0001 1 0002 1

1104

16361FAN

main16361-21050i2AZFXE..AHR10200401-200601

main16361-23050i2AZFXE..AHR10200105-200401

16361BFAN, NO.2

main16361-28050i2AZFXE..AHR10200105-200401

main16361-28170i2AZFXE..AHR10200401-200601

16363MOTOR, COOLING FAN

main16363-28080i2AZFXE..AHR10200105-200305

sub16363-28250

main16363-28250i2AZFXE..AHR10200305-200308

16363AMOTOR, COOLING FAN, NO.2

main16363-28090i2AZFXE..AHR10200105-200305

sub16363-28260

main16363-28260i2AZFXE..AHR10200305-200308

16400RADIATOR ASSY

main16400-28340i2AZFXE..AHR10200105-200112

sub16400-28341

sub87245-2J681

sub87263-28031

subG9237-28020

main16400-28341i2AZFXE..AHR10200112-200308

16400BPLUG, RADIATOR DRAIN COCK

main23322-54010i2AZFXE..AHR10200105-200308

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-21050i2AZFXE..AHR10200105-200308

16401CAP SUB-ASSY, RADIATOR

main16401-62100i2AZFXE..AHR10200105-200308

sub16401-31520

16470TANK ASSY, RADIATOR RESERVE

main16470-28080i2AZFXE..AHR10200105-200308

16471CAP SUB-ASSY, RESERVE TANK

main16405-28050i2AZFXE..AHR10200105-200308

16523CUSHION, SUB-RADIATOR SUPPORT

main16523-74010i2AZFXE..AHR10200105-200308

16533SUPPORT, RADIATOR, UPPER

main16533-20021i2AZFXE..AHR10200105-200308

16535SUPPORT, RADIATOR, LOWER

main16535-74210i2AZFXE..AHR10200105-200308

16571HOSE, RADIATOR, INLET

main16571-28050i2AZFXE..AHR10200105-200308

main16571-28220i2AZFXE..AHR10200308

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-37005i2AZFXE..AHR10200204-200308

main90467-37006i2AZFXE..AHR10200105-200204

sub90467-37005

16572HOSE, RADIATOR, OUTLET

main16572-28020i2AZFXE..AHR10200105-200305

sub16572-28200

main16572-28200i2AZFXE..AHR10200305-200308

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90466-37002i2AZFXE..AHR10200305-200308

main90467-37005i2AZFXE..AHR10200305-200308

main90467-37005i2AZFXE..AHR10200204-200305

main90467-37006i2AZFXE..AHR10200105-200204

sub90467-37005

16711SHROUD, FAN

main16711-28240i2AZFXE..AHR10200105-200308

1709

8432

89257ACOMPUTER, COOLING FAN

main89257-48010iAHR10200105-200601

G9164CAP, INVERTER RADIATOR

mainG916428010iAHR10200105-200308

8857828290PAKING, COOLER AIR DUCT

main88578-28290

9009904119

main90099-04119

9009905164

main90099-05164

9046711085

main90467-11085

91621B0816

main91621-B0816

91651B0616

main91651-B0616

9331514014

main93315-14014

G923728020HOSE, INVERTER DRAIN

mainG9237-28020
