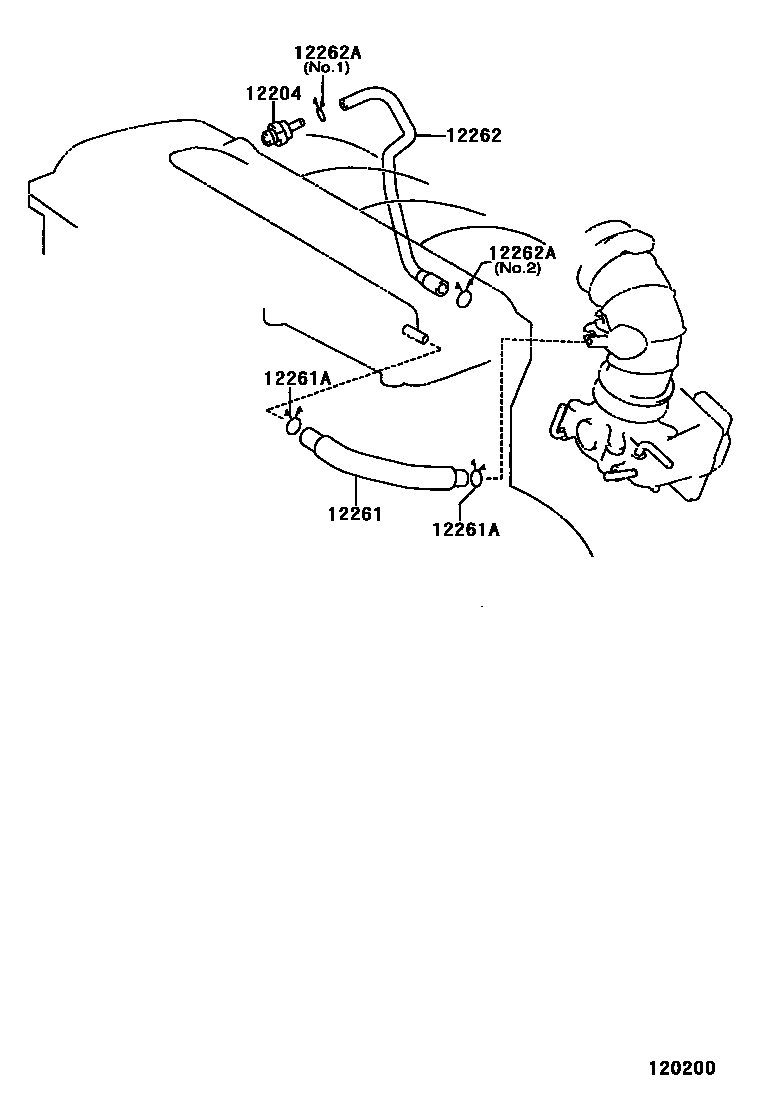

VENTILATION HOSE

12204VALVE SUB-ASSY, VENTILATION

main12204-28020i2AZFXE..AHR10200308

12261HOSE, VENTILATION

main12261-28080i2AZFXE..AHR10200105-200308

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90467-19003×2i2AZFXE..AHR10200105-200308

12262HOSE, VENTILATION, NO.2

main12262-28060i2AZFXE..AHR10200308

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90467-13103i2AZFXE..AHR10200105-200308

main90467-15120i2AZFXE..AHR10200210-200302

main90467-16035i2AZFXE..AHR10200105-200210

main96134-51500i2AZFXE..AHR10200302-200308

5 parts on this diagram · 1 diagram in section
