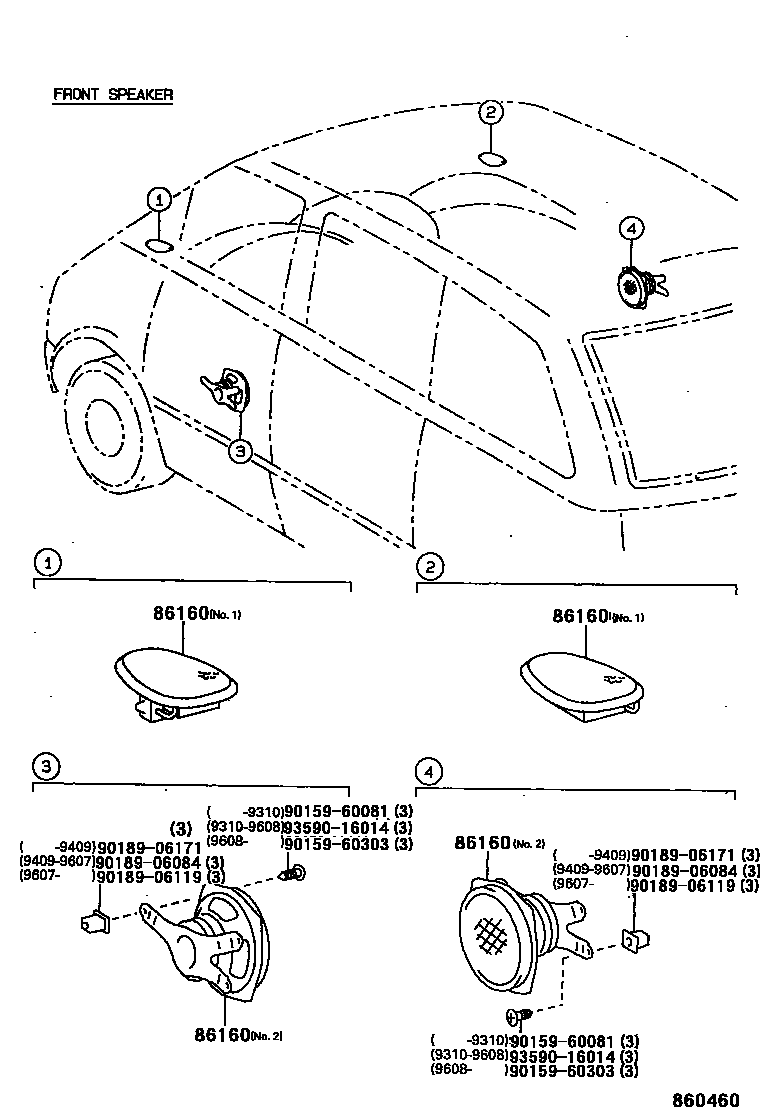

SPEAKER

0001 1FRONT 0002 1REAR 0003 1TWEETER

86160SPEAKER ASSY, FRONT NO.1

main86160-28140iCXR1#,2#,TCR1#,2#199201-199608

NO.2 RH

main86160-28150iCXR1#,2#,TCR1#,2#..F,G,GLUX,S,X,XLUX199201-199608

NO.2 LH

main86160-28160-B0iCXR10,20..ATM..(AERAS,X,XLUX);CXR11,21,TCR10,20..AERAS,G,XLUX; TCR1#,2#..G,X199801-199912

main86160-28160-B1iCXR10,20,TCR10,20..ELU199801-199912

BLUE GRAY,TRIM1#,NO.1 RH

main86160-28160-E1iCXR11,21;TCR11,21..GLUX199308-199608

LIGHT GREIGE,TRIM4#,NO.1 RH

main86160-28170-B0iCXR10,20..ATM..(AERAS,X,XLUX);CXR11,21,TCR10,20..AERAS,G,XLUX; TCR1#,2#..G,X199801-199912

main86160-28170-B1iCXR10,20,TCR10,20..ELU199801-199912

BLUE GRAY,TRIM1#,NO.1 LH

main86160-28170-E1iCXR1#,2#,TCR1#,2#..(G,X)..(EFI,TD)199201-199501

main86160-28440iCXR1#,2#,TCR1#,2#199608-199912

NO.2 RH

main86160-28450iCXR1#,2#,TCR1#,2#199608-199912

NO.2 LH

9015960081

main90159-60081

9015960303

main90159-60303

9018906084

main90189-06084

9018906119

main90189-06119

9018906171

main90189-06171

9359016014

main93590-16014

7 parts on this diagram · 3 diagrams in section
