WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-28070iCXR1#,2#,TCR1#,2#199201-199912

main85110-28080iCXR1#,2#,TCR1#,2#199201-199912

85151BFRAME, FRONT WIPER LINK

main85151-28040iCXR1#,2#,TCR1#,2#199201-199612

main85151-28041iCXR1#,2#,TCR1#,2#199612-199912

main85151-28050iCXR1#,2#,TCR1#,2#199201-199612

main85151-28051iCXR1#,2#,TCR1#,2#199612-199912

85178NUT (FOR FRONT WIPER ARM SETTING)

main90179-08209×2iCXR1#,2#,TCR1#,2#199201-199912

85190ARM ASSY, WINDSHIELD WIPER

main85211-28030iCXR1#,2#,TCR1#,2#199201-199912

main85221-28010iCXR1#,2#,TCR1#,2#199201-199912

85192COVER, WINDSHIELD WIPER ARM

main85292-28010×2iCXR1#,2#,TCR1#,2#199201-199912

85214ARUBBER, WIPER, RH

main85214-28030iCXR1#,2#,TCR1#,2#199808-199912

main85214-28040iCXR1#,2#,TCR1#,2#199502-199808

85214BRUBBER, WIPER, LH

main85214-60020iCXR1#,2#,TCR1#,2#199502-199912

85220BLADE ASSY, WINDSHIELD WIPER

main85212-28030iCXR1#,2#,TCR1#,2#199201-199308

main85212-28031iCXR1#,2#,TCR1#,2#199308-199912

main85222-28020iCXR1#,2#,TCR1#,2#199201-199912

main85291-28030iCXR1#,2#,TCR1#,2#199201-199912

main85291-28040iCXR1#,2#,TCR1#,2#199201-199912

85221BLADE, WINDSHIELD WIPER

main85213-28030iCXR1#,2#,TCR1#,2#199201-199502

main85223-28020iCXR1#,2#,TCR1#,2#199201-199502

85224APLATE, WIPER RUBBER BACKING, NO.1

main85224-28020iCXR1#,2#,TCR1#,2#199502-199612

main85224-28040iCXR1#,2#,TCR1#,2#199612-199912

85224BPLATE, WIPER RUBBER BACKING, NO.2

main85224-28030iCXR1#,2#,TCR1#,2#199502-199612

main85224-28050iCXR1#,2#,TCR1#,2#199612-199912

85224CPLATE, WIPER RUBBER BACKING, NO.3

main85224-28080iCXR1#,2#,TCR1#,2#199502-199912

85224DPLATE, WIPER RUBBER BACKING, NO.4

main85224-28090iCXR1#,2#,TCR1#,2#199502-199912

9011906123

main90119-06123

9011906614

main90119-06614

9338516016

main93385-16016

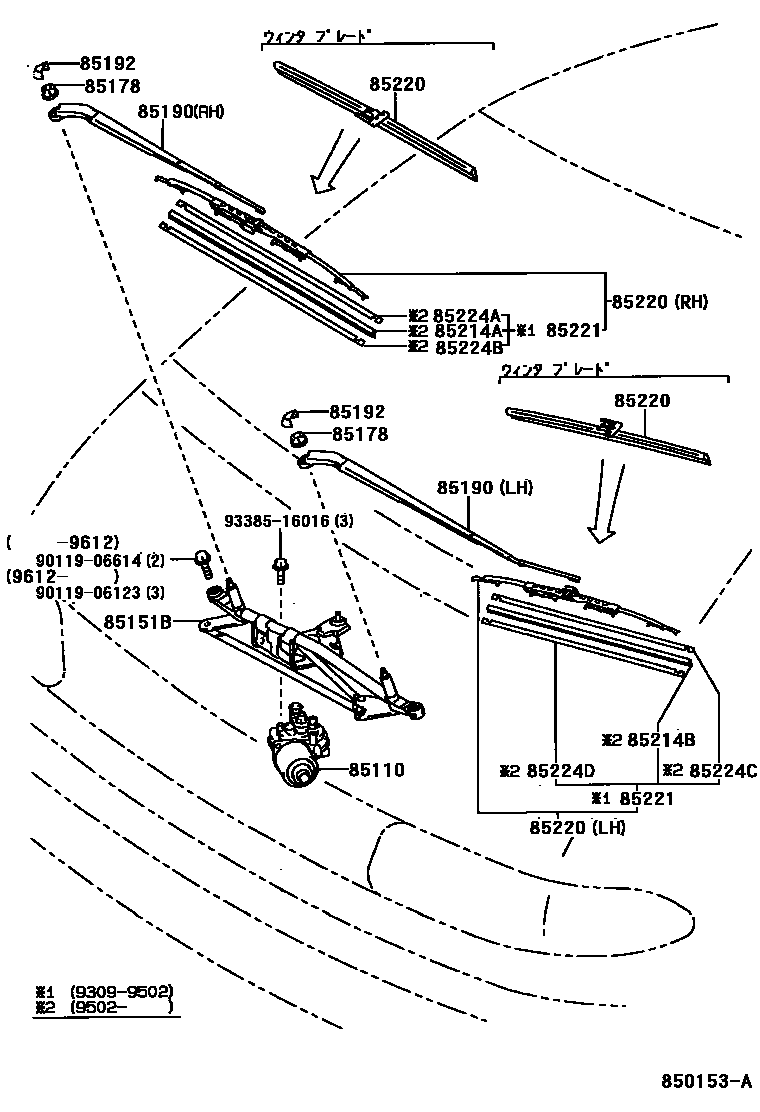

16 parts on this diagram · 1 diagram in section
