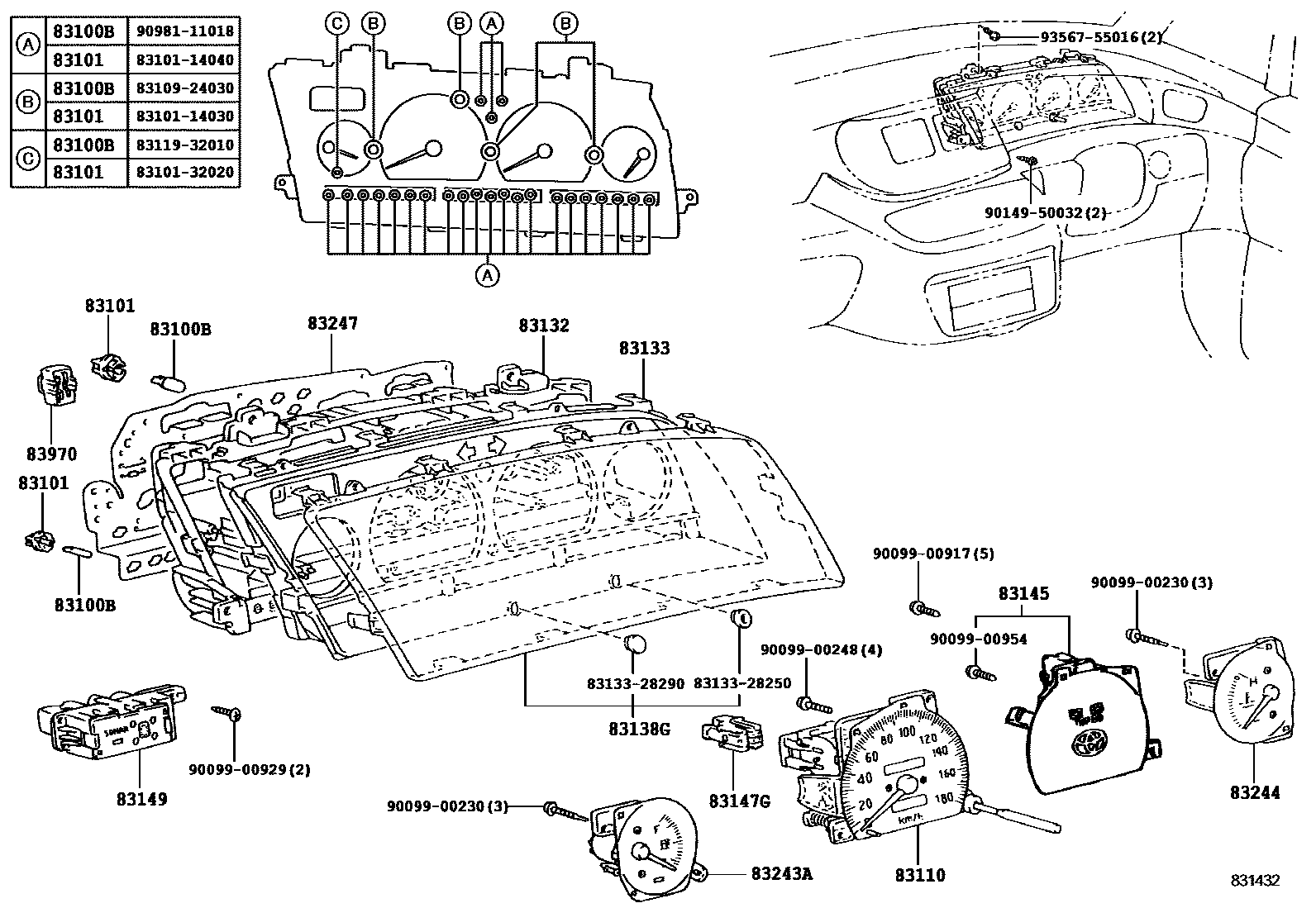

METER

0001 1W/O TACHOMETER 0002 1W/TACHOMETER 0003 1 0004 1

83100BBULB, COMBINATION METER, NO.1

main83109-24030×3iCXR1#,2#,TCR1#,2#199801-199912

main83119-32010iCXR1#,2#,TCR1#,2#199201-199912

main90981-11018×21iTCR10..ATM..F; TCR10..MTM..F199201-199308

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14030×4iCXR2#..ATM199801-199908

main83101-14040×21iCXR1#..ATM; CXR10,20..MTM; CXR2#..ATM; TCR1#..ATM; TCR2#..ATM199501-199801

BULB:12V 1.4W

main83101-32020iCXR1#,2#,TCR1#,2#199201-199308

BULB:14V 3.0W

83110SPEEDOMETER ASSY

main83110-28230iTCR1#,2#199201-199501

main83110-28240iCXR1#,2#199201-199501

main83110-2J360iCXR1#,2#,TCR1#,2#199501-199801

main83110-2J361iCXR1#,2#,TCR1#,2#199801-199912

83132CASE, COMBINATION METER

main83132-28450iTCR10..MTM..F199201-199308

main83132-28470iTCR10..ATM..F199201-199308

main83132-28490iCXR10,20..MTM..(D,F)199201-199308

main83132-28510iCXR10..ATM..(D,F)199201-199308

main83132-28530iCXR20..ATM..F199201-199308

main83132-28550iTCR10,2#..MTM..(G,S,X)199201-199308

main83132-28570iTCR10,2#..MTM..(G,S,X)199201-199308

main83132-28590iTCR1#..ATM..(G,S,X)199201-199308

main83132-28610iTCR1#..ATM..(G,S,X)199201-199308

main83132-28630iTCR2#..ATM199201-199308

main83132-28650iTCR2#..ATM199201-199308

main83132-28670iCXR1#,2#..MTM..(G,X)199201-199308

main83132-28690iCXR1#,2#..MTM..(G,X)199201-199308

main83132-28710iCXR1#..ATM..(G,X)199201-199308

main83132-28730iCXR1#..ATM..(G,X)199201-199308

main83132-28750iCXR2#..ATM..(G,X)199201-199308

main83132-28770iCXR2#..ATM..(G,X)199201-199308

main83132-28790iTCR10..MTM..F199201-199308

main83132-28810iTCR10..ATM..F199201-199308

main83132-28830iCXR10,20..MTM..(D,F)199201-199308

main83132-28850iCXR10..ATM..(D,F)199201-199308

main83132-28870iCXR20..ATM..F199201-199308

main83132-28890iTCR10,20..MTM199308-199501

main83132-2J010iTCR10,20..MTM199308-199501

main83132-2J030iTCR1#,2#..ATM199308-199501

main83132-2J050iTCR1#,2#..ATM199308-199501

main83132-2J070iCXR10,20..MTM..F199308-199501

main83132-2J090iCXR10,20..MTM..F199308-199501

main83132-2J150iCXR10,20..ATM..F199308-199501

main83132-2J170iCXR10,20..ATM..F199308-199501

main83132-2J190iCXR10,20..MTM..X199308-199501

main83132-2J210iCXR10,20..MTM..X199308-199501

main83132-2J230iCXR1#..ATM..(G,X)199308-199501

main83132-2J250iCXR1#..ATM..(G,X)199308-199501

main83132-2J270iCXR2#..ATM..(G,X)199308-199501

main83132-2J290iCXR2#..ATM..(G,X)199308-199501

main83132-2J330iTCR10,20..MTM199501-199608

main83132-2J350iTCR10,20..MTM199501-199608

main83132-2J370iTCR1#,2#..ATM..(G,X,XLUX)199501-199608

main83132-2J371iTCR1#,2#199608-199801

main83132-2J372iCXR1#,2#,TCR1#,2#..ATM199801-199912

main83132-2J390iTCR1#,2#..ATM..(G,X,XLUX); TCR11,21..GLUX199501-199608

main83132-2J392iCXR1#,2#,TCR1#,2#..ATM199801-199912

main83132-2J490iCXR10,20..MTM199501-199608

main83132-2J491iCXR10,20..MTM199608-199801

main83132-2J492iCXR10,20..MTM199801-199908

main83132-2J510iCXR10,20..MTM199501-199608

main83132-2J511iCXR10,20..MTM199608-199801

main83132-2J512iCXR10,20..MTM199801-199908

main83132-2J530iCXR1#,2#..ATM..(G,X,XLUX)199501-199608

main83132-2J531iCXR1#,2#..ATM..(AERAS,G,X,XLUX)199608-199801

main83132-2J550iCXR1#,2#..ATM..(G,X,XLUX); CXR11,21..GLUX199501-199608

main83132-2J551iCXR1#,2#..ATM..(AERAS,G,X,XLUX); CXR11,21..GLUX199608-199801

83133PLATE, COMBINATION METER, NO.1

main83133-28170iCXR1#,2#,TCR1#,2#..AERAS,D,ELU,F,G,S,X,XLUX199201-199912

main83133-28190iCXR1#,2#,TCR1#,2#199201-199912

main83811-28720iCXR1#,2#,TCR1#,2#..ELU,G,XLUX199901

83138GGLASS, COMBINATION METER

main83138-28010iCXR1#,2#,TCR1#,2#199201-199501

main83138-28030iCXR1#,2#,TCR1#,2#199501-199912

83145LENS, METER, NO.1

main83145-28110iTCR10..MTM..F;CXR10,20..F..TDEFI199201-199501

main83145-28130iCXR10,20..MTM..(D,F)199201-199308

main83145-28150iCXR10,20..ATM..(D,F)199201-199308

main83145-28170iTCR10..ATM..F199201-199308

83147GCONNECTOR, COMBINATION METER

main83147-28010iCXR1#,2#,TCR1#,2#199201-199501

83149PLATE, METER CIRCUIT

main83149-28270iCXR1#,2#,TCR1#,2#199201-199912

83243AGAUGE SUB-ASSY, FUEL RECEIVER

main83243-28050iTCR1#..ATM..(AERAS,G,X,XLUX); TCR11..GLUX199501-199801

main83243-28070iTCR11..G;CXR1#,2#,TCR10,2#199501-199801

main83243-28071iCXR1#,2#,TCR1#,2#199801-199912

83244GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER

main83244-28130iCXR1#,2#,TCR1#,2#199201-199501

main83244-28150iCXR1#,2#,TCR1#,2#199501-199801

main83244-28151iCXR1#,2#,TCR1#,2#199801-199912

83247PLATE, METER CIRCUIT

main83149-28050iTCR10..MTM..F199201-199308

main83149-28070iTCR10..ATM..F199201-199308

main83149-28090iCXR10,20..MTM..(D,F)199201-199308

main83149-28110iCXR10..ATM..(D,F)199201-199308

main83149-28130iCXR20..ATM..F199201-199308

main83149-28150iTCR10,2#..MTM..(G,S,X)199201-199308

main83149-28170iTCR1#..ATM..(G,S,X)199201-199308

main83149-28190iTCR2#..ATM199201-199308

main83149-28210iCXR1#,2#..MTM..(G,X)199201-199308

main83149-28230iCXR1#..ATM..(G,X)199201-199308

main83149-28250iCXR2#..ATM..(G,X)199201-199308

main83149-28290iTCR10,20..MTM199308-199501

main83149-28310iTCR1#..ATM199308-199501

main83149-28330iTCR2#..ATM199308-199501

main83149-28350iCXR10,20..MTM..F199308-199501

main83149-28370iCXR10..ATM..F199308-199501

main83149-28390iCXR20..ATM..F199308-199501

main83149-28410iCXR10,20..MTM..X199308-199501

main83149-28430iCXR1#..ATM..(G,X)199308-199501

main83149-28450iCXR2#..ATM..(G,X)199308-199501

main83149-28470iCXR2#..ATM199801-199908

main83149-28471iCXR1#,2#,TCR1#,2#199801-199912

83970BUZZER ASSY, REVERSE WARNING

main83970-20010iCXR1#,2#,TCR1#,2#..ATM199201-199801

8313328250PLATE, COMBINATION METER, NO.1

main83133-28250

8313328290PLATE, COMBINATION METER, NO.1

main83133-28290

9009900230

main90099-00230

9009900248

main90099-00248

9009900917

main90099-00917

9009900929

main90099-00929

9009900954

main90099-00954

9014950032

main90149-50032

9356755016

main93567-55016

22 parts on this diagram · 4 diagrams in section
