WIRING & CLAMP

0001 1ENGINE WIRE 0002 1ENGINE WIRE 0003 1ENGINE WIRE 0004 1BATTERY CABLE 0005 1ENGINE ROOM WIRE 0006 1COWL WIRE 0007 1COWL WIRE SPEC LIST 0008 1COWL WIRE SPEC LIST 0009 1COWL WIRE SPEC LIST 0010 1COWL WIRE SPEC LIST 0011 1COWL WIRE SPEC LIST 0012 1COWL WIRE SPEC LIST 0013 1COWL WIRE SPRC LIST 0014 1COWL WIRE SPRC LIST 0015 1COWL WIRE SPRC LIST 0016 1COWL WIRE SPRC LIST 0017 1COWL WIRE SPRC LIST 0018 1COWL WIRE CLAMP 0019 1FR DOOR & FLOOR 0020 1ROOF & BACK DOOR 0021 1CABLE BOND 0022 1DIODE

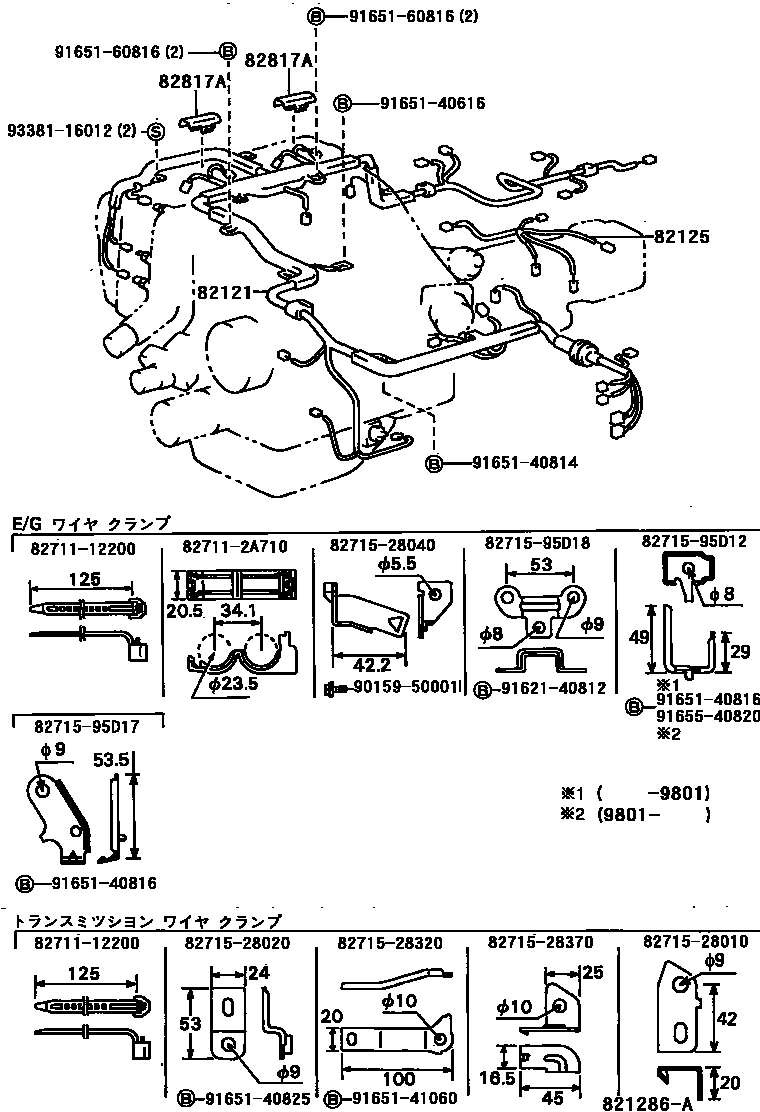

82121WIRE, ENGINE

main82121-28080iTCR1#,2#199201-199205

main82121-28081iTCR1#,2#199205-199501

main82121-28082iTCR1#,2#199501-199608

main82121-28083iTCR1#,2#199608-199801

main82121-28084iTCR1#,2#199801-199912

main82121-28100iCXR1#,2#199201-199301

main82121-28101iCXR1#,2#199308-199501

main82121-28102iCXR1#,2#199501-199608

main82121-28103iCXR1#,2#199608-199908

main82121-28250iCXR1#,2#199301-199308

main82121-28251iCXR1#,2#199308-199501

main82121-28252iCXR1#,2#199501-199608

main82121-28253iCXR1#,2#199608-199908

82125WIRE, TRANSMISSION

main82125-28060iCXR1#..MTM199201-199908

main82125-28070iCXR2#..MTM199201-199908

main82125-28080iCXR1#,TCR1#..ATM199201-199912

main82125-28090iCXR2#,TCR2#..ATM199201-199308

main82125-28091iCXR2#,TCR2#..ATM199308-199912

main82125-28100iTCR10..MTM199201-199608

main82125-28110iTCR2#..MTM199201-199608

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-16140iCXR1#,2#,TCR1#,2#199201-199208

main82817-28640iCXR1#,2#,TCR1#,2#199208-199801

82817APROTECTOR, WIRING HARNESS, NO.2

main82817-28230×2iTCR1#,2#199308-199912

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

827112A710WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2A710

8271528010BRACKET,WIRING HARNESS CLAMP

main82715-28010

8271528020BRACKET,WIRING HARNESS CLAMP

main82715-28020

8271528040BRACKET,WIRING HARNESS CLAMP

main82715-28040

8271528320BRACKET,WIRING HARNESS CLAMP

main82715-28320

8271528370BRACKET,WIRING HARNESS CLAMP

main82715-28370

8271595D12BRACKET,WIRING HARNESS CLAMP

main82715-95D12

8271595D17BRACKET,WIRING HARNESS CLAMP

main82715-95D17

8271595D18BRACKET,WIRING HARNESS CLAMP

main82715-95D18

9015950001

main90159-50001

9162140812

main91621-40812

9165140616

main91651-40616

9165140814

main91651-40814

9165140816

main91651-40816

9165140825

main91651-40825

9165141060

main91651-41060

9165160816

main91651-60816

9165540820

main91655-40820

9338116012

main93381-16012

24 parts on this diagram · 22 diagrams in section
