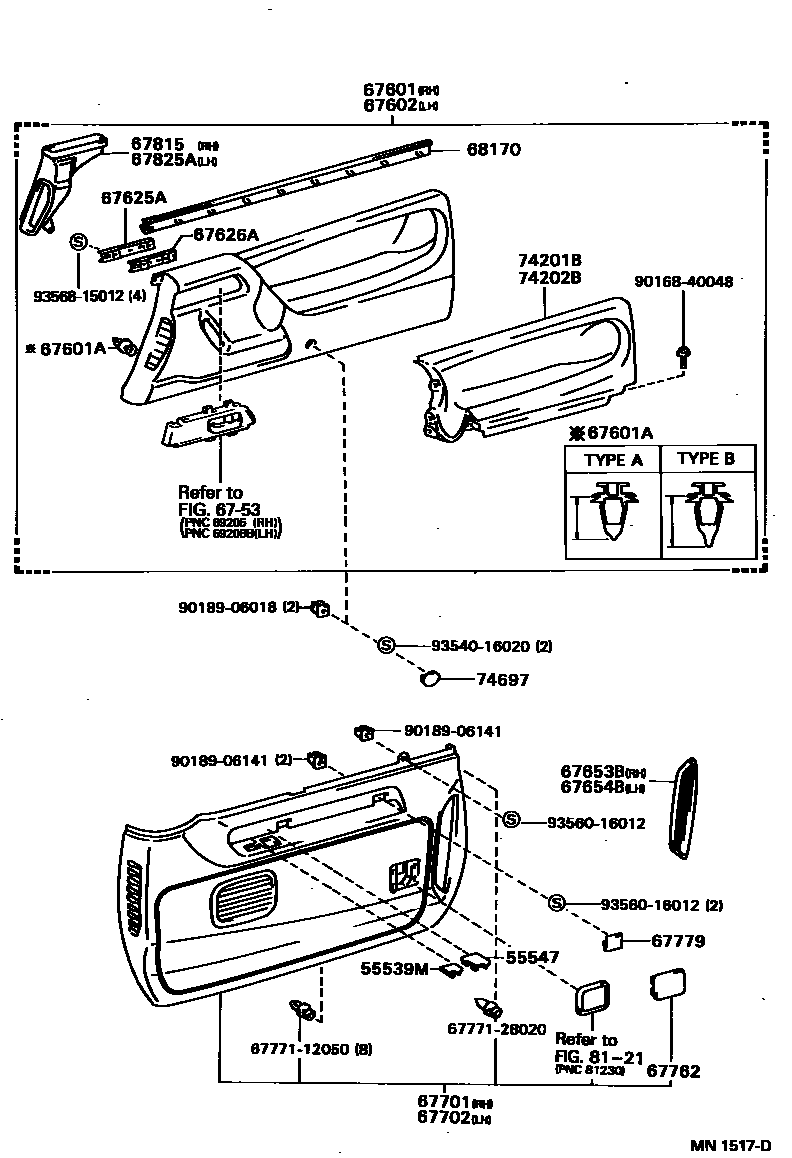

FRONT DOOR PANEL & GLASS

0001 1 0002 1

55539MCOVER, SPARE SWITCH HOLE

main55539-20080-05iCXR1#,2#,TCR1#,2#..G,X199201-199308

GREIGE,TRIM4#

sub55539-20080

sub55539-12130

sub55539-32010

main55539-20080-23iCXR1#,2#,TCR1#,2#..F,G,S,X199201-199308

LIGHT GRAY,TRIM1#

sub55539-20080

sub55539-12130

sub55539-32010

main55539-20080-B1iCXR1#,2#,TCR1#,2#199308-199407

GRAY,TRIM1#

sub55539-20080

sub55539-12130

sub55539-32010

main55539-20080-E2iCXR1#,2#,TCR1#,2#..G,X199308-199407

GREIGE,TRIM4#

sub55539-20080

sub55539-12130

sub55539-32010

main55539-28090-B0iCXR1#,2#,TCR1#,2#..AERAS,F,G,GLUX,X,XLUX199407-199912

GRAY,TRIM1#

sub55539-28090

sub55539-32010

main55539-28090-B1iCXR10,20,TCR10,20..ELU199801-199912

LT.BLUISH GRAY,TRIM1#

sub55539-28090

sub55539-32010

main55539-28090-E0iCXR1#,2#,TCR1#,2#..G,GLUX,X,XLUX199407-199608

GREIGE,TRIM4#

sub55539-28090

sub55539-32010

55547COVER, REMOTE CONTROL MIRROR HOLE

main55547-28020-03iCXR10,20,TCR10..D,F199201-199308

GRAY,TRIM1#

sub55547-28020

main55547-28020-03iCXR10,20,TCR10..D,F199201-199308

sub55547-28020

main55547-28020-05iCXR1#,2#,TCR1#,2#..G,X199201-199308

sub55547-28020

main55547-28020-05iCXR1#,2#,TCR1#,2#..G,X199201-199308

GREIGE,TRIM4#

sub55547-28020

main55547-28020-B0iCXR10,20..F199308-199501

sub55547-28020

main55547-28020-B0iCXR1#,2#,TCR1#,2#..AERAS,G,GLUX,X,XLUX199308-199912

GRAY,TRIM1#

sub55547-28020

main55547-28020-B3iCXR10,20,TCR10,20..ELU199801-199912

LT.BLUISH GRAY,TRIM1#

sub55547-28020

main55547-28020-E2iCXR1#,2#,TCR1#,2#..G,X199308-199501

sub55547-28020

main55547-28020-E2iCXR1#,2#,TCR1#,2#..G,GLUX,X,XLUX199308-199608

GREIGE,TRIM4#

sub55547-28020

6753

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-28130-B1iCXR11,21,TCR11,21..G199201-199308

LIGHT GRAY,TRIM1#

main67610-28130-E1iCXR11,21,TCR11,21..G199201-199308

LIGHT GREIGE,TRIM4#

main67610-28150-B0iCXR10,20,TCR10,20..X199201-199308

LIGHT GRAY,TRIM1#

main67610-28150-E0iCXR10,20,TCR10,20..X199201-199308

LIGHT GREIGE,TRIM4#

main67610-28151-B1iCXR10,20,TCR10,20..X199408-199501

GRAY,TRIM1#

sub67610-28151

main67610-28151-B2iCXR10,20,TCR10,20..X199308-199408

BLUISH GRAY,TRIM1#

sub67610-28151

main67610-28151-E1iCXR10,20,TCR10,20..X199408-199501

GREIGE,TRIM4#

sub67610-28151

main67610-28151-E2iCXR10,20,TCR10,20..X199308-199408

MI. GREIGE,TRIM4#

sub67610-28151

main67610-28360-B0iCXR10,20..F199308-199501

BLUISH GRAY,TRIM1#

sub67610-28360

main67610-28380-B1iCXR11,21,TCR11,21199308-199408

BLUISH GRAY,TRIM1#

sub67610-28380

main67610-28380-B1iCXR10,20,TCR10,20..ATM..X199408-199412

sub67610-28380

main67610-28380-B3iCXR10,20,TCR10,20..ATM..X199312-199407

sub67610-28380

main67610-28380-B5iCXR1#,2#,TCR1#,2#199408-199608

GRAY,TRIM1#

sub67610-28380

main67610-28380-E0iCXR11,21,TCR11,21199308-199408

MI. GREIGE,TRIM4#

sub67610-28380

main67610-28380-E1iCXR11,21,TCR11,21199408-199608

GREIGE,TRIM4#

sub67610-28380

main67610-28381-B6iCXR10,20,TCR10,20..AERAS,X,XLUX199608-199912

BLUISH GRAY,TRIM1#

sub67610-28381

main67610-28390-B0iCXR10,20..F199308-199501

sub67610-28390

main67610-28590-B0iCXR11,21,TCR11,21..GLUX199608-199801

GRAY,TRIM1#

main67610-28600-B0iCXR11,21,TCR11,21..G199608-199801

BLUISH GRAY,TRIM1#

main67610-28601-B1iCXR11,21,TCR11,21199801-199912

GRAY,TRIM1#

main67610-28660-B1iCXR10,20,TCR10,20..ATM..X199610-199703

main67610-28670-B0iCXR10,20,TCR10,20..ATM..X199704-199708

main67610-28700-B0iCXR10,20,TCR10,20..ELU199801-199912

BLUE GRAY,TRIM1#

main67610-28760-B1iCXR10,20,TCR10,20..ATM..X199709-199712

main67610-28790-B1iCXR10,20,TCR10,20..ATM..X199804-199912

main67610-95D06-B1iTCR11,21..S199201-199308

LIGHT GRAY,TRIM1#

main67610-95D06-B1iCXR10,20,TCR10..D,F199201-199308

main67610-95D07-B1iCXR10,20,TCR10..D,F199201-199308

LIGHT GRAY,TRIM1#

main67610-95D08-B6iCXR10,20..X;TCR10,20..ATM..X199304-199307

67601ARETAINER(FOR FRONT DOOR TRIM BOARD)

main67771-12050iCXR1#,2#,TCR1#,2#199201-199912

main67771-28030iCXR1#,2#,TCR1#,2#199201-199912

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-28130-B0iCXR11,21,TCR11,21..G199201-199308

LIGHT GRAY,TRIM1#

main67620-28130-E0iCXR11,21,TCR11,21..G199201-199308

LIGHT GREIGE,TRIM4#

main67620-28150-B0iCXR10,20,TCR10,20..X199201-199308

LIGHT GRAY,TRIM1#

main67620-28150-E0iCXR10,20,TCR10,20..X199201-199308

LIGHT GREIGE,TRIM4#

main67620-28151-B1iCXR10,20,TCR10,20..X199408-199501

GRAY,TRIM1#

sub67620-28151

main67620-28151-B2iCXR10,20,TCR10,20..X199308-199408

BLUISH GRAY,TRIM1#

sub67620-28151

main67620-28151-E1iCXR10,20,TCR10,20..X199408-199501

GREIGE,TRIM4#

sub67620-28151

main67620-28151-E2iCXR10,20,TCR10,20..X199308-199408

MI. GREIGE,TRIM4#

sub67620-28151

main67620-28360-B0iCXR10,20..F199308-199501

BLUISH GRAY,TRIM1#

sub67620-28360

main67620-28380-B1iCXR11,21,TCR11,21199308-199408

BLUISH GRAY,TRIM1#

sub67620-28380

main67620-28380-B1iCXR10,20,TCR10,20..ATM..X199408-199412

sub67620-28380

main67620-28380-B3iCXR10,20,TCR10,20..ATM..X199312-199407

sub67620-28380

main67620-28380-B5iCXR1#,2#,TCR1#,2#199408-199608

GRAY,TRIM1#

sub67620-28380

main67620-28380-E0iCXR11,21,TCR11,21199308-199408

MI. GREIGE,TRIM4#

sub67620-28380

main67620-28380-E2iCXR1#,2#,TCR1#,2#199408-199608

GREIGE,TRIM4#

sub67620-28380

main67620-28381-B6iCXR10,20,TCR10,20..AERAS,X,XLUX199608-199912

BLUISH GRAY,TRIM1#

sub67620-28381

main67620-28390-B0iCXR10,20..F199308-199501

sub67620-28390

main67620-28590-B0iCXR11,21,TCR11,21..GLUX199608-199801

GRAY,TRIM1#

main67620-28600-B0iCXR11,21,TCR11,21..G199608-199801

BLUISH GRAY,TRIM1#

main67620-28601-B1iCXR11,21,TCR11,21199801-199912

GRAY,TRIM1#

main67620-28660-B1iCXR10,20,TCR10,20..ATM..X199610-199703

main67620-28670-B0iCXR10,20,TCR10,20..ATM..X199704-199708

main67620-28700-B0iCXR10,20,TCR10,20..ELU199801-199912

BLUE GRAY,TRIM1#

main67620-28760-B1iCXR10,20,TCR10,20..ATM..X199709-199712

main67620-28790-B1iCXR10,20,TCR10,20..ATM..X199804-199912

main67620-95D04-B1iCXR10,20,TCR10..D,F199201-199308

LIGHT GRAY,TRIM1#

main67620-95D04-B1iTCR11,21..S199201-199308

main67620-95D05-B1iCXR10,20,TCR10..D,F199201-199308

LIGHT GRAY,TRIM1#

main67620-95D06-B7iCXR10,20..X;TCR10,20..ATM..X199304-199307

67625ABRACKET, FRONT DOOR TRIM, NO.1

main67625-95D02iCXR1#,2#,TCR1#,2#199201-199912

67626ABRACKET, DOOR TRIM, NO.2

main67626-95D00iCXR1#,2#,TCR1#,2#199201-199912

67653BGRILLE, DOOR HEATER AIR, RH

main67653-28010-B0iTCR1#,2#..AERAS,GLUX,XLUX;CXR1#,2#..AERAS,G,GLUX,X,XLUX199201-199912

main67653-28010-B0iTCR1#,2#..G,X199608-199912

GRAY,TRIM1#

main67653-28010-B1iCXR10,20,TCR10,20..ELU199801-199912

LT.BLUISH GRAY,TRIM1#

main67653-28010-E1iCXR1#,2#..G,GLUX,X,XLUX199201-199608

67654BGRILLE, DOOR HEATER AIR, LH

main67654-28010-B0iTCR1#,2#..G,X199608-199912

GRAY,TRIM1#

main67654-28010-B0iTCR1#,2#..G,X199201-199912

main67654-28010-B1iCXR10,20,TCR10,20..ELU199801-199912

LT.BLUISH GRAY,TRIM1#

main67654-28010-E1iCXR1#,2#..G,GLUX,X,XLUX199201-199608

67701COVER SUB-ASSY, FRONT DOOR TRIM, RH

main67701-28050-B0iCXR10,20,TCR1#,21..D,F,S199201-199501

GRAY,TRIM1#

main67701-28080-B0iCXR1#,2#,TCR1#,2#..G,X199201-199308

GRAY,TRIM1#

sub67701-28080

sub67701-28081

main67701-28080-B2iTCR10,20..ATM;CXR1#,2#,TCR11,21..G,GLUX,X,XLUX199308-199605

BLUISH GRAY,TRIM1#

sub67701-28080

sub67701-28081

main67701-28080-B3iTCR10,20..MTM199308-199510

BLUISH GRAY,TRIM1#

sub67701-28080

sub67701-28081

main67701-28080-E1iCXR1#,2#,TCR1#,2#..G,X199201-199308

GREIGE,TRIM4#

sub67701-28080

sub67701-28081

main67701-28080-E3iCXR1#,2#,TCR1#,2#..G,GLUX,X,XLUX199308-199605

MI. GREIGE,TRIM4#

sub67701-28080

sub67701-28081

main67701-28081-B2iTCR10,20..MTM199510-199912

BLUISH GRAY,TRIM1#

sub67701-28081

main67701-28081-B5iCXR10,20,TCR10,20..ELU199801-199912

LT.BLUISH GRAY,TRIM1#

sub67701-28081

main67701-28081-E3iCXR1#,2#,TCR1#,2#199605-199608

MI,GREIGE,TRIM4#

sub67701-28081

67702COVER SUB-ASSY, FRONT DOOR TRIM, LH

main67702-28050-B0iCXR10,20,TCR1#,21..D,F,S199201-199501

GRAY,TRIM1#

main67702-28080-B0iCXR1#,2#,TCR1#,2#..G,X199201-199308

GRAY,TRIM1#

sub67702-28080

sub67702-28081

main67702-28080-B2iTCR10,20..ATM;CXR1#,2#,TCR11,21..G,GLUX,X,XLUX199308-199605

BLUISH GRAY,TRIM1#

sub67702-28080

sub67702-28081

main67702-28080-B3iTCR10,20..MTM199308-199510

BLUISH GRAY,TRIM1#

sub67702-28080

sub67702-28081

main67702-28080-E1iCXR1#,2#,TCR1#,2#..G,X199201-199308

GREIGE,TRIM4#

sub67702-28080

sub67702-28081

main67702-28080-E3iCXR1#,2#,TCR1#,2#..G,GLUX,X,XLUX199308-199605

MI. GREIGE,TRIM4#

sub67702-28080

sub67702-28081

main67702-28081-B2iTCR10,20..MTM199510-199912

BLUISH GRAY,TRIM1#

sub67702-28081

main67702-28081-B5iCXR10,20,TCR10,20..ELU199801-199912

LT.BLUISH GRAY,TRIM1#

sub67702-28081

main67702-28081-E3iCXR1#,2#,TCR1#,2#199605-199608

MI, GREIGE,TRIM4#

sub67702-28081

67762COVER, FRONT DOOR LOWER TRIM

main67762-28010-B0iCXR10,20,TCR1#,21..D,F,S199201-199501

GRAY,TRIM1#

sub67762-28010

67779CAP, FRONT DOOR TRIM POCKET

main67779-95D00-03iCXR1#,2#,TCR1#,2#199201-199308

GRAY,TRIM1#

sub67779-95D00

main67779-95D00-05iCXR1#,2#,TCR1#,2#..G,X199201-199308

GREIGE,TRIM4#

sub67779-95D00

main67779-95D00-B0iCXR1#,2#,TCR1#,2#..AERAS,F,G,GLUX,X,XLUX199308-199912

GRAY,TRIM1#

sub67779-95D00

main67779-95D00-B1iCXR10,20,TCR10,20..ELU199801-199912

LT.BLUISH GRAY,TRIM1#

sub67779-95D00

main67779-95D00-E2iCXR1#,2#,TCR1#,2#..G,GLUX,X,XLUX199308-199608

GREIGE,TRIM4#

sub67779-95D00

67815DUCT, DOOR VENTILATION, RH

main67815-95D00iCXR1#,2#,TCR1#,2#199201-199912

67825ADUCT, DOOR VENTILATION, LH

main67825-95D00iCXR1#,2#,TCR1#,2#199201-199912

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

main68170-95D01iCXR1#,2#,TCR1#,2#199201-199912

main68220-95D01iCXR1#,2#,TCR1#,2#199201-199912

74201BPANEL SUB-ASSY, FRONT ARMREST, UPPER RH

main74201-28020-B0iCXR11,21,TCR11,21..G199201-199308

GRAY,TRIM1#

main74201-28020-E0iCXR11,21,TCR11,21..G199201-199308

GREIGE,TRIM4#

main74201-28040-B0iCXR10,20,TCR10,20..X199201-199308

GRAY,TRIM1#

main74201-28040-E0iCXR10,20,TCR10,20..X199201-199308

GREIGE,TRIM4#

main74201-28041-B1iCXR10,20,TCR10,20..X199308-199501

GRAY,TRIM1#

main74201-28041-E1iCXR10,20,TCR10,20..X199308-199501

GREIGE,TRIM4#

main74201-28050-B0iCXR11,21,TCR11,21..GLUX199608-199801

BLUISH GRAY,TRIM1#

main74201-28080-B0iCXR11,21,TCR11,21..G199608-199801

BLUISH GRAY,TRIM1#

main74201-28081-B1iCXR11,21,TCR11,21199801-199912

BLUISH GRAY,TRIM1#

main74201-28090-B0iCXR10,20,TCR10,20..AERAS,X,XLUX199608-199912

BLUISH GRAY,TRIM1#

main74201-28100-B0iCXR10,20,TCR10,20..ATM..X199610-199703

main74201-28110-B0iCXR10,20,TCR10,20..ATM..X199704-199708

main74201-28120-C0iCXR10,20,TCR10,20..ELU199801-199912

BLACK,TRIM1#

main74201-28140-B0iCXR10,20,TCR10,20..ATM..X199709-199712

main74201-28150-B0iCXR10,20,TCR10,20..ATM..X199804-199912

main74201-95D00-B0iCXR10,20,TCR1#,21..D,F,S199201-199501

LIGHT GRAY,TRIM1#

main74201-95D01-B3iCXR1#,2#,TCR1#,2#199308-199608

GRAY,TRIM1#

sub74201-95D01

main74201-95D01-B3iCXR10,20,TCR10,20..ATM..X199408-199412

sub74201-95D01

main74201-95D01-B5iCXR10,20,TCR10,20..ATM..X199304-199407

sub74201-95D01

main74201-95D01-E3iCXR1#,2#,TCR1#,2#199308-199608

GREGE,TRIM4#

sub74201-95D01

74202BPANEL SUB-ASSY, FRONT ARMREST, UPPER LH

main74202-28020-B0iCXR11,21,TCR11,21..G199201-199308

GRAY,TRIM1#

main74202-28020-E0iCXR11,21,TCR11,21..G199201-199308

GREIGE,TRIM4#

main74202-28040-B0iCXR10,20,TCR10,20..X199201-199308

GRAY,TRIM1#

main74202-28040-E0iCXR10,20,TCR10,20..X199201-199308

GREIGE,TRIM4#

main74202-28041-B1iCXR10,20,TCR10,20..X199308-199501

GRAY,TRIM1#

main74202-28041-E1iCXR10,20,TCR10,20..X199308-199501

GREIGE,TRIM4#

main74202-28050-B0iCXR11,21,TCR11,21..GLUX199608-199801

BLUISH GRAY,TRIM1#

main74202-28080-B0iCXR11,21,TCR11,21..G199608-199801

BLUISH GRAY,TRIM1#

main74202-28081-B1iCXR11,21,TCR11,21199801-199912

BLUISH GRAY,TRIM1#

main74202-28090-B0iCXR10,20,TCR10,20..AERAS,X,XLUX199608-199912

BLUISH GRAY,TRIM1#

main74202-28100-B0iCXR10,20,TCR10,20..ATM..X199610-199703

main74202-28110-B0iCXR10,20,TCR10,20..ATM..X199704-199708

main74202-28120-C0iCXR10,20,TCR10,20..ELU199801-199912

BLACK,TRIM1#

main74202-28140-B0iCXR10,20,TCR10,20..ATM..X199709-199712

main74202-28150-B0iCXR10,20,TCR10,20..ATM..X199804-199912

main74202-95D00-B0iCXR10,20,TCR1#,21..D,F,S199201-199501

LIGHT GRAY,TRIM1#

main74202-95D01-B3iCXR10,20,TCR10,20..ATM..X199408-199412

sub74202-95D01

main74202-95D01-B3iCXR11,21,TCR11,21199308-199608

GRAY,TRIM1#

sub74202-95D01

main74202-95D01-B5iCXR10,20..X;TCR10,20..ATM..X199304-199407

sub74202-95D01

main74202-95D01-E3iCXR11,21,TCR11,21199308-199608

GREGE,TRIM4#

sub74202-95D01

74697PLUG, DOOR ASSIST GRIP, RH

main74697-28020-B0iCXR1#,2#,TCR1#,2#..AERAS,F,G,GLUX,X,XLUX199401-199912

GRAY,TRIM1#

sub74697-28020

main74697-28020-B1iCXR10,20,TCR10,20..ELU199801-199912

BLUE GRAY,TRIM1#

sub74697-28020

main74697-28020-E0iCXR1#,2#,TCR1#,2#..G,GLUX,X,XLUX199401-199608

GREIGE,TRIM4#

sub74697-28020

main74697-95D00-03iCXR1#,2#,TCR1#,2#199201-199308

GRAY,TRIM1#

sub74697-28020

main74697-95D00-05iCXR1#,2#,TCR1#,2#..G,X199201-199308

GREIGE,TRIM4#

sub74697-28020

main74697-95D00-B0iCXR1#,2#,TCR1#,2#199308-199401

GRAY,TRIM1#

sub74697-28020

main74697-95D00-E1iCXR1#,2#,TCR1#,2#..G,X199308-199401

GREIGE,TRIM4#

sub74697-28020

8121

6777112050WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-12050

6777128020WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-28020

9016840048

main90168-40048

9018906018

main90189-06018

9018906141

main90189-06141

9354016020

main93540-16020

9356016012

main93560-16012

9356815012

main93568-15012

29 parts on this diagram · 2 diagrams in section
