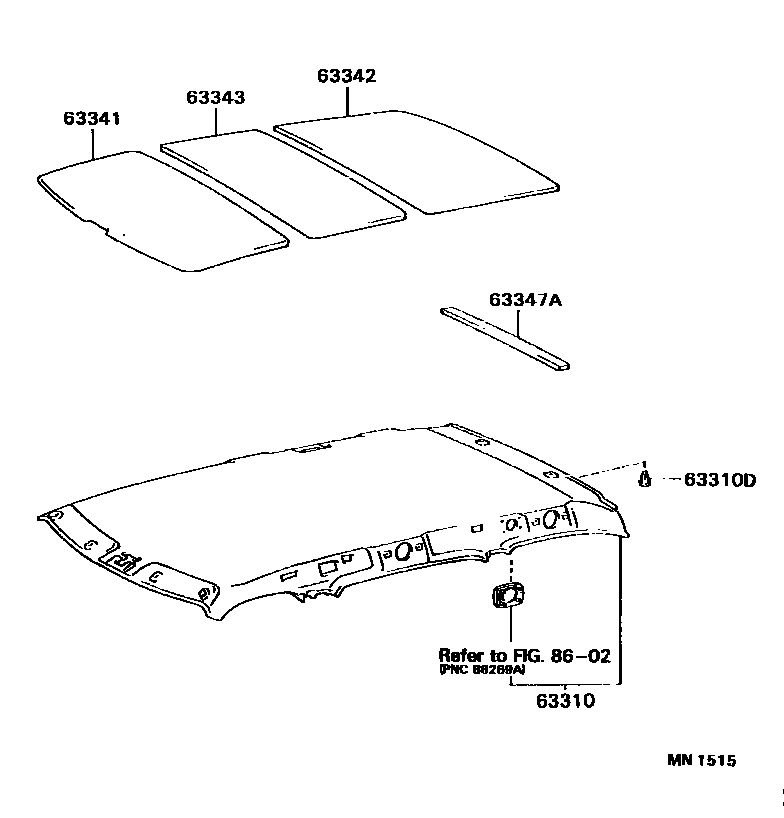

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1 0003 1������ �����-

63310HEADLINING ASSY, ROOF

main63310-28140-B0iCXR11,21,TCR11,21199501-199608

main63310-28140-E0iCXR1#,2#,TCR1#,2#..G,X199201-199501

main63310-28141-B0iCXR11,21,TCR11,21199608-199801

main63310-28142-B1iCXR1#,2#,TCR1#,2#..ELU,G,XLUX199801-199912

main63310-28150-B0iTCR10,20..ATM;CXR1#,2#,TCR11,21199501-199608

main63310-28150-E0iTCR10,20..ATM;CXR1#,2#,TCR11,21199501-199608

main63310-28151-B0iCXR1#,2#,TCR1#,2#..G,GLUX,X,XLUX199608-199801

main63310-28151-B1iCXR1#,2#,TCR1#,2#..ELU,G,X,XLUX199801-199912

main63310-28160-B0iCXR1#,2#,TCR1#,2#..G,S,X199201-199308

main63310-28160-B1iCXR11,21,TCR11,21199501-199608

main63310-28160-E0iCXR1#,2#,TCR1#,2#..G,X199201-199308

main63310-28160-E1iCXR1#,2#,TCR1#,2#..G,X199308-199501

main63310-28161-B1iCXR11,21,TCR11,21199608-199801

main63310-28162-B2iCXR11,21,TCR11,21199801-199912

main63310-28170-B0iCXR1#,2#,TCR1#,2#..G,S,X199201-199308

main63310-28170-B1iCXR1#,2#,TCR1#,2#..G,X199308-199501

main63310-28170-E0iCXR1#,2#,TCR1#,2#..G,X199201-199308

main63310-28170-E1iCXR1#,2#,TCR1#,2#..G,X199308-199501

main63310-28171-B1iCXR11,21,TCR11,21199608-199801

main63310-28171-B2iCXR11,21,TCR11,21199801-199912

main63310-28180-B0iCXR1#,2#,TCR1#,2#..G,S,X199201-199501

main63310-28180-E0iCXR1#,2#,TCR1#,2#..G,X199201-199501

main63310-28181-B0iCXR11,21,TCR11,21199608-199801

main63310-28182-B1iCXR1#,2#,TCR1#,2#..ELU,G,XLUX199801-199912

main63310-28190-B0iTCR10,20..ATM;CXR1#,2#,TCR11,21199501-199608

main63310-28190-E0iTCR10,20..ATM;CXR1#,2#,TCR11,21199501-199608

main63310-28191-B0iCXR1#,2#,TCR1#,2#..G,GLUX,X,XLUX199608-199801

main63310-28191-B1iCXR1#,2#,TCR1#,2#..ELU,G,X,XLUX199801-199912

main63310-28200-B0iCXR1#,2#,TCR1#,2#..G,S,X199201-199308

main63310-28200-B1iCXR1#,2#,TCR1#,2#..G,X199308-199501

main63310-28200-E0iCXR1#,2#,TCR1#,2#..G,X199201-199308

main63310-28200-E1iCXR1#,2#,TCR1#,2#..G,X199308-199501

main63310-28201-B1iCXR11,21,TCR11,21199608-199801

main63310-28202-B2iCXR11,21,TCR11,21199801-199912

main63310-28210-B0iCXR1#,2#,TCR1#,2#..G,S,X199201-199308

main63310-28210-B1iCXR1#,2#,TCR1#,2#..G,X199308-199501

main63310-28210-E0iCXR1#,2#,TCR1#,2#..G,X199201-199308

main63310-28210-E1iCXR1#,2#,TCR1#,2#..G,X199308-199501

main63310-28211-B1iCXR11,21,TCR11,21199608-199801

main63310-28211-B2iCXR11,21,TCR11,21199801-199912

main63310-28370-B0iTCR10,20..ATM;CXR1#,2#,TCR11,21199501-199608

main63310-28370-E0iCXR1#,2#,TCR1#,2#..G,X199308-199501

main63310-28371-B0iCXR1#,2#,TCR1#,2#..G,GLUX,X,XLUX199608-199801

main63310-28371-B1iCXR1#,2#,TCR1#,2#..ELU,G,X,XLUX199801-199912

main63310-28380-B0iTCR10,20..ATM;CXR1#,2#,TCR11,21199501-199608

main63310-28380-E0iTCR10,20..ATM;CXR1#,2#,TCR11,21199501-199608

main63310-28381-B0iCXR1#,2#,TCR1#,2#..G,GLUX,X,XLUX199608-199801

main63310-28381-B1iCXR1#,2#,TCR1#,2#..ELU,G,X,XLUX199801-199912

main63310-28390-B0iCXR1#,2#,TCR1#,2#..G,X199308-199501

main63310-28390-E0iCXR11,21,TCR11,21199501-199608

main63310-28391-B0iCXR11,21,TCR11,21199608-199801

main63310-28391-B1iCXR11,21,TCR11,21199801-199912

main63310-28400-B0iCXR11,21,TCR11,21..G; CXR11,21,TCR11,21..GLUX199501-199608

main63310-28400-E0iCXR11,21,TCR11,21..G; CXR11,21,TCR11,21..GLUX199501-199608

main63310-28401-B0iCXR11,21,TCR11,21199608-199801

main63310-28402-B1iCXR1#,2#,TCR1#,2#..ELU,G,XLUX199801-199912

main63310-28410-B0iCXR11,21,TCR11,21199501-199608

main63310-28410-E0iCXR1#,2#,TCR1#,2#..G,X199308-199501

main63310-28411-B0iCXR11,21,TCR11,21199608-199801

main63310-28411-B1iCXR11,21,TCR11,21199801-199912

main63310-28420-B0iCXR11,21,TCR11,21..G; CXR11,21,TCR11,21..GLUX199501-199608

main63310-28420-E0iCXR11,21,TCR11,21..G; CXR11,21,TCR11,21..GLUX199501-199608

main63310-28421-B0iCXR11,21,TCR11,21199608-199801

main63310-28422-B1iCXR1#,2#,TCR1#,2#..ELU,G,XLUX199801-199912

main63310-28430-B0iCXR1#,2#,TCR1#,2#..G,X199308-199501

main63310-28430-E0iCXR11,21,TCR11,21199501-199608

main63310-28431-B0iCXR11,21,TCR11,21199608-199801

main63310-28432-B1iCXR11,21,TCR11,21199801-199912

main63310-28440-B0iCXR1#,2#,TCR1#,2#..G,X199308-199501

main63310-28440-E0iCXR11,21,TCR11,21199501-199608

main63310-28441-B0iCXR11,21,TCR11,21199608-199801

main63310-28442-B1iCXR11,21,TCR11,21199801-199912

main63310-28570-B0iCXR1#,2#,TCR1#,2#199608-199801

main63310-28570-B1iCXR1#,2#,TCR1#,2#199801-199912

main63310-28580-B0iCXR1#,2#,TCR1#,2#199608-199801

main63310-28580-B1iCXR10,20,TCR10,20..AERAS,ELU,XLUX199801-199912

main63310-28590-B0iCXR11,21,TCR11,21199608-199801

main63310-28590-B1iCXR11,21,TCR11,21199801-199912

main63310-28600-B0iCXR11,21,TCR11,21199608-199801

main63310-28601-B1iCXR1#,2#,TCR1#,2#..ELU,G,XLUX199801-199912

main63310-28610-B0iCXR11,21,TCR11,21199608-199801

main63310-28620-B0iCXR11,21,TCR11,21199608-199801

main63310-28621-B1iCXR1#,2#,TCR1#,2#..ELU,G,XLUX199801-199912

main63310-28630-B0iCXR11,21,TCR11,21199608-199801

main63310-28631-B1iCXR11,21,TCR11,21199801-199912

main63310-28640-B0iCXR11,21,TCR11,21199608-199801

main63310-28641-B1iCXR11,21,TCR11,21199801-199912

main63311-28110-B0iCXR1#,2#,TCR1#,2#..G,S,X199201-199501

main63311-28110-E0iCXR1#,2#,TCR1#,2#..G,X199201-199501

main63311-28111-B0iCXR11,21,TCR11,21..G199608-199801

main63311-28111-B1iCXR11,21,TCR11,21199801-199912

main63311-28120-B0iCXR1#,2#,TCR1#,2#..G,S,X199201-199608

main63311-28120-E0iCXR1#,2#,TCR1#,2#..G,X199201-199608

main63311-28121-B0iCXR1#,2#,TCR1#,2#..G,X199608-199801

main63311-28121-B1iCXR1#,2#,TCR1#,2#..G,X199801-199912

main63311-28130-B0iCXR1#,2#,TCR1#,2#..G,S,X199201-199308

main63311-28130-B1iCXR11,21,TCR11,21..G199501-199608

main63311-28130-E0iCXR1#,2#,TCR1#,2#..G,X199201-199308

main63311-28130-E1iCXR1#,2#,TCR1#,2#..G,X199308-199501

main63311-28131-B1iCXR11,21,TCR11,21..G199608-199801

main63311-28131-B2iCXR11,21,TCR11,21199801-199912

main63311-28140-B0iCXR1#,2#,TCR1#,2#..G,S,X199201-199308

main63311-28140-B1iCXR1#,2#,TCR1#,2#..G,X199308-199501

main63311-28140-E0iCXR1#,2#,TCR1#,2#..G,X199201-199308

main63311-28140-E1iCXR11,21,TCR11,21..G199501-199608

main63311-28141-B1iCXR11,21,TCR11,21..G199608-199801

main63311-28141-B2iCXR11,21,TCR11,21199801-199912

main63311-28150-B0iCXR10,20..D199201-199308

main63311-28160-B0iCXR10,20..D199201-199308

LIGHT GRAY,TRIM1#

main63311-28170-B0iCXR10,20,TCR10..F199201-199501

main63311-28180-B0iCXR10,20,TCR10..F199201-199501

LIGHT GRAY,TRIM1#

main63311-28190-B0iCXR1#,2#,TCR1#,2#..G,S,X199201-199501

main63311-28190-E0iCXR1#,2#,TCR1#,2#..G,X199201-199501

main63311-28191-B0iCXR11,21,TCR11,21..G199608-199801

main63311-28191-B1iCXR11,21,TCR11,21199801-199912

main63311-28200-B0iCXR1#,2#,TCR1#,2#..G,S,X199201-199608

LIGHT GRAY,TRIM1#

main63311-28200-E0iCXR1#,2#,TCR1#,2#..G,X199201-199608

LIGHT GREIGE,TRIM4#

main63311-28201-B0iCXR1#,2#,TCR1#,2#..G,X199608-199801

LIGHT GRAY,TRIM1#

main63311-28201-B1iCXR1#,2#,TCR1#,2#..G,X199801-199912

LT. BLUISH GRAY,TRIM1#

main63311-28210-B0iCXR1#,2#,TCR1#,2#..G,S,X199201-199308

main63311-28210-B1iCXR1#,2#,TCR1#,2#..G,X199308-199501

main63311-28210-E0iCXR1#,2#,TCR1#,2#..G,X199201-199308

main63311-28210-E1iCXR11,21,TCR11,21..G199501-199608

main63311-28211-B1iCXR11,21,TCR11,21..G199608-199801

main63311-28211-B2iCXR11,21,TCR11,21199801-199912

main63311-28220-B0iCXR1#,2#,TCR1#,2#..G,S,X199201-199308

main63311-28220-B1iCXR11,21,TCR11,21..G199501-199608

main63311-28220-E0iCXR1#,2#,TCR1#,2#..G,X199201-199308

main63311-28220-E1iCXR11,21,TCR11,21..G199501-199608

main63311-28221-B1iCXR11,21,TCR11,21..G199608-199801

main63311-28221-B2iCXR11,21,TCR11,21199801-199912

63310DCLIP, ROOF HEADLINING

main90467-11068-03×2iCXR1#,2#,TCR1#,2#199201-199308

LIGHT GRAY,TRIM1#

main90467-11068-05×2iCXR1#,2#,TCR1#,2#..G,X199201-199308

LIGHT GREIGE,TRIM4#

main90467-11068-B1×2iCXR1#,2#,TCR1#,2#199801-199912

LT.GRAY,TRIM1#

main90467-11068-B8×2iCXR1#,2#,TCR1#,2#199308-199801

GRAY,TRIM1#

main90467-11068-L1×2iCXR1#,2#,TCR1#,2#..G,GLUX,X,XLUX199308-199608

GREIGE,TRIM4#

63341PAD, ROOF SILENCER, NO.1

main63341-28020iCXR1#,2#,TCR1#,2#..D,F,G,S,X199201-199912

main63641-28040iCXR11,21,TCR11,21..G; CXR11,21,TCR11,21..GLUX199501-199801

63342PAD, ROOF SILENCER, NO.2

main63342-28010iCXR1#,2#,TCR1#,2#..D,F,G,S,X199201-199912

63343PAD, ROOF SILENCER, NO.3

main63342-28020iCXR1#,2#,TCR1#,2#..D,F,G,S,X199201-199912

63347APAD, ROOF SILENCER, NO.7

main63347-95D00iCXR1#,2#,TCR1#,2#199201-199308

8602SPEAKER

→ Go to FIG 86-02

7 parts on this diagram · 3 diagrams in section
