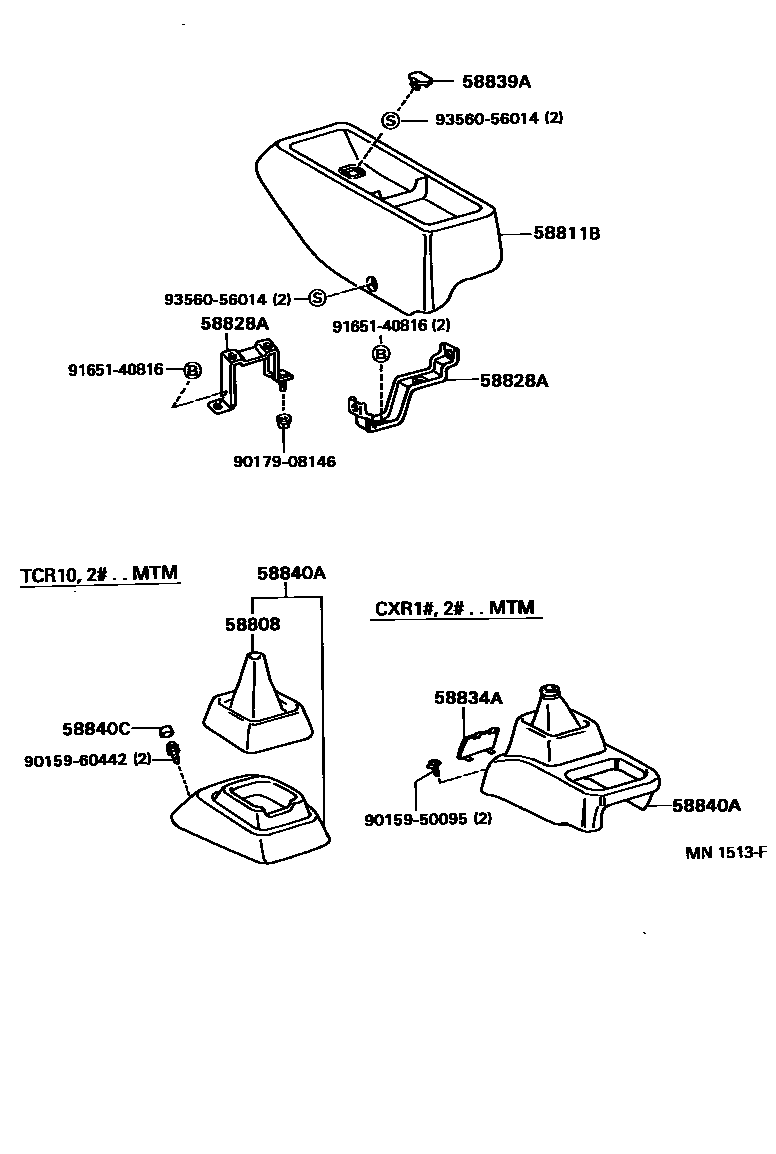

CONSOLE BOX & BRACKET

0001 1 0002 1

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-95D00-03iTCR10,2#..MTM199201-199308

GRAY,TRIM1#

main58808-95D00-05iTCR10,2#..MTM..(G,X)199201-199308

GREIGE,TRIM4#

main58808-95D00-B0iTCR10,20..MTM199308-199608

GRAY,TRIM1#

main58808-95D00-E0iTCR10,20..MTM199308-199608

GREIGE,TRIM4#

58811BBOX, CONSOLE

main58801-28010-B0iCXR10,20,TCR10,20..ELU199801-199912

LT.BLUISH GRAY,TRIM1#

main58801-28010-C0iCXR1#,2#,TCR1#,2#..AERAS,G,GLUX,X,XLUX199608-199912

BLACK,TRIM1#

main58811-28070-B0iCXR1#,2#,TCR1#,2#199201-199501

GRAY,TRIM1#

main58811-28070-E1iCXR1#,2#,TCR1#,2#..G,X199201-199501

GREIGE,TRIM4#

58828ABRACKET, CONSOLE BOX, LOWER

main58828-28010iCXR1#,2#,TCR1#,2#199201-199912

FRONT

main58828-28020iCXR1#,2#,TCR1#,2#199201-199501

REAR

main58828-28070iCXR1#,2#,TCR1#,2#199501-199912

REAR

58834ACOVER, CONSOLE, LOWER

main58834-28010-B0iCXR1#,2#..MTM199201-199908

GRAY,TRIM1#

main58834-28010-E1iCXR1#,2#..MTM..(G,X)199201-199608

GREIGE,TRIM4#

main58834-28020-B0iCXR1#,2#..MTM..(F,G,X)199201-199308

main58834-28020-E0iCXR1#,2#..MTM..(G,X)199201-199308

58839ACOVER, CONSOLE BOX HOLE

main58839-28010-B0×2iCXR1#,2#,TCR1#,2#199201-199501

GRAY,TRIM1#

main58839-28010-E1×2iCXR1#,2#,TCR1#,2#..G,X199201-199501

GREIGE,TRIM4#

main58839-28020-B0iCXR10,20,TCR10,20..ELU199801-199912

LT.BLUISH GRAY,TRIM1#

main58839-28020-C0iCXR1#,2#,TCR1#,2#199501-199608

BLACK,TRIM1#,4#

58840ACOVER ASSY, SHIFTING HOLE

main58840-28010-B0iCXR1#,2#..MTM199201-199308

GRAY,TRIM1#

main58840-28010-E1iCXR1#,2#..MTM..(G,X)199201-199308

GREIGE,TRIM4#

main58840-28011-B0iCXR10,20..MTM199308-199908

GRAY,TRIM1#

main58840-28011-E0iCXR10,20..MTM..X199308-199608

GREIGE,TRIM4#

main58840-95D00-03iTCR10,2#..MTM199201-199308

GRAY,TRIM1#

main58840-95D00-05iTCR10,2#..MTM..(G,X)199201-199308

GREIGE,TRIM4#

main58840-95D00-B0iTCR10,20..MTM199308-199608

GRAY,TRIM1#

main58840-95D00-E2iTCR10,20..MTM199308-199608

GREIGE,TRIM4#

58840CCAP

main90339-12007-03×2iTCR10,2#..MTM199201-199308

LIGHT GRAY,TRIM1#

main90339-12007-05×2iTCR10,2#..MTM..(G,X)199201-199308

LIGHT GREIGE,TRIM4#

main90339-12007-B1iTCR10,20..MTM199501-199608

GRAY,TRIM1#

main90339-12007-E2×2iTCR10,20..MTM199308-199501

GREIGE,TRIM4#

9015950095

main90159-50095

9015960442

main90159-60442

9017908146

main90179-08146

9165140816

main91651-40816

9356056014

main93560-56014

12 parts on this diagram · 2 diagrams in section
