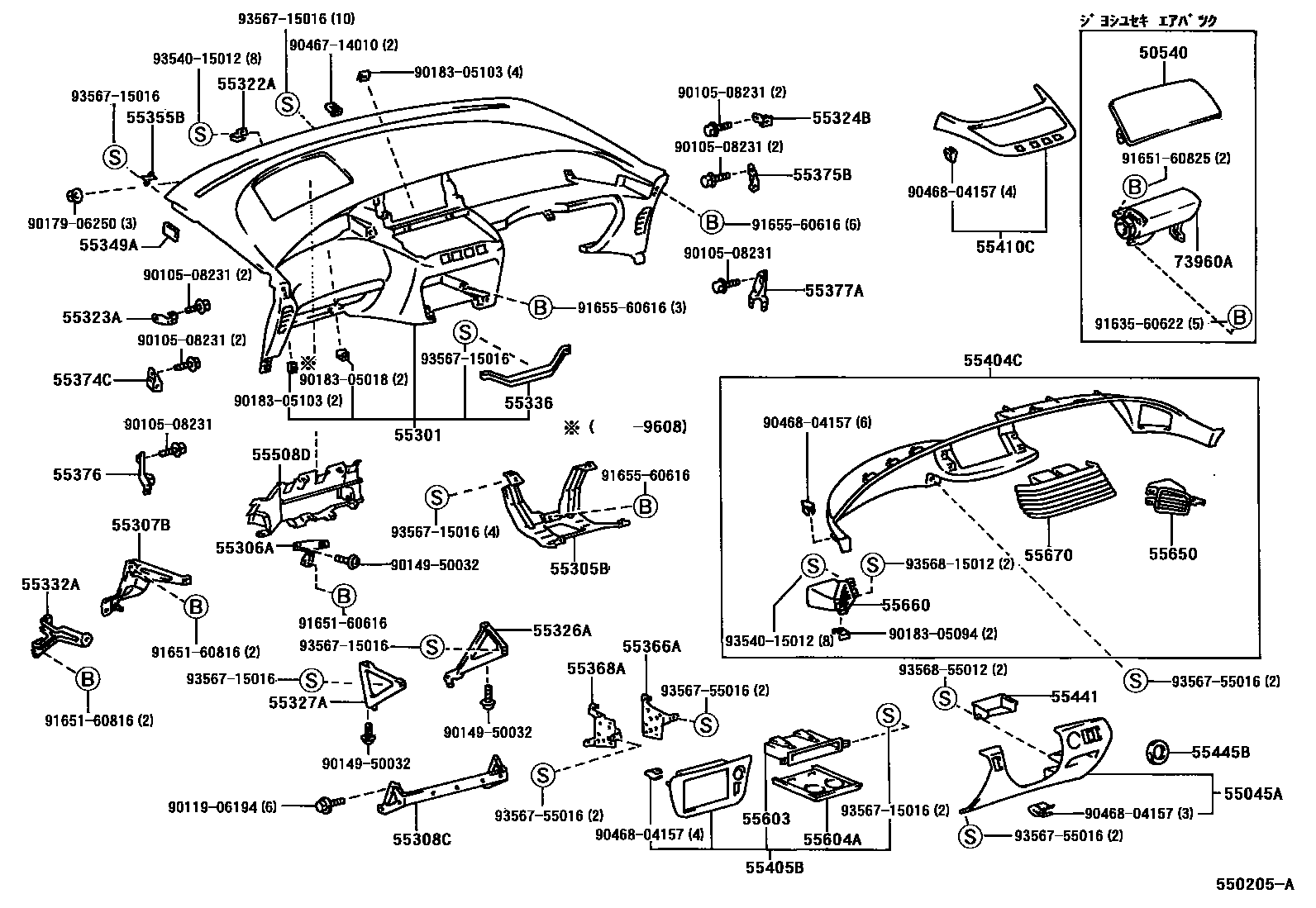

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1

50540DO0R ASSY, AIRBAG PASSENGER

main50540-28020-B0iCXR1#,2#,TCR1#,2#199608-199801

GRAY,TRIM1#

main50540-28021-B0iCXR1#,2#,TCR1#,2#..AERAS,G,X,XLUX199801-199912

GRAY,TRIM1#

main50540-28021-B1iCXR10,20,TCR10,20..ELU199801-199912

BLUE GRAY,TRIM1#

55045APANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER RH

main55045-28010-B0iCXR1#,2#,TCR1#,2#..AERAS,D,F,G,GLUX,S,X,XLUX199201-199912

GRAY,TRIM1#

main55045-28010-B1iCXR10,20,TCR10,20..ELU199801-199912

BLUE GRAY,TRIM1#

main55045-28010-E1iCXR1#,2#,TCR1#,2#..G,GLUX,X,XLUX199201-199608

GREIGE,TRIM4#

55301PANEL SUB-ASSY, INSTRUMENT

main55301-28090-B0iCXR10,20,TCR1#,2#..D,F,S,X199201-199608

GRAY,TRIM1#

main55301-28090-E0iCXR10,20,TCR10,20..X199201-199608

GREIGE,TRIM4#

main55301-28100-B0iCXR11,21,TCR11,21..G199201-199308

GRAY,TRIM1#

main55301-28100-E0iCXR10,20,TCR10,20..XLUX199501-199608

GREIGE,TRIM4#

main55301-28110-B0iCXR10,20,TCR10,20..X199308-199501

main55301-28110-E0iCXR10,20,TCR10,20..X199308-199501

main55301-28130-B0iCXR10,20,TCR1#,2#..S,X199201-199501

main55301-28130-E0iCXR10,20,TCR10,20..X199201-199501

main55301-28180-B0iCXR10,20,TCR10,20..AERAS,X199608-199912

GRAY,TRIM1#

main55301-28190-B0iCXR10,20,TCR10,20..XLUX199608-199912

GRAY,TRIM1#

main55301-28200-B0iCXR10,20,TCR10,20..XLUX199801-199912

main55301-28200-B1iCXR10,20,TCR10,20..ELU199801-199912

BLUE GRAY,TRIM1#

main55301-28270-B0iCXR10,20,TCR10,20..ATM..(AERAS,X)199801-199912

55305BREINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, NO.1

main55305-28050iCXR1#,2#,TCR1#,2#199201-199912

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-28050iCXR1#,2#,TCR1#,2#199201-199608

55307BREINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, LH

main55307-28010iCXR10,20,TCR10,20; CXR11,21,TCR11,21199201-199308

main55307-28020iCXR1#,2#,TCR1#,2#..D,F,G,S,X,XLUX199201-199608

main55307-28060iCXR1#,2#,TCR1#,2#199608-199912

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-28010iCXR1#,2#,TCR1#,2#199201-199912

55322ABRACKET, INSTRUMENT PANEL, NO.2

main55322-28030×8iCXR1#,2#,TCR1#,2#199201-199912

55323ABRACKET, INSTRUMENT PANEL, NO.3

main55323-95D00iCXR1#,2#,TCR1#,2#199201-199912

55324BBRACKET, INSTRUMENT PANEL, NO.4

main55324-95D00iCXR1#,2#,TCR1#,2#199201-199912

55326ASTAY, INSTRUMENT PANEL, NO.1

main55303-28040iCXR1#,2#,TCR1#,2#199608-199912

main55326-28030iCXR1#,2#,TCR1#,2#199201-199608

55327ASTAY, INSTRUMENT PANEL, NO.2

main55304-28010iCXR1#,2#,TCR1#,2#199201-199912

55332AREINFORCEMENT, INSTRUMENT PANEL, NO.2

main55309-28020iCXR10,20,TCR10,20; CXR11,21,TCR11,21199201-199308

main55309-28030iCXR1#,2#,TCR1#,2#199608-199912

main55332-28070iCXR1#,2#,TCR1#,2#..D,F,G,S,X,XLUX199201-199608

55336REINFORCEMENT, INSTRUMENT PANEL, LOWER CENTER

main55336-28010iCXR1#,2#,TCR1#,2#199201-199912

55349ACUSHION, INSTRUMENT PANEL

main55349-28010×2iCXR1#,2#,TCR1#,2#199201-199912

55355BPLATE, INSTRUMENT PANEL, RH

main55355-28010×2iCXR1#,2#,TCR1#,2#199201-199912

55366ABRACKET, RADIO MOUNTING, NO.1

main55366-28040iCXR1#,2#,TCR1#,2#199201-199907

main55366-28110iCXR1#,2#,TCR1#,2#199907-199912

55368ABRACKET, RADIO MOUNTING, NO.2

main55368-28040iCXR1#,2#,TCR1#,2#199201-199912

55374CBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1

main55374-95D00iCXR1#,2#,TCR1#,2#199201-199912

55375BBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2

main55375-95D00iCXR1#,2#,TCR1#,2#199201-199912

55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1

main55376-95D00iCXR1#,2#,TCR1#,2#199201-199912

55377ABRACKET, INSTRUMENT PANEL MOUNTING, NO.2

main55377-95D00iCXR1#,2#,TCR1#,2#199201-199912

55404CPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2

main55404-28030iCXR1#,2#,TCR1#,2#199201-199501

main55404-28100iCXR1#,2#,TCR1#,2#199501-199608

main55404-28120iCXR1#,2#,TCR1#,2#199608-199801

main55404-28170iCXR10,20,TCR10,20..ATM..X199804-199912

main55404-28180iCXR10,20,TCR10,20..ELU199801-199912

main55404-28310iCXR1#,2#,TCR1#,2#..G,XLUX199901-199912

55405BPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER

main55405-28040iCXR1#,2#,TCR1#,2#199201-199801

main55405-28170iCXR10,20,TCR10,20..AERAS,X,XLUX199801-199912

main55405-28180iCXR10,20,TCR10,20..ATM..X199804-199912

main55405-28190iCXR10,20,TCR10,20..ELU199801-199912

55410CPANEL ASSY, INSTRUMENT CLUSTER FINISH

main55410-28010iCXR10,20,TCR1#,2#..AERAS,D,F,S,X199201-199912

main55410-28020iCXR10,20,TCR10,20..XLUX199801-199912

main55410-28030iCXR10,20,TCR1#,2#..AERAS,D,F,S,X199201-199912

main55410-28050iCXR10,20,TCR10,20..ATM..X199608-199912

main55410-28060iCXR10,20,TCR10,20..ATM..X199608-199912

main55410-28070iCXR10,20,TCR10,20..XLUX199608-199912

main55410-28080iCXR11,21,TCR11,21199801-199912

main55410-28090iCXR10,20,TCR10,20..ELU199801-199912

main55410-28110iCXR10,20,TCR10,20..ATM..X199804-199912

main55410-28170iCXR1#,2#,TCR1#,2#..G,XLUX199901-199912

55441BOX, INSTRUMENT PANEL

main55441-28010iCXR1#,2#,TCR1#,2#199201-199912

55445BPLATE, INSTRUMENT PANEL FINISH

main55445-20150iCXR10,20,TCR10..D,F199201-199501

main55445-95D00iCXR1#,2#,TCR1#,2#..AERAS,ELU,G,GLUX,S,X,XLUX199201-199912

55508DINSERT SUB-ASSY, AIRBAG DOOR, NO.1

main55508-28010iCXR1#,2#,TCR1#,2#199608-199912

55603CASE SUB-ASSY, INSTRUMENT PANEL CUP HOLDER

main55603-28010iCXR1#,2#,TCR1#,2#199201-199801

main55603-28020iCXR1#,2#,TCR1#,2#199801-199912

55604AHOLDER SUB-ASSY, INSTRUMENT PANEL CUP

main55604-28020iCXR1#,2#,TCR1#,2#199201-199801

main55604-28030iCXR1#,2#,TCR1#,2#199801-199912

main55604-28040iCXR1#,2#,TCR1#,2#199801-199912

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-28040iCXR1#,2#,TCR1#,2#199201-199912

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-28040iCXR1#,2#,TCR1#,2#199201-199608

main55660-28080iCXR1#,2#,TCR1#,2#199608-199912

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-28030iCXR1#,2#,TCR1#,2#199201-199501

main55670-28060iCXR1#,2#,TCR1#,2#199501-199801

main55670-28070iCXR11,21,TCR11,21199801-199912

main55670-28080iCXR10,20,TCR10,20..ELU199801-199912

main55670-28090iCXR1#,2#,TCR1#,2#..G,XLUX199901-199912

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-28010iCXR1#,2#,TCR1#,2#199608-199801

main73960-28011iCXR1#,2#,TCR1#,2#199801-199912

9010508231

main90105-08231

9011906194

main90119-06194

9014950032

main90149-50032

9017906250

main90179-06250

9018305018

main90183-05018

9018305094

main90183-05094

9018305103

main90183-05103

9046714010

main90467-14010

9046804157

main90468-04157

9163560622

main91635-60622

9165160616

main91651-60616

9165160816

main91651-60816

9165160825

main91651-60825

9165560616

main91655-60616

9354015012

main93540-15012

9356715016

main93567-15016

9356755016

main93567-55016

9356815012

main93568-15012

9356855012

main93568-55012

53 parts on this diagram · 2 diagrams in section
