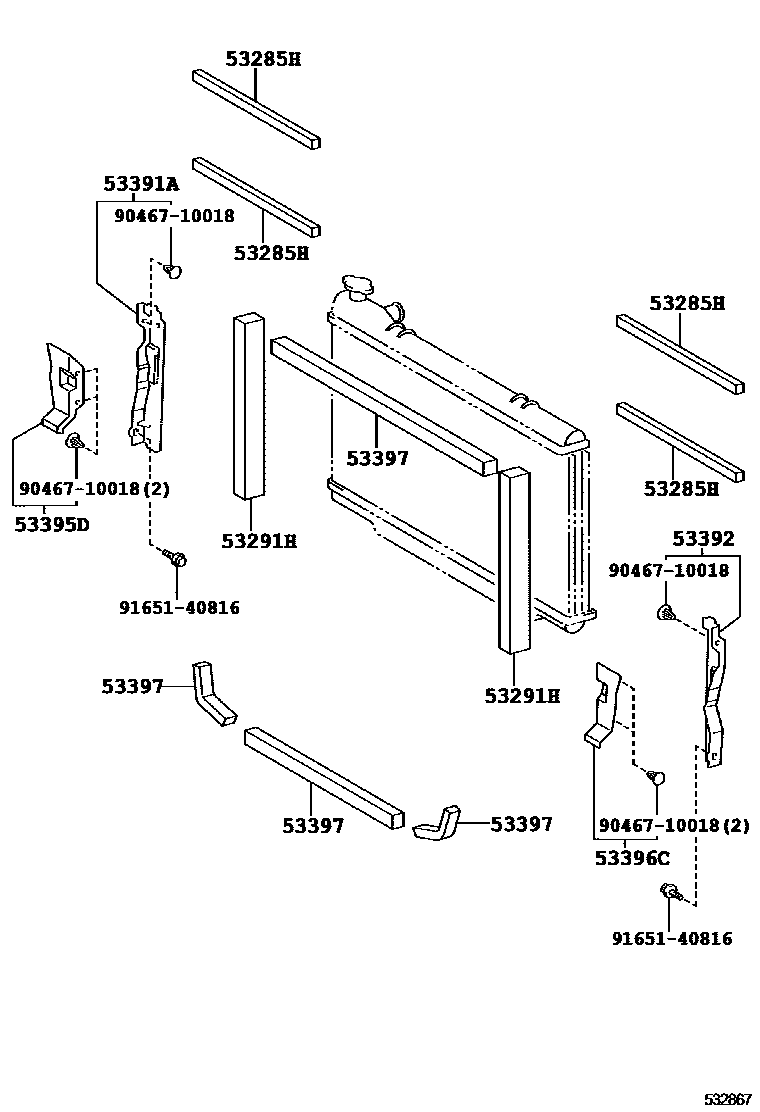

RADIATOR SUPPORT & WIND GUIDE

53285HSEAL, RADIATOR SIDE AIR, NO.1

main53285-28010×4iCXR1#,2#,TCR1#,2#199201-199301

main53285-28011×4iCXR1#,2#,TCR1#,2#199301-199912

53291HSEAL, RADIATOR SUPPORT

main53291-95D00×2iCXR1#,2#,TCR1#,2#199201-199912

53391ABRACKET, RADIATOR SEAL, RH

main53391-28010iCXR1#,2#,TCR1#,2#199201-199912

53392BRACKET, RADIATOR SEAL, LH

main53392-28010iCXR1#,2#,TCR1#,2#199201-199912

53395DSEAL, RADIATOR, RH

main53395-28010iCXR1#,2#,TCR1#,2#199201-199501

EMINA

main53395-28020iCXR1#,2#,TCR1#,2#199201-199501

LUCIDA

main53395-28050iCXR1#,2#,TCR1#,2#199608-199912

main53395-28060iCXR1#,2#,TCR1#,2#199501-199608

53396CSEAL, RADIATOR, LH

main53396-28010iCXR1#,2#,TCR1#,2#199201-199501

EMINA

main53396-28020iCXR1#,2#,TCR1#,2#199201-199501

LUCIDA

main53396-28040iCXR1#,2#,TCR1#,2#199608-199912

main53396-28050iCXR1#,2#,TCR1#,2#199501-199608

53397SEAL, RADIATOR, UPPER

main53397-28010iCXR1#,2#,TCR1#,2#199201-199301

main53397-28011iCXR1#,2#,TCR1#,2#199301-199912

main53397-28020×2iCXR1#,2#,TCR1#,2#199201-199301

L=70

main53397-28021×2iCXR1#,2#,TCR1#,2#199301-199912

L=70

main53397-95D00iCXR1#,2#,TCR1#,2#199201-199912

9046710018

main90467-10018

9165140816

main91651-40816

9 parts on this diagram · 1 diagram in section
