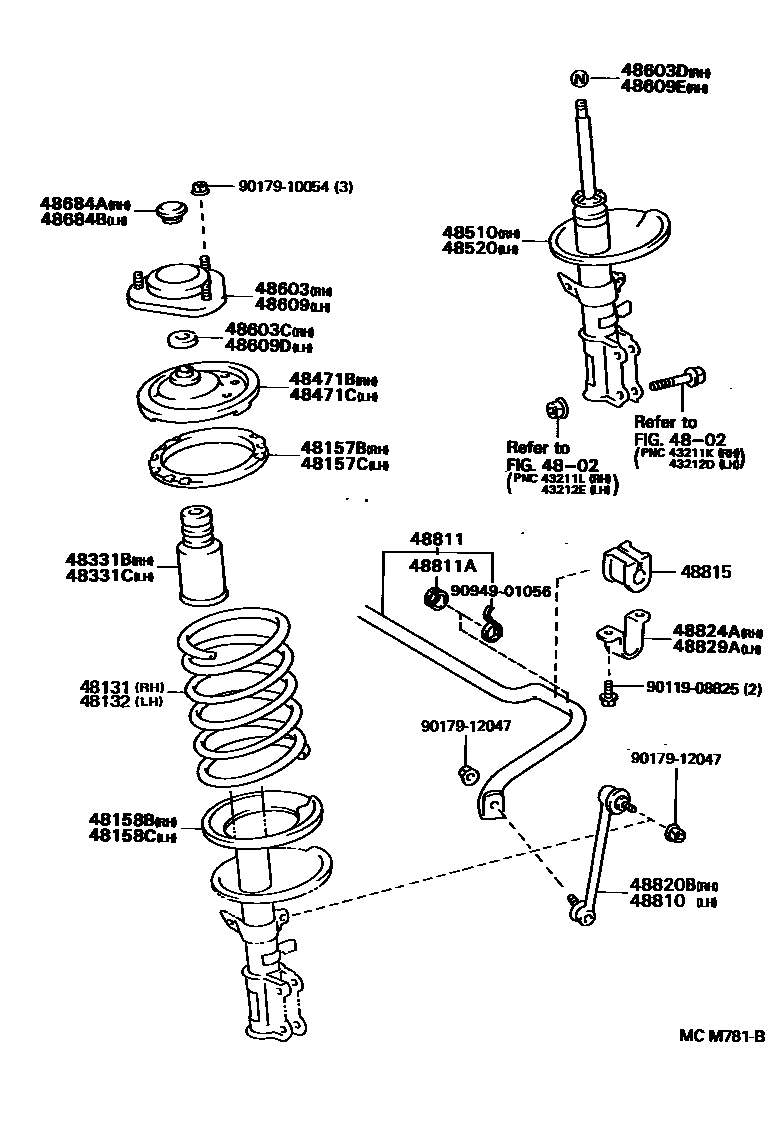

FRONT SPRING & SHOCK ABSORBER

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

48131SPRING, FRONT COIL, RH

main48131-28300iTCR10..F199201-199308

main48131-28310iCXR10..D;TCR10..X199201-199308

main48131-28320iCXR10..MTM..X;CXR10,TCR11..F,G,S; TCR10..ATM..X199201-199308

main48131-28330iCXR11..MTM;CXR10..ATM..X; TCR11..G;CXR10..MTM..X199201-199308

main48131-28340iCXR11..ATM; CXR11..MTM199201-199308

main48131-28360iTCR10..F;CXR10..MTM..D199201-199308

main48131-28370iTCR10..ATM..X; TCR10..XLUX; TCR11;CXR10..MTM199501-199912

main48131-28380iTCR10..ATM..X;CXR10,TCR11..ATM..(F,S); TCR10..MTM..X199201-199308

main48131-28390iCXR10..ATM..X; CXR10..XLUX; CXR11;TCR20..MTM199501-199908

main48131-28400iCXR11..GLUX199501-199801

main48131-28410iCXR20,TCR21; TCR20..ATM..X; TCR20..XLUX199501-199912

main48131-28430iCXR20..X;TCR21..ATM..G; TCR21..S;TCR20..ATM;TCR21..MTM..G199201-199501

main48131-28450iCXR21..GLUX199501-199801

main48131-28470iCXR21199201-199501

48132SPRING, FRONT COIL, LH

main48131-28310iTCR10..F199201-199308

main48131-28320iCXR10..D;TCR10..X199201-199308

main48131-28330iCXR10..MTM..X;CXR10,TCR11..F,G,S; TCR10..ATM..X199201-199308

main48131-28340iCXR11..MTM;CXR10..ATM..X; TCR11..G;CXR10..MTM..X199201-199308

main48131-28350iCXR11..ATM; CXR11..MTM199201-199308

main48131-28370iTCR10..F;CXR10..MTM..D199201-199308

main48131-28380iTCR1#199501-199912

main48131-28390iTCR10..ATM..X;CXR10,TCR11..ATM..(F,S); TCR10..MTM..X199201-199308

main48131-28400iCXR10..ATM..X; TCR11;CXR10..MTM..X199308-199501

main48131-28410iCXR10..X..TD;CXR10..ATM..X..TDEFI; CXR20..D;TCR20..MTM;CXR11..TDEFI199201-199501

main48131-28430iTCR2#..ATM199501-199912

main48131-28450iTCR21..ATM..S;TCR21..MTM..G199201-199308

main48131-28470iCXR2#..G,X; CXR2#..GLUX,XLUX199501-199908

main48131-28480iCXR21..ATM199201-199308

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-28010iCXR1#,2#,TCR1#,2#199201-199912

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-28010iCXR1#,2#,TCR1#,2#199201-199912

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-28010iCXR1#,2#,TCR1#,2#199201-199912

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-28010iCXR1#,2#,TCR1#,2#199201-199912

48331BBUMPER, FRONT SPRING, RH

main48304-28010iCXR1#,TCR1#199201-199308

main48304-28020iCXR1#,TCR1#; CXR2#,TCR2#199201-199308

48331CBUMPER, FRONT SPRING, LH

main48304-28010iCXR1#,TCR1#199201-199308

main48304-28020iCXR1#,TCR1#; CXR2#,TCR2#199201-199308

48471BSEAT, FRONT COIL SPRING, UPPER RH

main48044-28010iCXR1#,2#,TCR1#,2#199201-199912

48471CSEAT, FRONT COIL SPRING, UPPER LH

main48044-28010iCXR1#,2#,TCR1#,2#199201-199912

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-28040iCXR10,20,TCR10,20199201-199912

main48510-28050iCXR11,21,TCR11,21199201-199912

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-28040iCXR10,20,TCR10,20199201-199912

main48520-28050iCXR11,21,TCR11,21199201-199912

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-28010iCXR1#,2#,TCR1#,2#199201-199912

48603CSEAL, DUST(FOR FRONT SUSPENSION SUPPORT RH)

main90303-22049iCXR1#,2#,TCR1#,2#199201-199912

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main94182-11400iCXR1#,2#,TCR1#,2#199201-199912

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-28010iCXR1#,2#,TCR1#,2#199201-199912

48609DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT LH)

main90303-22049iCXR1#,2#,TCR1#,2#199201-199912

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main94182-11400iCXR1#,2#,TCR1#,2#199201-199912

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-32010iCXR1#,2#,TCR1#,2#199201-199912

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-32010iCXR1#,2#,TCR1#,2#199201-199912

48810LINK ASSY, FRONT STABILIZER, LH

main48810-28010iCXR1#,2#,TCR1#,2#199201-199512

main48810-28020iCXR1#,2#,TCR1#,2#199512-199912

48811BAR, STABILIZER, FRONT

main48811-28110iCXR21,TCR21199308-199407

main48811-28111iCXR21,TCR21199407-199912

main48811-28130iCXR10,TCR10199201-199308

main48811-28131iCXR1#,20,TCR1#,20199407-199912

48811ABUSH(FOR FRONT STABILIZER BAR)

main90385-26002×2iCXR11,2#,TCR11,2#199201-199202

main90385-26003×2iCXR10,TCR10199201-199308

main90385-27001×2iCXR11,2#,TCR11,2#199202-199308

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-28050×2iCXR11,2#,TCR11,2#199201-199308

main48815-28051×2iCXR21,TCR21199407-199912

main48815-28060×2iCXR10,TCR10199201-199308

main48815-28061×2iCXR1#,20,TCR1#,20199407-199912

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-28010iCXR1#,2#,TCR1#,2#199201-199512

main48820-28030iCXR1#,2#,TCR1#,2#199512-199912

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-28090iCXR1#,2#,TCR1#,2#199201-199912

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48824-28090iCXR1#,2#,TCR1#,2#199201-199912

9011908825

main90119-08825

9017910054

main90179-10054

9017912047

main90179-12047

9094901056

main90949-01056

32 parts on this diagram · 1 diagram in section
