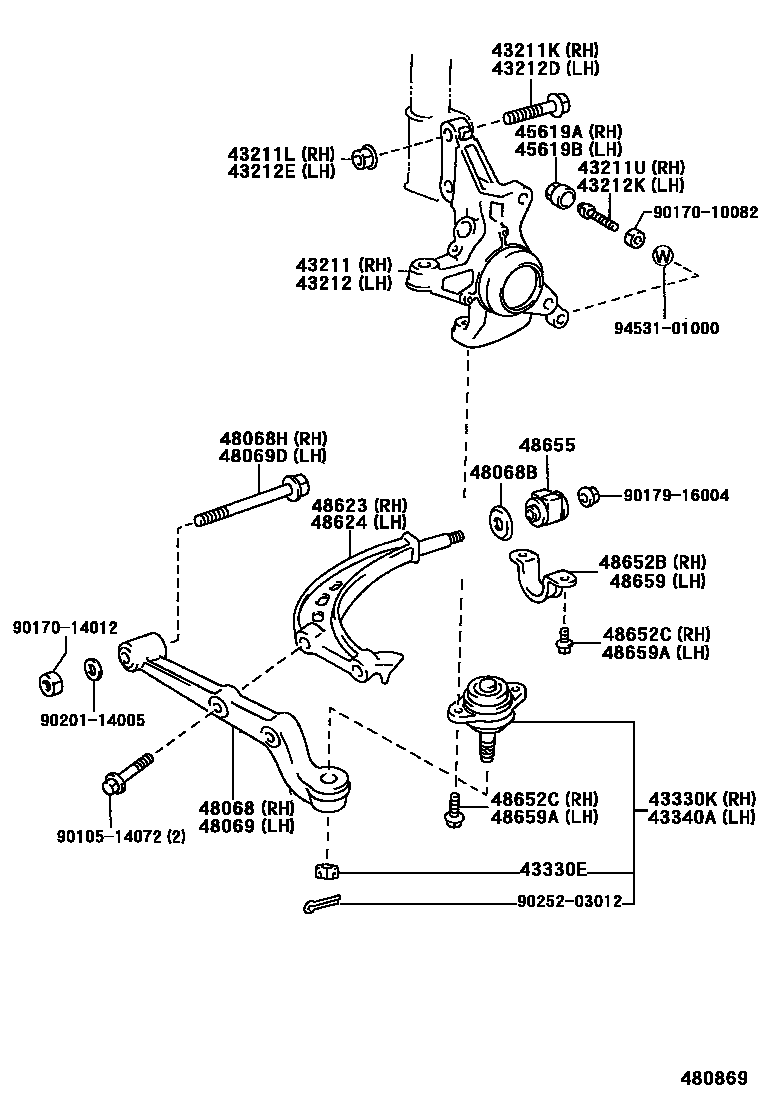

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-28040iCXR1#,2#,TCR1#,2#199201-199608

main43211-28050iCXR11,21,TCR11,21..G199201-199308

main43211-28050iTCR11,21..S199201-199608

main43211-28050iCXR1#,2#,TCR1#,2#199608-199912

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-17002iCXR1#,2#,TCR1#,2#199201-199912

43211LNUT (FOR STEERING KNUCKLE RH)

main90179-17001iCXR1#,2#,TCR1#,2#199201-199912

43211UBOLT, ROUND HEXAGON (FOR STEERING KNUCKLE RH)

main90106-10032iCXR1#,2#,TCR1#,2#199201-199912

43212KNUCKLE, STEERING, LH

main43212-28020iCXR1#,2#,TCR1#,2#199201-199608

main43212-28030iCXR11,21,TCR11,21..G199201-199308

main43212-28030iTCR11,21..S199201-199608

main43212-28030iCXR1#,2#,TCR1#,2#199608-199912

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-17002iCXR1#,2#,TCR1#,2#199201-199912

43212ENUT (FOR STEERING KNUCKLE LH)

main90179-17001iCXR1#,2#,TCR1#,2#199201-199912

43212KBOLT, ROUND HEXAGON (FOR STEERING KNUCKLE LH)

main90106-10032iCXR1#,2#,TCR1#,2#199201-199912

43330ENUT, CASTLE (FOR FRONT LOWER BALL JOINT SETTING)

main94146-71600iCXR1#,2#,TCR1#,2#199201-199912

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-29235iCXR1#,2#,TCR1#,2#199201-199912

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43330-29235iCXR1#,2#,TCR1#,2#199201-199912

45619ACOVER, STEERING KNUCKLE STOPPER, RH

main45619-14020iCXR1#,2#,TCR1#,2#199201-199912

45619BCOVER, STEERING KNUCKLE STOPPER, LH

main45619-14020iCXR1#,2#,TCR1#,2#199201-199912

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-28050iCXR1#,2#,TCR1#,2#199201-199912

48068BRETAINER, CUSHION(FOR FRONT SUSPENSION LOWER ARM)

main90948-02090iCXR1#,2#,TCR1#,2#199201-199912

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90105-14073iCXR1#,2#,TCR1#,2#199201-199912

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-28050iCXR1#,2#,TCR1#,2#199201-199912

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90105-14073iCXR1#,2#,TCR1#,2#199201-199912

48623ARM, FRONT SUSPENSION, LOWER NO.2 RH

main48623-28040iCXR1#,2#,TCR1#,2#199201-199912

48624ARM, FRONT SUSPENSION, LOWER NO.2 LH

main48624-28030iCXR1#,2#,TCR1#,2#199201-199912

48652BBRACKET, FRONT LOWER ARM, RH

main48652-20040iCXR1#,2#,TCR1#,2#199201-199912

48652CBOLT(FOR FRONT LOWER ARM BRACKET RH)

main90105-12142iCXR1#,2#,TCR1#,2#199201-199912

48655BUSH, LOWER ARM, NO.2

main48655-28010iCXR1#,2#,TCR1#,2#199201-199912

48659BRACKET, FRONT LOWER ARM, LH

main48652-20040iCXR1#,2#,TCR1#,2#199201-199912

48659ABOLT(FOR FRONT LOWER ARM BRACKET LH)

main90105-12142iCXR1#,2#,TCR1#,2#199201-199912

9010514072

main90105-14072

9017010082

main90170-10082

9017014012

main90170-14012

9017916004

main90179-16004

9020114005

main90201-14005

9025203012

main90252-03012

9453101000

main94531-01000

32 parts on this diagram · 1 diagram in section
