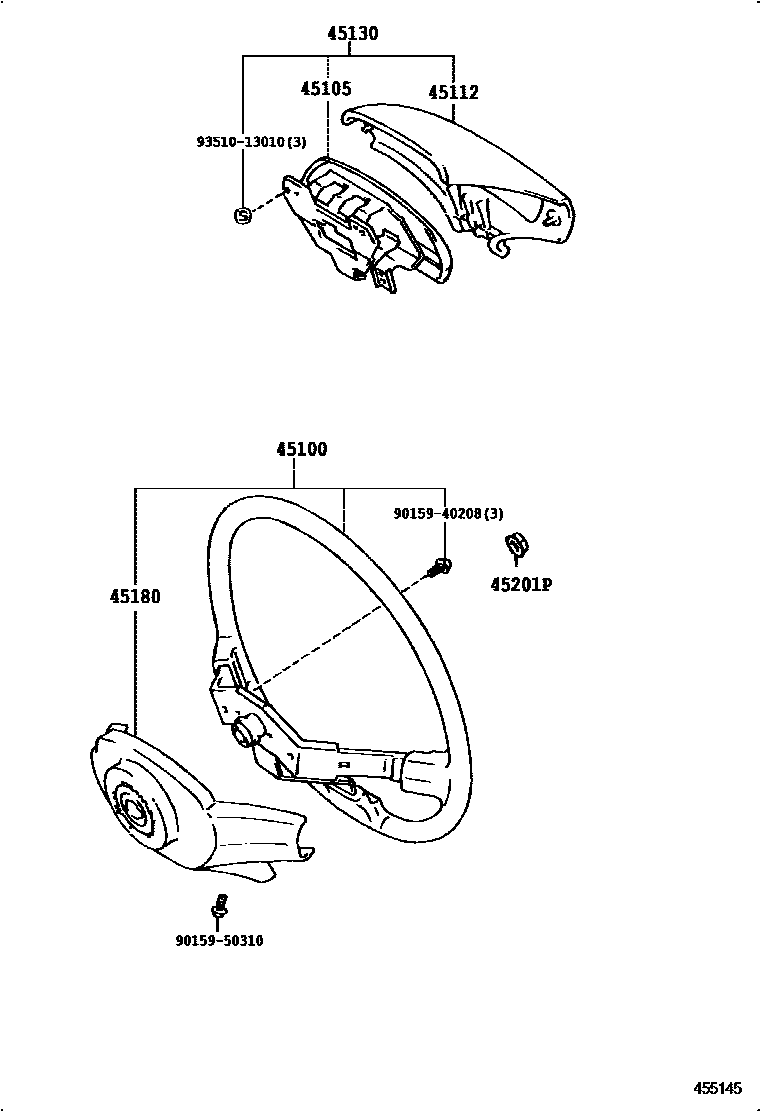

STEERING WHEEL

0001 1 0002 1��(*80) 0003 1��(*80)

45100WHEEL ASSY, STEERING

main45100-28070-B0iCXR1#,2#,TCR1#,2#199201-199308

main45100-28070-E1iCXR1#,2#,TCR1#,2#..G,X199201-199308

main45100-28090-B0iCXR1#,2#,TCR1#,2#199201-199608

main45100-28090-E1iCXR1#,2#,TCR1#,2#..G,GLUX,X,XLUX199201-199608

main45100-28130-B0iCXR1#,2#,TCR1#,2#199308-199508

main45100-28130-E0iCXR1#,2#,TCR1#,2#..G,GLUX,X,XLUX199308-199508

main45100-28131-B0iTCR10,20..ATM..(AERAS,X);CXR10,20,TCR11,21..AERAS,G; TCR10,20..MTM;TCR1#,2#..GLUX,XLUX;CXR1#,2#..G,GLUX,X,XLUX199508-199912

main45100-28131-E0iCXR1#,2#;TCR10,20..MTM;TCR1#,2#..GLUX,XLUX; TCR1#,2#..ATM..(G,X)199508-199608

main45100-28150-B1iCXR10,20,TCR10,20..ELU199801-199912

45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1

main45105-28040iCXR1#,2#,TCR1#,2#199201-199605

main45105-28041iCXR1#,2#,TCR1#,2#199605-199608

main45105-28100iCXR1#,2#,TCR1#,2#199308-199608

45112PAD, STEERING WHEEL

main45112-28070-B0iCXR1#,2#,TCR1#,2#199201-199608

GRAY,TRIM1#

main45112-28070-E0iCXR1#,2#,TCR1#,2#..G,GLUX,X,XLUX199201-199608

GREIGE,TRIM4#

45130BUTTON ASSY, HORN

main45130-28170-B0iCXR1#,2#,TCR1#,2#199201-199308

main45130-28170-E1iCXR1#,2#,TCR1#,2#..G,X199201-199308

main45130-28180-B0iCXR1#,2#,TCR1#,2#199201-199608

GRAY,TRIM1#

main45130-28180-E1iCXR1#,2#,TCR1#,2#..G,GLUX,X,XLUX199201-199608

GREIGE,TRIM4#

main45130-28300-B0iCXR1#,2#,TCR1#,2#199308-199508

main45130-28300-E0iCXR1#,2#,TCR1#,2#..G,GLUX,X,XLUX199308-199508

main45130-28301-B0iCXR1#,2#,TCR1#,2#; CXR10,20,TCR10,20..ATM..X199508-199608

main45130-28301-E0iCXR1#,2#,TCR1#,2#199508-199608

main45130-28340-B0iCXR1#,2#,TCR1#,2#199608-199801

BLUISH GRAY,TRIM1#

main45130-28380-B0iCXR1#,2#,TCR1#,2#..AERAS,G,X,XLUX199801-199912

BLUISH GRAY,TRIM1#

main45130-28380-B1iCXR10,20,TCR10,20..ELU199801-199912

DK.BLUE GRAY,TRIM1#

45180COVER SUB-ASSY, STEERING WHEEL

main45180-28040-B0iCXR1#,2#,TCR1#,2#199201-199608

GRAY,TRIM1#

main45180-28040-E0iCXR1#,2#,TCR1#,2#..G,GLUX,X,XLUX199201-199608

GREIGE,TRIM4#

45201PNUT, STEERING WHEEL SET

main90179-12071iCXR1#,2#,TCR1#,2#199306-199912

main90179-12086iCXR1#,2#,TCR1#,2#199201-199306

9015940208

main90159-40208

9015950310

main90159-50310

9351013010

main93510-13010

9 parts on this diagram · 3 diagrams in section
