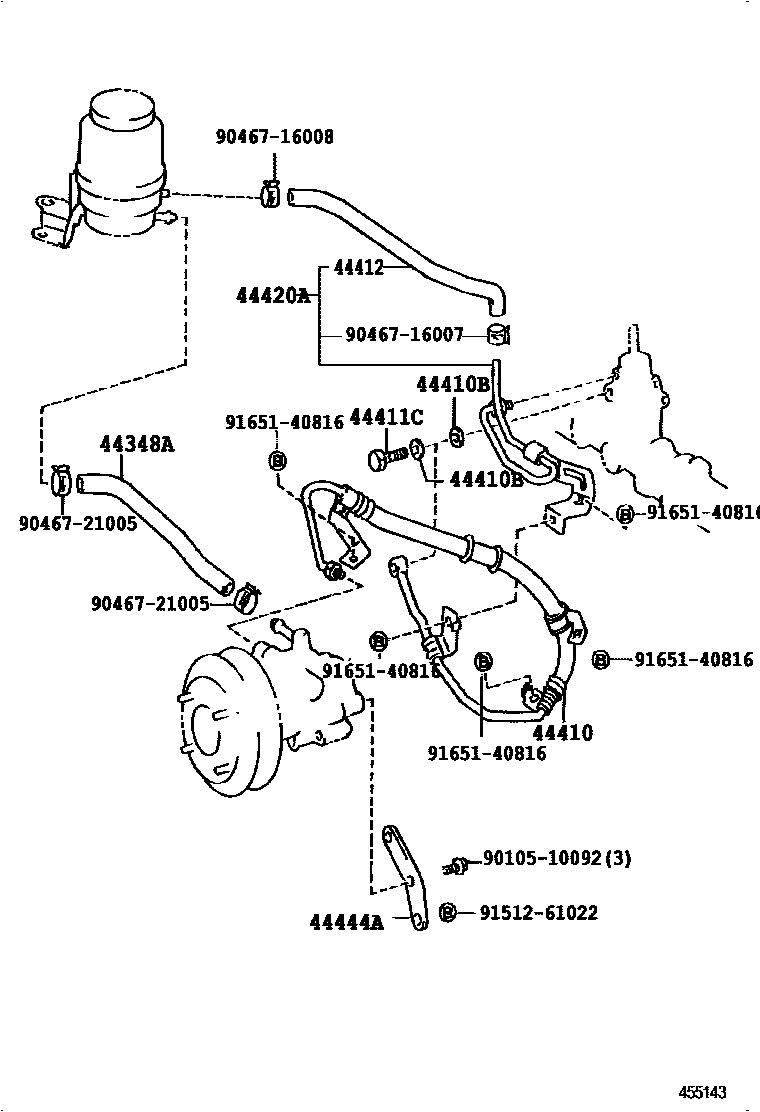

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-28130iCXR1#,2#,TCR1#,2#199201-199501

main44348-28150iCXR1#,2#,TCR1#,2#199501-199912

44410TUBE ASSY, PRESSURE FEED

main44410-28220iTCR1#,2#199201-199501

main44410-28221iTCR1#,2#199501-199608

main44410-28230iCXR1#,2#199201-199308

main44410-28310iCXR1#,2#199308-199501

main44410-28311iCXR1#,2#199501-199908

main44410-28420iTCR1#,2#199608-199912

44410BGASKET(FOR PRESSURE FEED TUBE)

main90430-16242×4iCXR1#,2#; TCR1#,2#199201-199501

44411CBOLT, UNION(FOR PRESSURE FEED HOSE)

main90401-16013iCXR1#,2#,TCR1#,2#199201-199501

44412HOSE, RETURN

main44412-28180iTCR1#,2#199201-199501

main44412-28230iCXR1#,2#199201-199501

main44412-28250iCXR1#,2#,TCR1#,2#199501-199912

44420ATUBE ASSY, RETURN

main44420-28010iTCR1#,2#199201-199501

main44420-28020iCXR1#,2#199201-199501

main44420-28030iCXR1#,2#,TCR1#,2#199501-199608

main44420-28031iCXR1#,2#,TCR1#,2#199608-199912

44444ASTAY, PUMP, REAR NO.1

main44444-28010iCXR1#,2#,TCR1#,2#199201-199912

9010510092

main90105-10092

9046716007

main90467-16007

9046716008

main90467-16008

9046721005

main90467-21005

9151261022

main91512-61022

9165140816

main91651-40816

13 parts on this diagram · 4 diagrams in section
