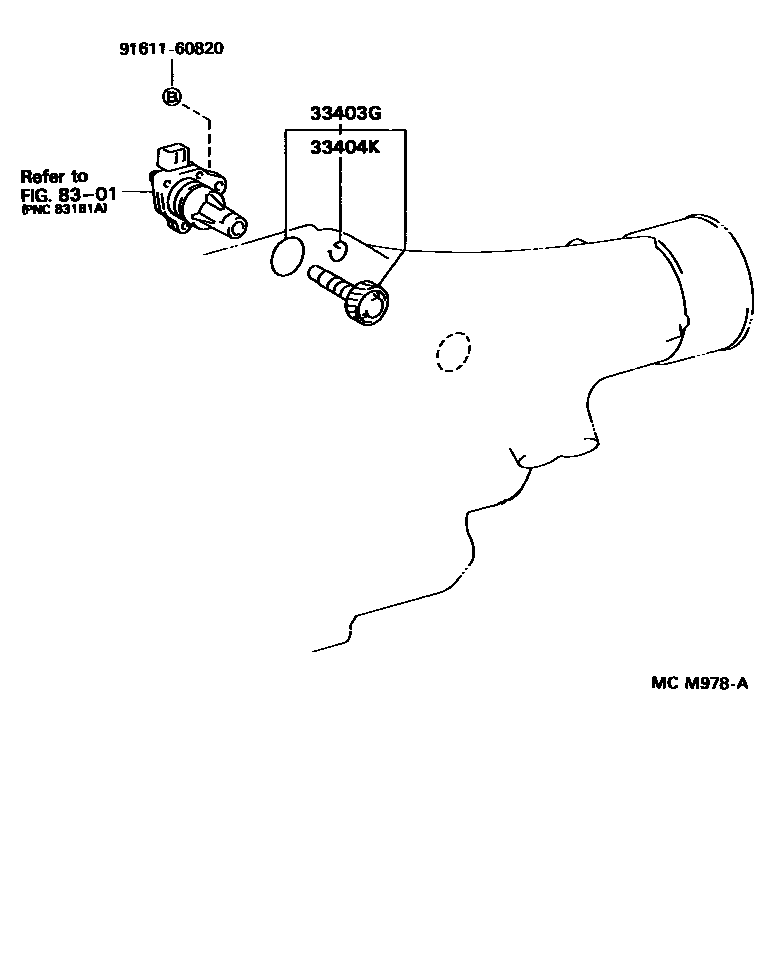

SPEEDOMETER DRIVEN GEAR (ATM)

33403GGEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-29335iCXR2#,TCR2#..ATM199201-199308

main33403-29445iCXR2#,TCR2#..ATM199308-199912

main33482-39375iCXR1#,TCR1#..ATM199201-199912

33404KCLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iCXR2#,TCR2#..ATM199201-199912

8301METER

→ Go to FIG 83-01

9161160820

main91611-60820

4 parts on this diagram · 1 diagram in section
