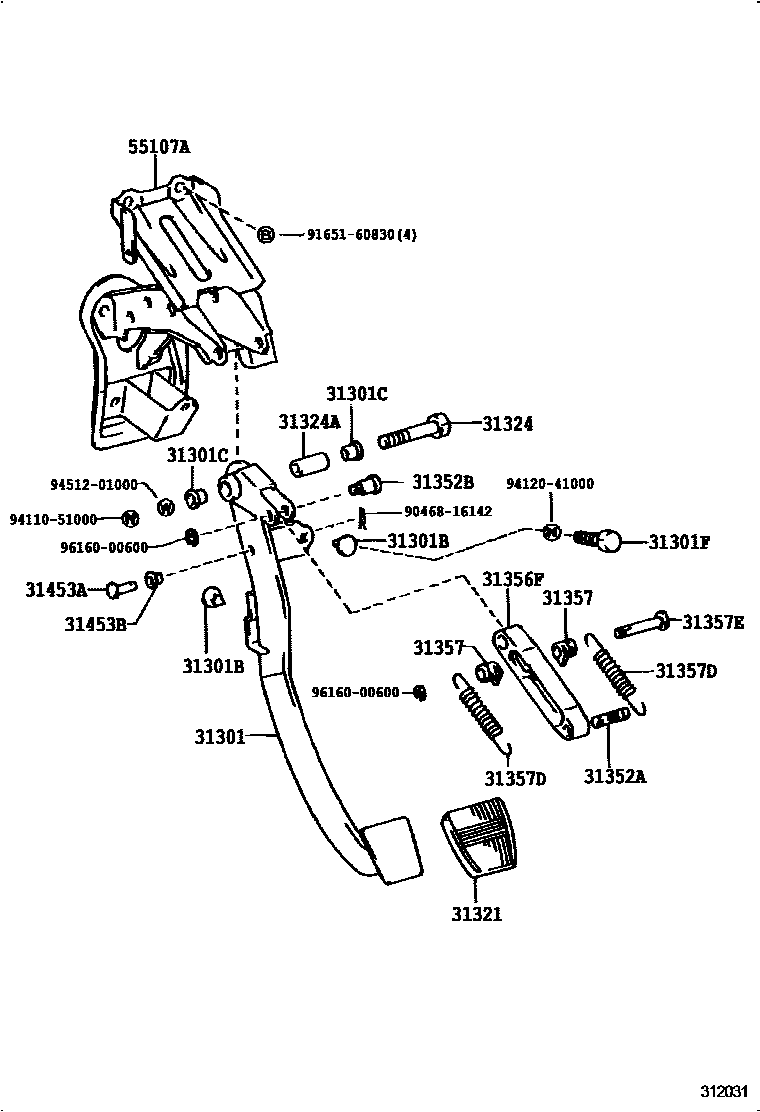

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-28111iCXR1#,2#,TCR10,2#..MTM199201-199908

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06032×2iCXR1#,2#,TCR10,2#..MTM199201-199308

main90541-06036×2iCXR10,20,TCR10,20..MTM199308-199908

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015×2iCXR1#,2#,TCR10,2#..MTM199201-199908

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iCXR1#,2#,TCR10,2#..MTM199201-199908

31321PAD, CLUTCH PEDAL

main31321-14020iCXR1#,2#,TCR10,2#..MTM199201-199908

31324SHAFT, CLUTCH PEDAL

main90101-10039iCXR1#,2#,TCR10,2#..MTM199201-199908

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iCXR1#,2#,TCR10,2#..MTM199201-199908

31352APIN, CLUTCH PEDAL OVER CENTER PLATE, NO.1

main31352-17010iCXR1#,2#,TCR10,2#..MTM199201-199908

31352BPIN, CLUTCH PEDAL OVER CENTER PLATE, NO.2

main31352-20020iCXR1#,2#,TCR10,2#..MTM199201-199908

31356FPLATE, CLUTCH PEDAL OVER CENTER, NO.1

main31356-17010iCXR1#,2#,TCR10,2#..MTM199201-199908

31357PLATE, CLUTCH PEDAL OVER CENTER, NO.2

main31357-20020×2iCXR1#,2#,TCR10,2#..MTM199201-199908

31357DSPRING, COMPRESSION(FOR OVER CENTER ADJUSTING ROD)

main90507-26007×2iCXR1#,2#,TCR10,2#..MTM199201-199908

31357EPIN, CLUTCH PEDAL OVER CENTER PLATE, NO.3

main90249-08214iCXR1#,2#,TCR10,2#..MTM199201-199908

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90240-08006iCXR1#,2#,TCR10,2#..MTM199201-199908

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08033iCXR1#,2#,TCR10,2#..MTM199201-199908

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-28020iCXR1#,2#,TCR10,2#..MTM199201-199908

9046816142

main90468-16142

9165160830

main91651-60830

9411051000

main94110-51000

9412041000

main94120-41000

9451201000

main94512-01000

9616000600

main96160-00600

22 parts on this diagram · 2 diagrams in section
