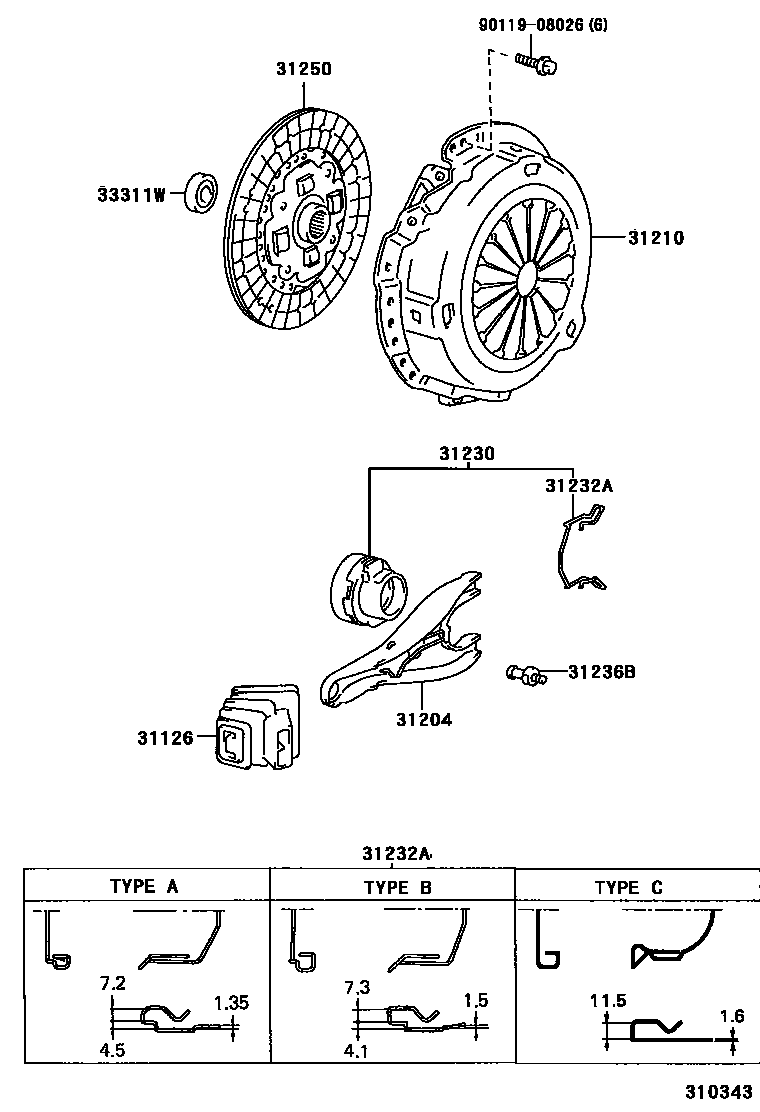

CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-26020iTCR10,2#..MTM199201-199608

main31126-28010iCXR1#,2#..MTM199201-199908

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-20071iCXR1#,2#,TCR10,2#..MTM199201-199908

31210COVER ASSY, CLUTCH

main31210-28030iCXR1#,2#,TCR10,2#..MTM199201-199908

31230BEARING ASSY, CLUTCH RELEASE

main31230-35070iCXR1#,2#..MTM199201-199908

main31230-35090iTCR10,2#..MTM199201-199608

31232ACLIP, RELEASE BEARING HUB

main31232-35020iCXR1#,2#,TCR10,2#..MTM199201-199908

main31232-35030iCXR1#,2#..MTM199201-199908

main31232-35040iTCR10,2#..MTM199201-199608

31236BSUPPORT, RELEASE FORK

main31236-30060iCXR1#,2#,TCR10,2#..MTM199201-199908

31250DISC ASSY, CLUTCH

main31250-14160iCXR1#,2#..MTM199201-199703

main31250-14161iCXR10,20..MTM199703-199908

main31250-28081iTCR10,2#..MTM199201-199212

main31250-28082iTCR10,2#..MTM199212-199608

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iTCR10,2#..MTM199201-199608

main90363-12004iCXR1#,2#..MTM199201-199908

9011908026

main90119-08026

9 parts on this diagram · 1 diagram in section
