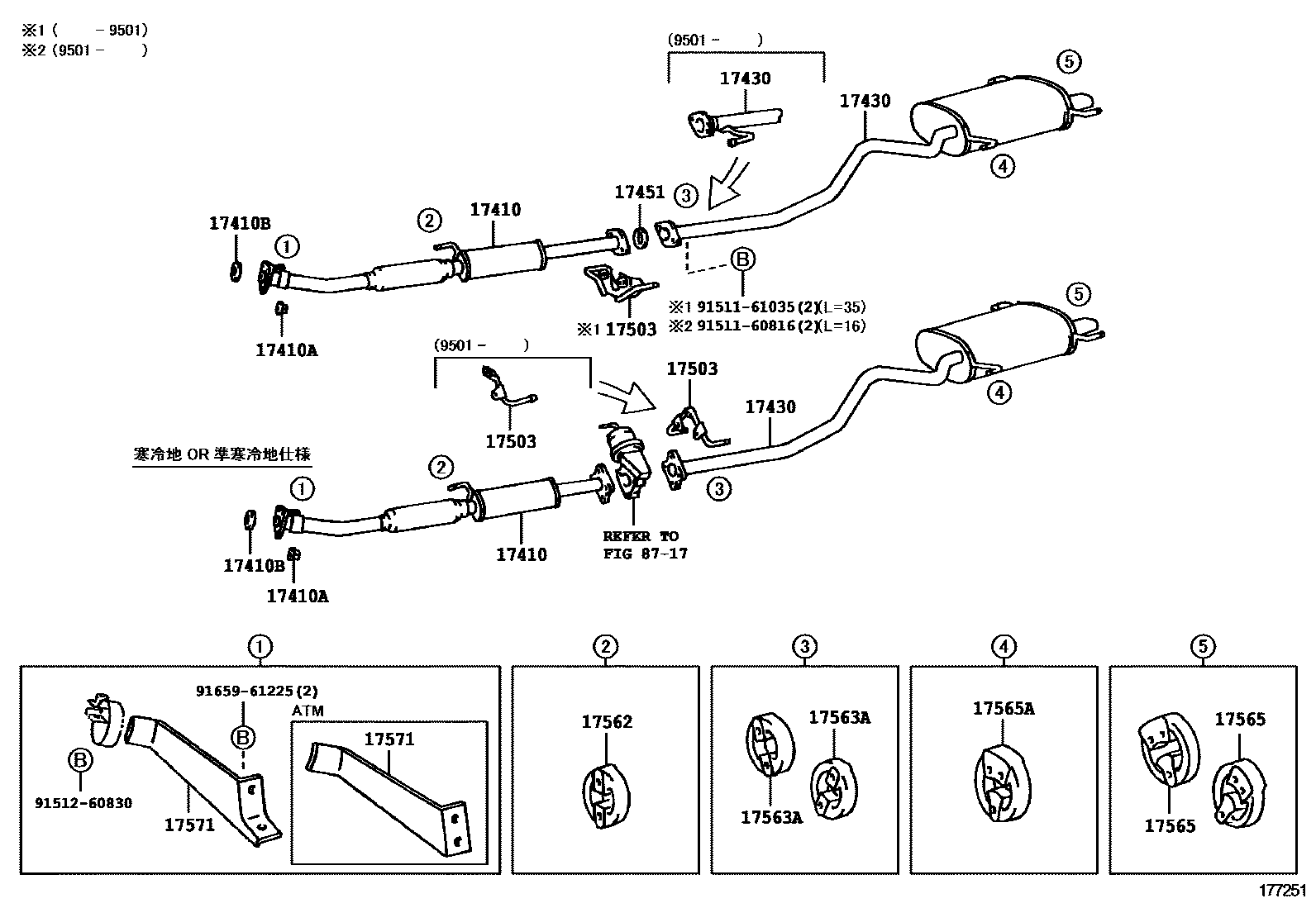

EXHAUST PIPE

0001 1 0002 1 0003 1 0004 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-64420i3CT#..CXR1#,2#199201-199501

main17410-64421i3CTE..CXR1#,2#199501-199807

main17410-64422i3CTE..CXR1#,2#199807-199908

main17410-64520i3CT#..CXR1#,2#199201-199807

main17410-64521i3CTE..CXR1#,2#199807-199908

main17410-76120i2TZFE..TCR1#,2#199201-199501

main17410-76190i2TZFE..TCR1#,2#199501-199607

main17410-76191i2TZFE..TCR1#,2#199607-199608

main17410-76211i2TZFE..TCR1#,2#199608-199801

main17410-76212i2TZFE..TCR1#,2#199801-199912

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10070×3i3CT#,2TZFE..CXR1#,2#,TCR1#,2#199201-199912

17410BGASKET, EXHAUST PIPE

main90917-06039×2i2TZFE..TCR1#,2#199201-199912

main90917-06062i3CT#..CXR1#,2#199201-199908

17430PIPE ASSY, EXHAUST, TAIL

main17430-64720i3CT#..CXR1#,2#199201-199501

main17430-64721i3CTE..CXR1#,2#199501-199807

main17430-64722i3CTE..CXR1#,2#199807-199908

main17430-64730i3CT#..CXR1#,2#199201-199412

main17430-64731i3CTE..CXR1#,2#199412-199807

main17430-64732i3CTE..CXR1#,2#199807-199908

main17430-76080i2TZFE..TCR1#,2#199201-199308

main17430-76081i2TZFE..TCR1#,2#199308-199501

main17430-76082i2TZFE..TCR1#,2#199501-199608

main17430-76083i2TZFE..TCR1#,2#199608-199706

main17430-76084i2TZFE..TCR1#,2#199706-199801

main17430-76085i2TZFE..TCR1#,2#199801-199912

17451GASKET, EXHAUST PIPE

main90917-06043i2TZFE..TCR1#,2#199201-199501

main90917-06045i3CTE..CXR1#,2#199501-199807

main90917-06057i2TZFE..TCR1#,2#199201-199501

main90917-06062i3CTE..CXR1#,2#199807-199908

17503BRACKET SUB-ASSY, CATALYTIC CONVERTER, REAR

main17503-64010i3CT#..CXR1#,2#199201-199501

main17503-64020i3CT#..CXR1#,2#199201-199501

main17503-64021i3CTE..CXR1#,2#199501-199908

main17503-76030i2TZFE..TCR1#,2#199201-199501

main17503-76031i2TZFE..TCR1#,2#199501-199912

17562SUPPORT, EXHAUST PIPE, NO.2

main17565-11160i3CTE,2TZFE..CXR1#,2#,TCR1#,2#199308-199912

main17565-76030i3CT,2TZFE..CXR1#,2#,TCR1#,2#199201-199308

17563ASUPPORT, EXHAUST PIPE, NO.3

main17565-11160×2i3CTE,2TZFE..CXR1#,2#,TCR1#,2#199308-199501

main17565-76030×2i3CT,2TZFE..CXR1#,2#,TCR1#,2#199201-199308

17565SUPPORT, EXHAUST PIPE, NO.5

main17561-74110×2i3CT#,2TZFE..CXR1#,2#,TCR1#,2#199201-199912

17565ASUPPORT, EXHAUST PIPE, NO.4

main17561-74110i3CT#,2TZFE..CXR1#,2#,TCR1#,2#199201-199912

17571BRACKET, EXHAUST PIPE SUPPORT, NO.1

main17571-64200i3CT#..CXR1#,2#..ATM199201-199908

main17571-64210i3CT#..CXR1#,2#..MTM199201-199908

main17571-76040i2TZFE..TCR1#,2#..ATM199201-199501

main17571-76050i2TZFE..TCR10,2#..MTM199201-199501

8717HEATING & AIR CONDITIONING - VACUUM PIPING

→ Go to FIG 87-17

9151160816

main91511-60816

9151161035

main91511-61035

9151260830

main91512-60830

9165961225

main91659-61225

16 parts on this diagram · 4 diagrams in section
