Toyota 274130 — WATER PUMP

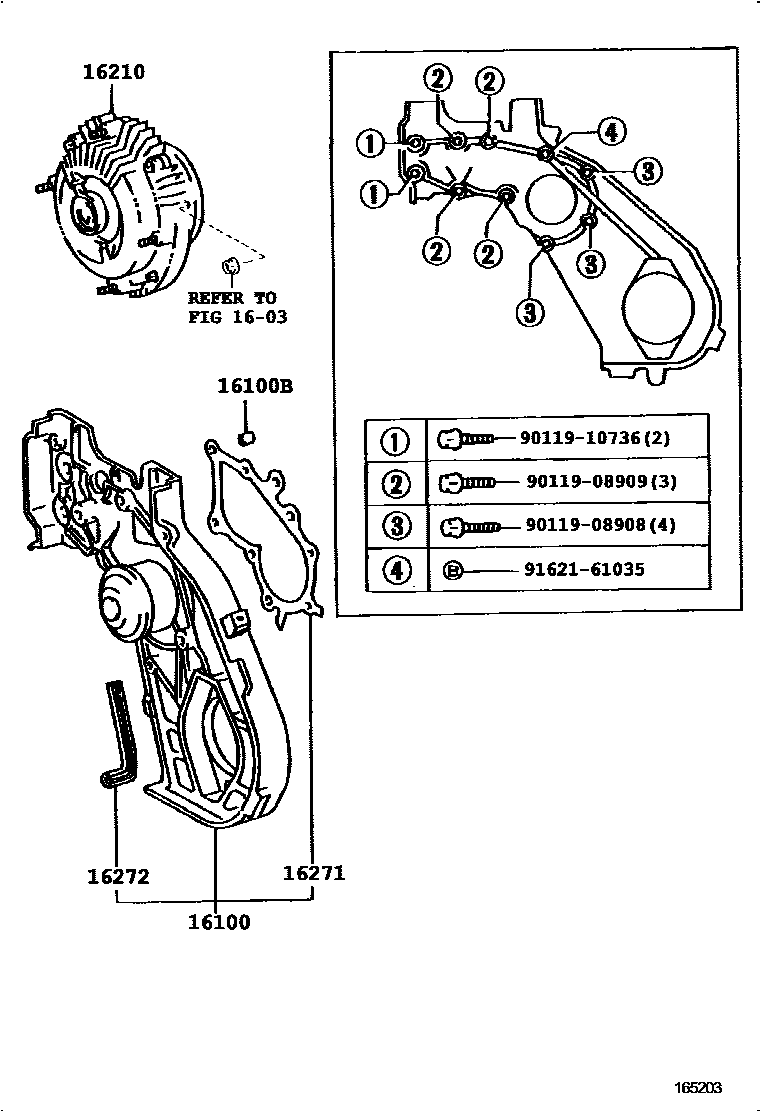

Parts diagram

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

16100PUMP ASSY, ENGINE WATER

16100BPIN, RING(FOR WATER PUMP SET)

16210COUPLING ASSY, FLUID

16271GASKET, WATER PUMP

16272GASKET, WATER PUMP, NO.2

9011908908

9011908909

9011910736

9162161035

10 parts on this diagram · 2 diagrams in section

WATER PUMP for Toyota 274130

This section contains 21 genuine Toyota parts for the WATER PUMP system of the Toyota 274130. Key components include: RADIATOR & WATER OUTLET, PUMP ASSY, ENGINE WATER, PIN, RING(FOR WATER PUMP SET), BODY SUB-ASSY, WATER PUMP, COVER ASSY, WATER PUMP.
