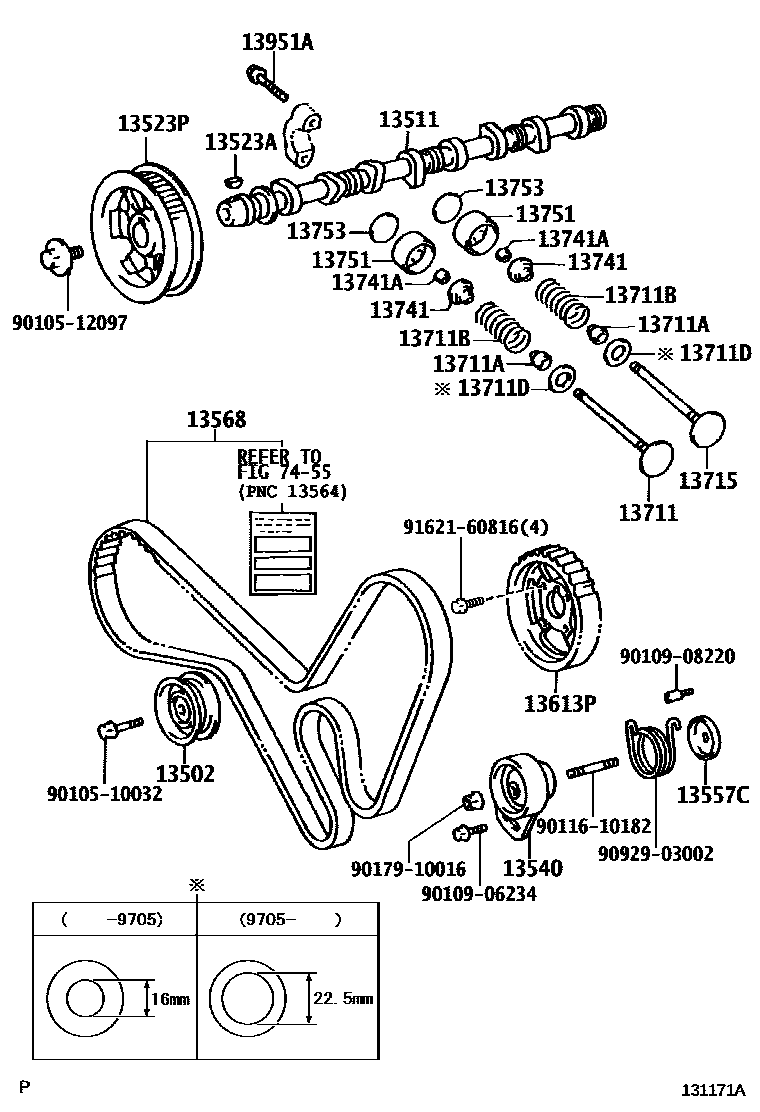

CAMSHAFT & VALVE

0001 1 0002 1

13502IDLER SUB-ASSY, TIMING BELT, NO.2

main13503-64030i3CT#..CXR1#,2#199201-199908

13511CAMSHAFT

main13501-76050i2TZFE..TCR1#,2#199608-199912

main13501-76900i2TZFE..TCR1#,2#199201-199608

main13511-64080i3CT..CXR1#,2#199201-199204

main13511-64081i3CT#..CXR1#,2#199204-199908

13523AKEY, WOODRUFF(FOR TIMING GEAR)

main90280-05004i3CT#..CXR1#,2#199201-199908

13523PPULLEY, CAMSHAFT TIMING

main13051-64011i3CT..CXR1#,2#199201-199205

main13051-64012i3CT#..CXR1#,2#199205-199908

main13523-75010i2TZFE..TCR1#,2#199201-199912

13540TENSIONER ASSY, CHAIN, NO.1

main13540-64010i3CT..CXR1#,2#199201-199206

main13540-64011i3CT..CXR1#,2#199206-199306

main13540-64012i3CT#..CXR1#,2#199306-199908

main13540-75010i2TZFE..TCR1#,2#199201-199401

main13540-75020i2TZFE..TCR1#,2#199401-199912

13557CGUIDE, TORSION SPRING

main13557-64010i3CT#..CXR1#,2#199201-199908

13568BELT, TIMING

main13568-64011i3CT..CXR1#,2#199201-199205

main13568-69065i3CT..CXR1#,2#199205-199208

main13568-69066i3CT#..CXR1#,2#199208-199812

main13568-69067i3CTE..CXR1#,2#199812-199908

13613PPULLEY, INJECTION PUMP DRIVE

main13613-64020i3CT..CXR1#,2#199201-199308

main13613-64030i3CTE..CXR1#,2#199308-199908

13711VALVE, INTAKE

main13711-64020×4i3CT#..CXR1#,2#199201-199502

main13711-64030×4i3CTE..CXR1#,2#199502-199908

main13711-76020×8i2TZFE..TCR1#,2#199201-199409

main13711-76040×8i2TZFE..TCR1#,2#199409-199912

13711ASEAL OR RING, O(FOR VALVE STEM OIL)

main90913-02062×8i2TZFE..TCR1#,2#199201-199206

INTAKE SIDE

main90913-02085×8i2TZFE..TCR1#,2#199201-199912

EXHAUST SIDE

main90913-02090×8i2TZFE..TCR1#,2#199206-199912

INTAKE SIDE

main90913-02094×8i3CT#..CXR1#,2#199201-199511

main90913-02110×8i3CTE..CXR1#,2#199511-199704

main90913-02116×8i3CTE..CXR1#,2#199704-199908

13711BSPRING, COMPRESSION(FOR INNER)

main90501-31017×16i2TZFE..TCR1#,2#199608-199912

main90501-36002×16i2TZFE..TCR1#,2#199201-199608

main90501-43003×8i3CT#..CXR1#,2#199201-199908

13711DWASHER, PLATE(FOR VALVE SPRING SEAT)

main90201-16010×8i3CT#..CXR1#,2#199201-199705

main90201-22010×8i3CTE..CXR1#,2#199705-199908

13715VALVE, EXHAUST

main13715-64040×4i3CT#..CXR1#,2#199201-199908

main13715-75050×8i2TZFE..TCR1#,2#199608-199912

main13715-76020×8i2TZFE..TCR1#,2#199201-199308

main13715-76030×8i2TZFE..TCR1#,2#199308-199608

13741RETAINER, VALVE SPRING

main13741-43010×8i3CT#..CXR1#,2#199201-199908

main13741-50020×16i2TZFE..TCR1#,2#199201-199912

13741ALOCK, VALVE SPRING RETAINER

main90913-03014×16i3CT#..CXR1#,2#199201-199908

main90913-03021×32i2TZFE..TCR1#,2#199201-199912

13751LIFTER, VALVE

main13751-64011×8i3CT#..CXR1#,2#199201-199908

main13751-74020×16i2TZFE..TCR1#,2#199201-199912

13753SHIM, VALVE ADJUSTING

main13753-64010×8i3CT#..CXR1#,2#199201-199908

main13753-64030×8i3CT#..CXR1#,2#199201-199908

main13753-64050×8i3CT#..CXR1#,2#199201-199908

main13753-64070×8i3CT#..CXR1#,2#199201-199908

main13753-64090×8i3CT#..CXR1#,2#199201-199908

main13753-64110×8i3CT#..CXR1#,2#199201-199908

main13753-64130×8i3CT#..CXR1#,2#199201-199908

main13753-64150×8i3CT#..CXR1#,2#199201-199908

main13753-64170×8i3CT#..CXR1#,2#199201-199908

main13753-64190×8i3CT#..CXR1#,2#199201-199908

main13753-64210×8i3CT#..CXR1#,2#199201-199908

main13753-64230×8i3CT#..CXR1#,2#199201-199908

main13753-64250×8i3CT#..CXR1#,2#199201-199908

main13753-64270×8i3CT#..CXR1#,2#199201-199908

main13753-64290×8i3CT#..CXR1#,2#199201-199908

main13753-64310×8i3CT#..CXR1#,2#199201-199908

main13753-64330×8i3CT#..CXR1#,2#199201-199908

main13753-64350×8i3CT#..CXR1#,2#199201-199908

main13753-64370×8i3CT#..CXR1#,2#199201-199908

main13753-64390×8i3CT#..CXR1#,2#199201-199908

main13753-64410×8i3CT#..CXR1#,2#199201-199908

main13753-64430×8i3CT#..CXR1#,2#199201-199908

main13753-64450×8i3CT#..CXR1#,2#199201-199908

main13753-64470×8i3CT#..CXR1#,2#199201-199908

main13753-64490×8i3CT#..CXR1#,2#199201-199908

main13753-74010i2TZFE..TCR1#,2#199201-199912

main13753-74030i2TZFE..TCR1#,2#199201-199912

main13753-74050i2TZFE..TCR1#,2#199201-199912

main13753-74070i2TZFE..TCR1#,2#199201-199912

main13753-74090i2TZFE..TCR1#,2#199201-199912

main13753-74110i2TZFE..TCR1#,2#199201-199912

main13753-74130i2TZFE..TCR1#,2#199201-199912

main13753-74150i2TZFE..TCR1#,2#199201-199912

main13753-74170i2TZFE..TCR1#,2#199201-199912

main13753-74190i2TZFE..TCR1#,2#199201-199912

main13753-74210i2TZFE..TCR1#,2#199201-199912

main13753-74230i2TZFE..TCR1#,2#199201-199912

main13753-74250i2TZFE..TCR1#,2#199201-199912

main13753-74270i2TZFE..TCR1#,2#199201-199912

main13753-74290i2TZFE..TCR1#,2#199201-199912

main13753-74310i2TZFE..TCR1#,2#199201-199912

main13753-74330i2TZFE..TCR1#,2#199201-199912

13951ABOLT(FOR ROCKER SUPPORT SET)

main91621-60840×10i3CT#..CXR1#,2#199201-199908

7455CAUTION PLATE

→ Go to FIG 74-55

9010510032

main90105-10032

9010512097

main90105-12097

9010906234

main90109-06234

9010908220

main90109-08220

9011610182

main90116-10182

9017910016

main90179-10016

9092903002

main90929-03002

9162160816

main91621-60816
