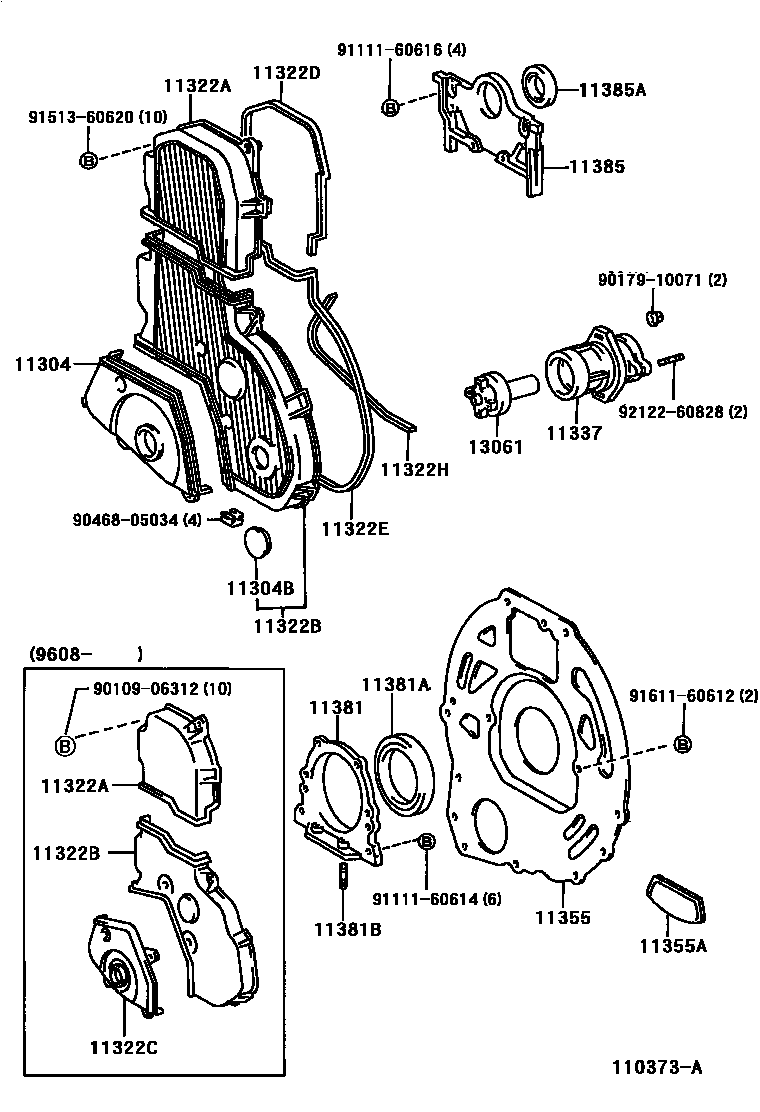

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1

11304COVER, TIMING CHAIN OR BELT, NO.2

main11304-64010i3CT#..CXR1#,2#199201-199608

11304BPLUG, SEMI CIRCULAR(FOR CHAIN COVER NO.2)

main90950-01357i3CT#..CXR1#,2#199201-199608

11322ACOVER, TIMING BELT, NO.1

main11302-64010i3CT#..CXR1#,2#199201-199608

main11321-64050i3CTE..CXR1#,2#199608-199908

11322BCOVER, TIMING BELT, NO.2

main11303-64020i3CT..CXR1#,2#199201-199308

main11303-64030i3CTE..CXR1#,2#199308-199608

main11322-64050i3CTE..CXR1#,2#199608-199908

11322CCOVER, TIMING BELT, NO.3

main11323-64040i3CTE..CXR1#,2#199608-199908

11322DGASKET, TIMING BELT COVER, NO.1

main11328-64050i3CT#..CXR1#,2#199201-199608

main11328-64060i3CTE..CXR1#,2#199608-199908

11322EGASKET, TIMING BELT COVER, NO.2

main11329-64030i3CT..CXR1#,2#199201-199308

main11329-64040i3CTE..CXR1#,2#199308-199608

main11329-64050i3CTE..CXR1#,2#199608-199908

11322HGASKET, TIMING BELT COVER, NO.3

main11319-64010i3CT#..CXR1#,2#199201-199608

main11319-64020i3CTE..CXR1#,2#199608-199908

11337HOUSING, INJECTION PUMP DRIVE SHAFT BEARING

main11337-64010i3CT..CXR1#,2#199201-199308

main11337-64020i3CTE..CXR1#,2#199308-199908

11355PLATE, REAR END

main11355-64070i3CT#..CXR1#,2#..MTM199201-199908

main11355-64080i3CT#..CXR1#,2#..ATM199201-199908

main11355-76010i2TZFE..TCR1#,2#199201-199912

11355APLUG, HOLE(FOR REAR END PLATE)

main90950-01738i3CT#..CXR1#,2#..ATM199201-199908

11381RETAINER, ENGINE REAR OIL SEAL

main11381-64012i3CT#..CXR1#,2#199201-199812

main11381-64020i3CTE..CXR1#,2#199812-199908

main11381-75010i2TZFE..TCR1#,2#199201-199912

11381ASEAL, ENGINE REAR OIL

main90311-88001i2TZFE..TCR1#,2#199201-199308

main90311-88003i2TZFE..TCR1#,2#199308-199912

main90311-90005i3CT..CXR1#,2#199201-199308

main90311-90008i3CTE..CXR1#,2#199308-199908

11381BBOLT, STUD(FOR ENGINE REAR OIL SEAL RETAINER)

main90116-06134×2i3CT#..CXR1#,2#199201-199908

11385RETAINER, CAMSHAFT OIL SEAL

main11382-64020i3CT#..CXR1#,2#199201-199908

11385ASEAL, OIL(FOR CAMSHAFT)

main90311-38044i3CT#..CXR1#,2#199201-199611

main90311-38061i3CTE..CXR1#,2#199611-199906

main90311-38081i3CTE..CXR1#,2#199906-199908

13061SHAFT SUB-ASSY, INJECTION PUMP DRIVE

main13061-64010i3CT#..CXR1#,2#199201-199908

9010906312

main90109-06312

9017910071

main90179-10071

9046805034

main90468-05034

9111160614

main91111-60614

9111160616

main91111-60616

9151360620

main91513-60620

9161160612

main91611-60612

9212260828

main92122-60828

25 parts on this diagram · 2 diagrams in section
