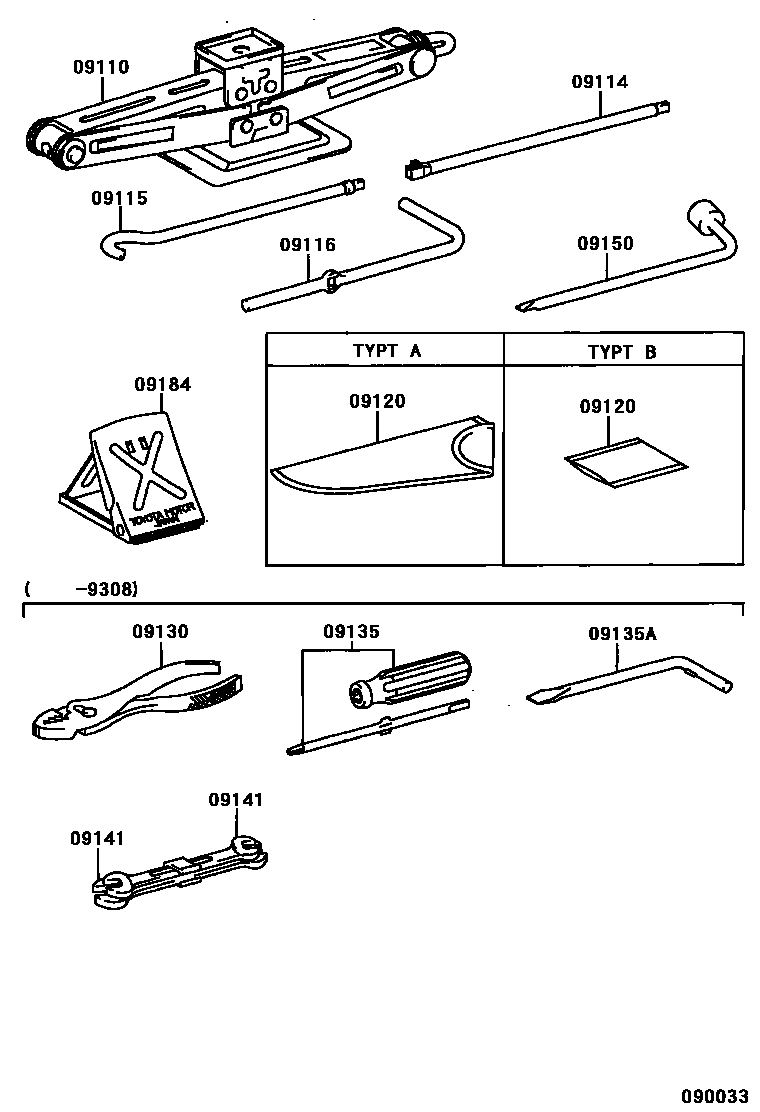

STANDARD TOOL

09110JACK ASSY

main09110-28110iCXR1#,2#,TCR1#,2#199606-199912

main09111-28050iCXR1#,2#,TCR1#,2#199201-199606

09114EXTENSION SUB-ASSY, JACK HANDLE

main09114-28010iCXR1#,2#,TCR1#,2#199201-199610

main09114-60070iCXR1#,2#,TCR1#,2#199610-199912

09115ROD SUB-ASSY, JACK HANDLE

main09115-28030iCXR1#,2#,TCR1#,2#199201-199912

09116LEVER, JACK HANDLE

main09116-35041iCXR1#,2#,TCR1#,2#199201-199610

main09116-60010iCXR1#,2#,TCR1#,2#199610-199912

09120BAG, TOOL

main09120-22030iCXR1#,2#,TCR1#,2#199201-199912

main09120-28040iCXR1#,2#,TCR1#,2#199201-199308

09130PLIERS

main99913-11500iCXR1#,2#,TCR1#,2#199201-199308

09135DRIVER, SCREW

main99915-10700iCXR1#,2#,TCR1#,2#199201-199308

09135ABIT, SCREW DRIVER

main09135-00012iCXR1#,2#,TCR1#,2#..G,S,X199201-199308

09141SPANNER

main99914-10810iCXR1#,2#,TCR1#,2#199201-199308

main99914-11214iCXR1#,2#,TCR1#,2#199201-199308

09150WRENCH, HUB NUT BOX

main09150-35020iCXR1#,2#,TCR1#,2#199201-199308

main09150-40010iCXR1#,2#,TCR1#,2#199308-199912

09184STOPPER, WHEEL

main09184-00010iCXR1#,2#,TCR1#,2#199201-199912

11 parts on this diagram · 1 diagram in section
