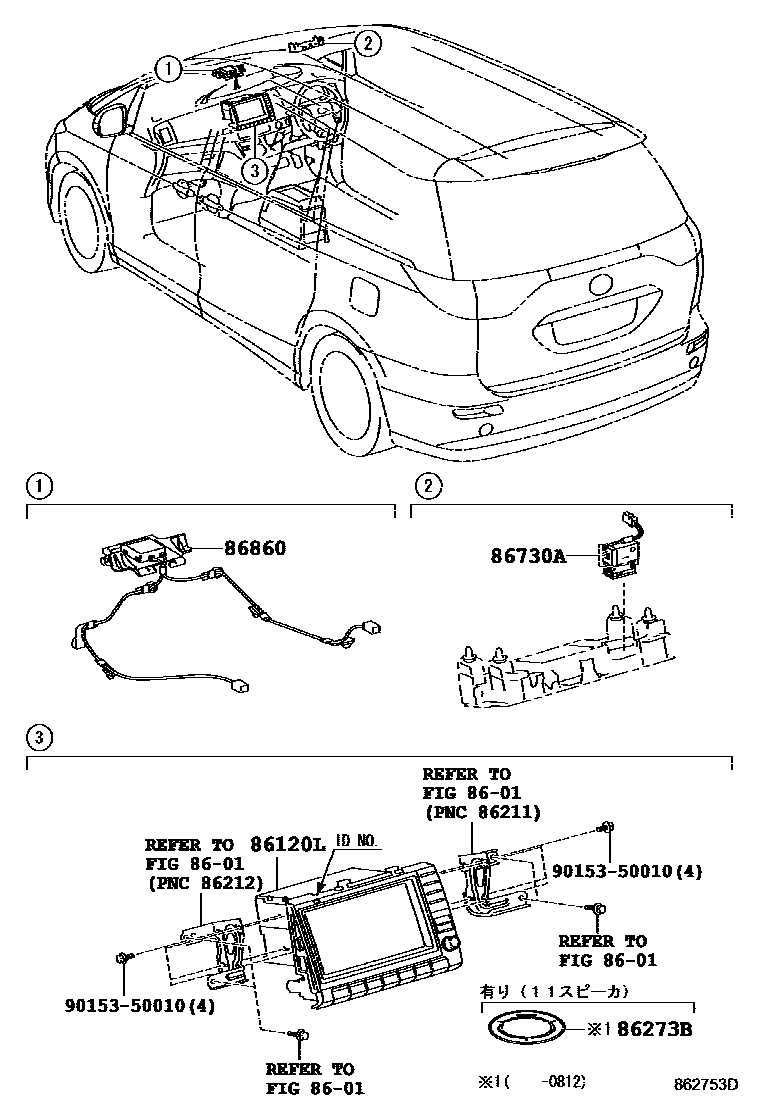

NAVIGATION & FRONT MONITOR DISPLAY

0001 1 0002 1

8601RADIO RECEIVER & AMPLIFIER & CONDENSER

→ Go to FIG 86-01

86120LRECEIVER ASSY, NAVIGATION

main86100-28020iACR5#,GSR5#..CBU200601-200603

main86100-28021iACR5#,GSR5#..CBU200604-200608

main86100-28022iACR5#,GSR5#..CBU200609-200703

main86100-28023iACR5#,GSR5#..CBU200704-200709

main86100-28024iACR5#,GSR5#..CBU200710-200803

main86100-28025iACR5#,GSR5#..CBU200804-200807

main86100-28026iACR5#,GSR5#..CBU200808-200812

main86100-28030iACR5#,GSR5#..(AERAS,G)..CBU200601-200603

main86100-28031iACR5#,GSR5#..(AERAS,G)..CBU200604-200608

main86100-28032iACR5#,GSR5#..(AERAS,G)..CBU200609-200703

main86100-28033iACR5#,GSR5#..(AERAS,G)..CBU200704-200708

main86100-28034iACR5#,GSR5#..(AERAS,G)..CBU200709-200803

main86100-28035iACR5#,GSR5#..(AERAS,G)..CBU200804-200807

main86100-28036iACR5#,GSR5#..(AERAS,G)..CBU200808-200812

main86100-28100iACR5#,GSR5#..(AERAS,G)..CBU; ACR5#,GSR5#..CBU200812-200903

main86100-28101iACR5#,GSR5#..(AERAS,G)..CBU; ACR5#,GSR5#..CBU200904-200908

main86100-28102iACR5#,GSR5#..(AERAS,G)..CBU; ACR5#,GSR5#..CBU200909-200912

main86100-28130iACR5#,GSR5#..(AERAS,G)..CBU; ACR5#,GSR5#..CBU200912-201003

main86100-28131iACR5#,GSR5#..(AERAS,G)..CBU; ACR5#,GSR5#..CBU201004-201008

main86100-28132iACR5#,GSR5#..(AERAS,G)..CBU; ACR5#,GSR5#..CBU201009-201103

main86100-28133iACR5#,GSR5#..(AERAS,G)..CBU; ACR5#,GSR5#..CBU201104-201107

main86100-28134iACR5#,GSR5#..(AERAS,G)..CBU; ACR5#,GSR5#..CBU201108-201204

main86100-28150iACR5#,GSR5#..(AERAS,G)..CBU; ACR5#,GSR5#..CBU201204-201205

main86100-28151iACR5#,GSR5#..(AERAS,G)..CBU; ACR5#,GSR5#..CBU201206-201208

main86100-28152iACR5#,GSR5#..(AERAS,G)..CBU; ACR5#,GSR5#..CBU201209-201304

main86804-28010iACR5#,GSR5#..(AERAS,G)..CBU; ACR5#,GSR5#..CBU201304-201605

86273BADAPTER, DISC PLAYER

main86273-58010iACR5#,GSR5#..(AERAS,G)..CBU200601-200812

86730AMICROPHONE ASSY, TELEPHONE

main86730-28020iACR5#,GSR5#..(AERAS,G)..CBU; ACR5#,GSR5#..CBU200812-200912

86860ANTENNA ASSY, NAVIGATION

main86860-28150iACR5#,GSR5#..(AERAS,G)..CBU; ACR5#,GSR5#..CBU200601-200812

main86870-28010iACR5#,GSR5#..(AERAS,G)..CBU; ACR5#,GSR5#..CBU200812-200912

main86870-28020iACR5#,GSR5#..(AERAS,G)..CBU; ACR5#,GSR5#..CBU200601-200812

main86870-28030iACR5#,GSR5#..(AERAS,G)..CBU; ACR5#,GSR5#..CBU200601-200812

main86870-28080iACR5#,GSR5#..(AERAS,G)..CBU; ACR5#,GSR5#..CBU200912-201204

main86870-28090iACR5#,GSR5#..(AERAS,G)..CBU; ACR5#,GSR5#..CBU200812-200912

main86870-28100iACR5#,GSR5#..(AERAS,G)..CBU; ACR5#,GSR5#..CBU201204-201605

main86880-28010iACR5#,GSR5#..(AERAS,G)..CBU; ACR5#,GSR5#..CBU201204-201605

main86880-28020iACR5#,GSR5#..(AERAS,G)..CBU; ACR5#,GSR5#..CBU201204-201605

9015350010

main90153-50010

6 parts on this diagram · 2 diagrams in section
