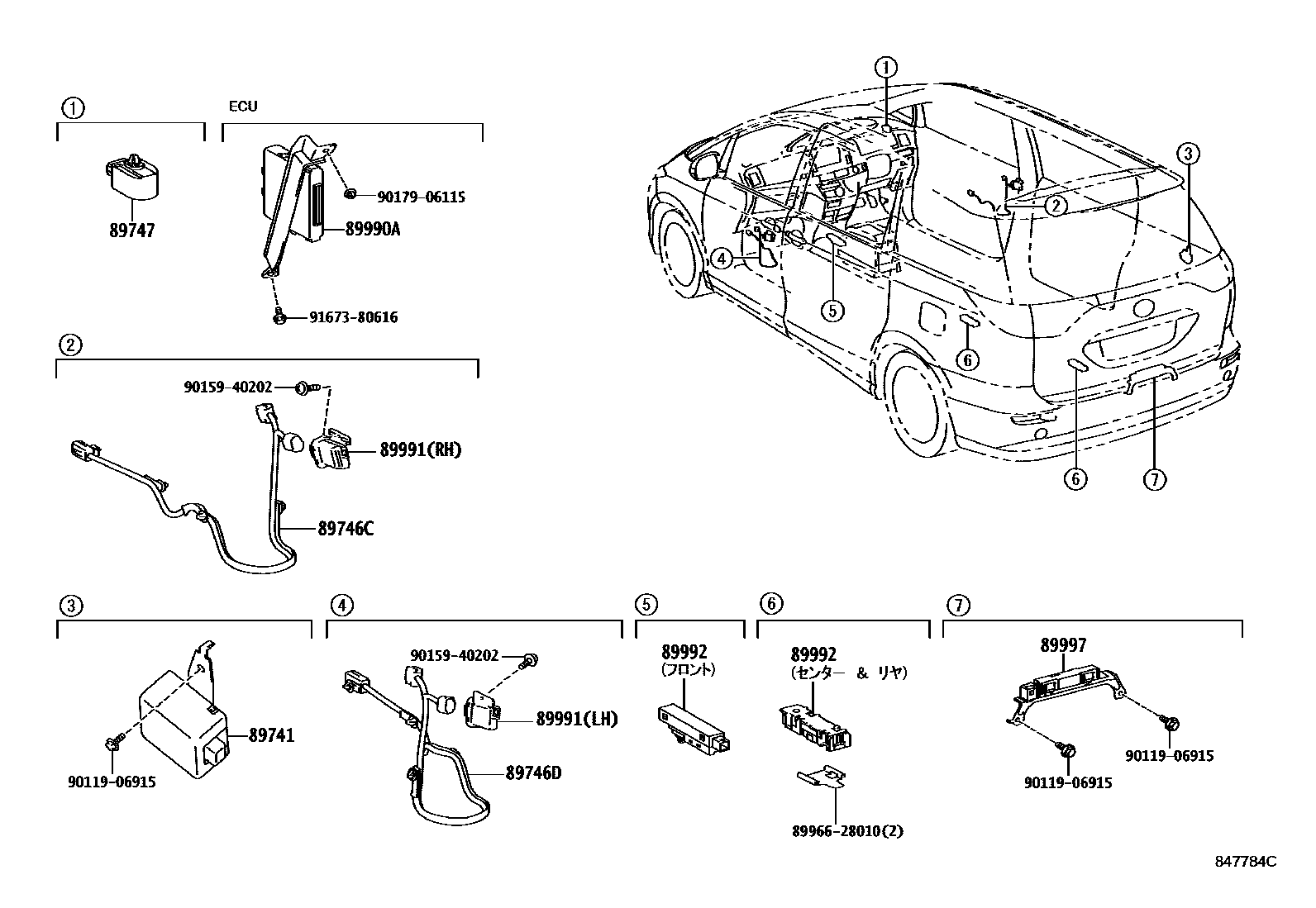

WIRELESS DOOR LOCK

89741RECEIVER, DOOR CONTROL

main89740-28020iACR5#,GSR5#..CBU200601-200602

main89740-28021iACR5#,GSR5#..CBU201204-201605

89746CHARNESS, ELECTRICAL KEY WIRE, NO.1

main89746-28040iACR5#,GSR5#..CBU200601-200812

89746DHARNESS, ELECTRICAL KEY WIRE, NO.2

main89746-28050iACR5#,GSR5#..CBU200601-200812

89747BUZZER, WIRELESS DOOR LOCK

main89747-52010iACR5#,GSR5#..CBU200601-200812

89990ACOMPUTER ASSY, SMART KEY

main89990-28020supersedes 89990-28031iACR5#,GSR5#..(AERAS,G)..CBU; ACR5#,GSR5#..CBU200601-200604

main89990-28021iACR5#,GSR5#..(AERAS,G)..CBU; ACR5#,GSR5#..CBU200605-200610

main89990-28022iACR5#,GSR5#..(AERAS,G)..CBU; ACR5#,GSR5#..CBU200610-200812

main89990-28070supersedes 89990-28060iACR5#..CBU201605

main89990-28110iACR5#,GSR5#..(AERAS,G)..CBU; ACR5#,GSR5#..CBU200812-200906

main89990-28111iACR5#,GSR5#..(AERAS,G)..CBU; ACR5#,GSR5#..CBU200907-200912

main89990-28250supersedes 89990-28240iACR5#,GSR5#..(AERAS,G)..CBU; ACR5#,GSR5#..CBU201204-201605

89991OSCILLATOR, DOOR ELECTRICAL KEY

main89991-28020iACR5#,GSR5#..CBU201204-201605

main89991-28030iACR5#..CBU201605

89992OSCILLATOR, INDOOR ELECTRICAL KEY

main89992-28010×2iACR5#,GSR5#..CBU200812-201204

main89992-52020iACR5#,GSR5#..CBU201204-201605

89997ANTENNA, ELECTRICAL KEY

main89997-28010iACR5#,GSR5#..CBU200601-200812

8996628010BRACKET, OSCILLATOR ELECTRICAL KEY

main89966-28010

9011906915

main90119-06915

9015940202

main90159-40202

9017906115

main90179-06115

9167380616

main91673-80616

13 parts on this diagram · 1 diagram in section
