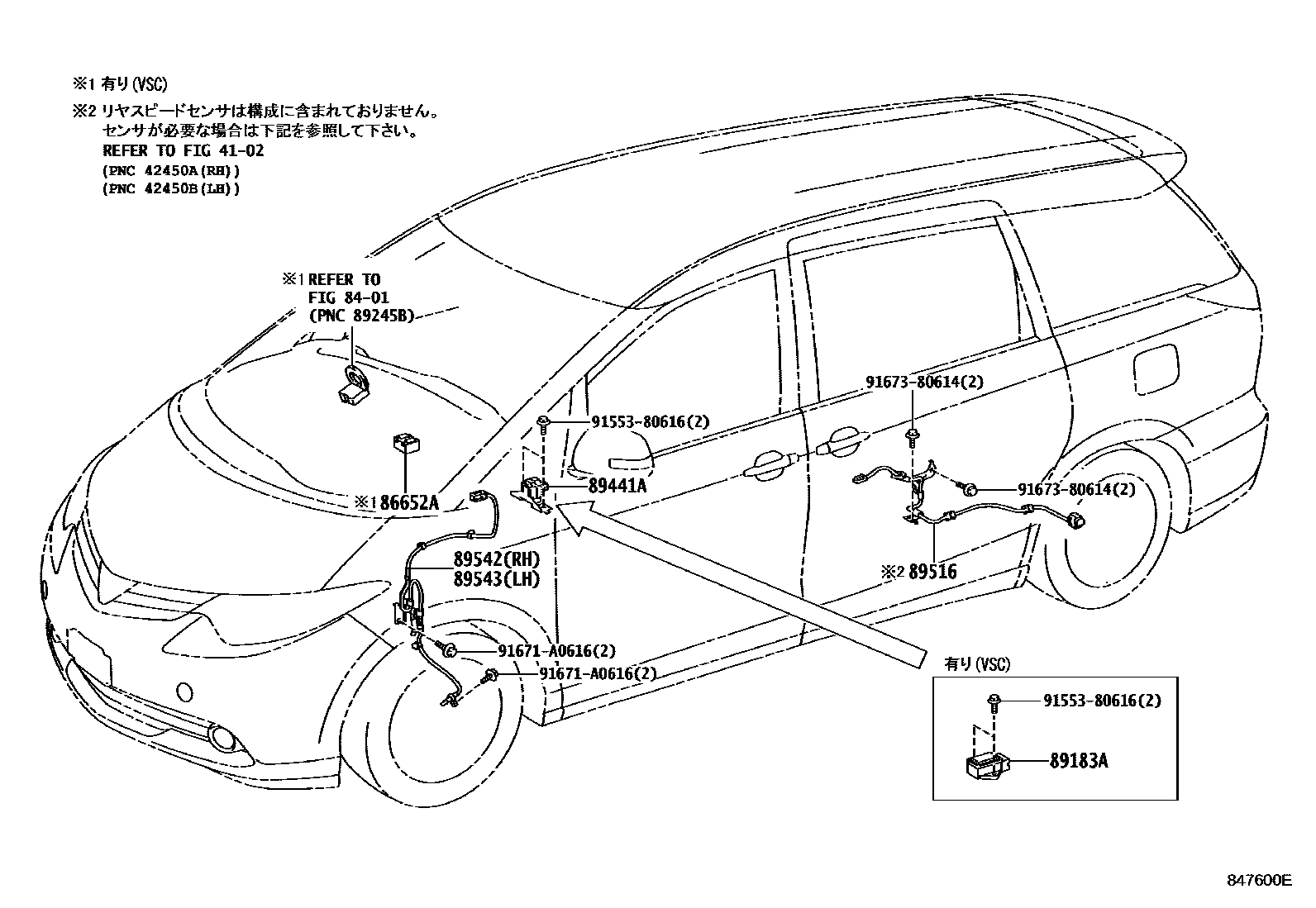

ABS & VSC

0001 1 0002 1 0003 1 0004 1

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

86652ABUZZER ASSY, SKID CONTROL

main86652-50010iACR5#..CBU; GSR5#201204-201304

main86652-48010iGSR5#..CBU; GSR5#..G..CBU200601-200812

89183ASENSOR, YAWRATE

main89183-28010iGSR5#201204-201605

main89183-28020iACR5#..CBU201605

89441ASENSOR, DECELERATION

main89440-28080iACR5#,GSR5#..CBU200812-201204

main89440-28081iACR5#..CBU201407-201409

89516WIRE, SKID CONTROL SENSOR

main89516-28050iACR50,GSR50..CBU200601-200812

main89516-28060iACR50..CBU201605

89542SENSOR, SPEED, FRONT RH

main89542-28100iACR5#..CBU201605

89543SENSOR, SPEED, FRONT LH

main89543-28100iACR5#,GSR5#..CBU200601-200812

9155380616

main91553-80616

91671A0616

main91671-A0616

9167380614

main91673-80614

11 parts on this diagram · 4 diagrams in section
