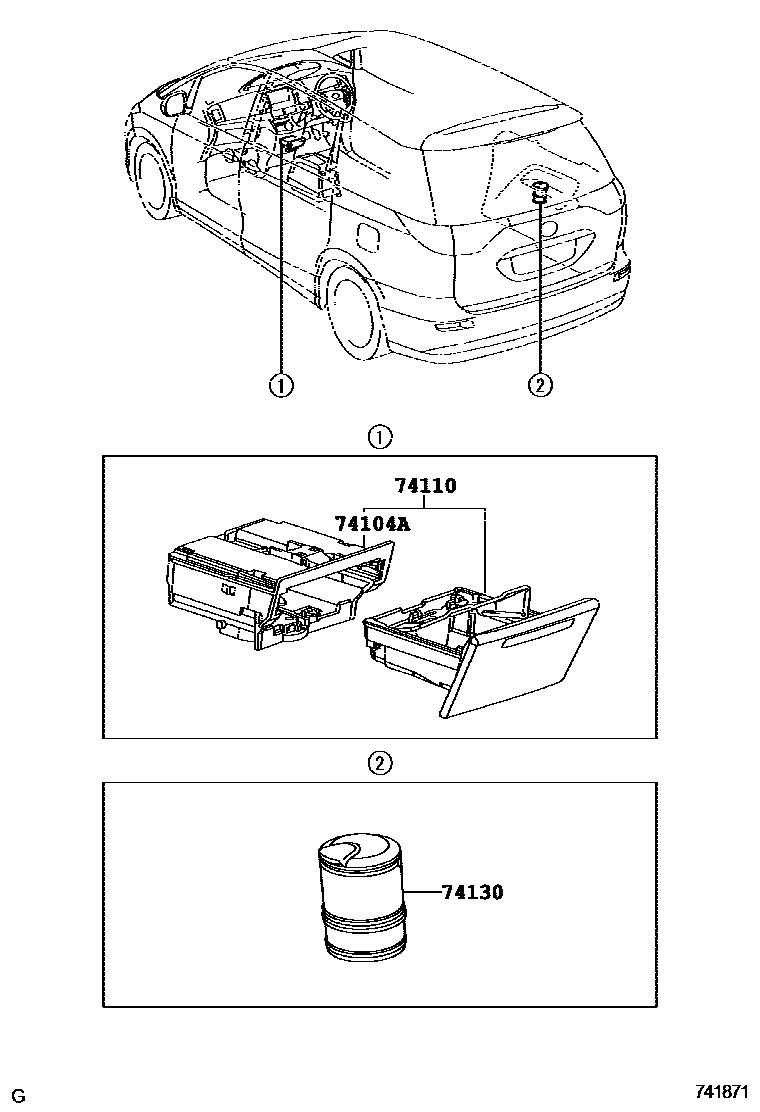

ASH RECEPTACLE

74104ARETAINER SUB-ASSY, FRONT ASH RECEPTACLE

main74104-60120iACR5#,GSR5#..CBU201204-201304

74110RECEPTACLE ASSY, INSTRUMENT PANEL ASH

main74110-28030-A0iACR5#,GSR5#..CBU201204-201304

SHELL,TRIM0#

main74110-28030-B0iACR5#,GSR5#..AERAS..CBU200601-200812

GRAY,TRIM1#

main74110-28030-B1iACR5#,GSR5#..AERAS..CBU200812-201204

MD.GRAY,TRIM1#

main74110-28030-C0iACR5#,GSR5#..AERAS..CBU201204-201304

BLACK,TRIM2#

main74110-28030-E0iGSR5#..CBU;ACR5#..(G,X)..CBU;ACR5#..07S..AERAS..CBU200601-200812

GREGE,TRIM4#

74130RECEPTACLE ASSY, REAR ASH

main74130-28040-C0iACR5#,GSR5#..(G,X)..CBU; ACR5#,GSR5#..07S..AERAS..CBU; ACR5#,GSR5#..08S..AERAS..CBU200601-200707

BLACK,TRIM1#; BLACK,TRIM1#,4#; BLACK,TRIM4#

main74130-42010iACR5#,GSR5#..CBU200708-200812

3 parts on this diagram · 1 diagram in section
