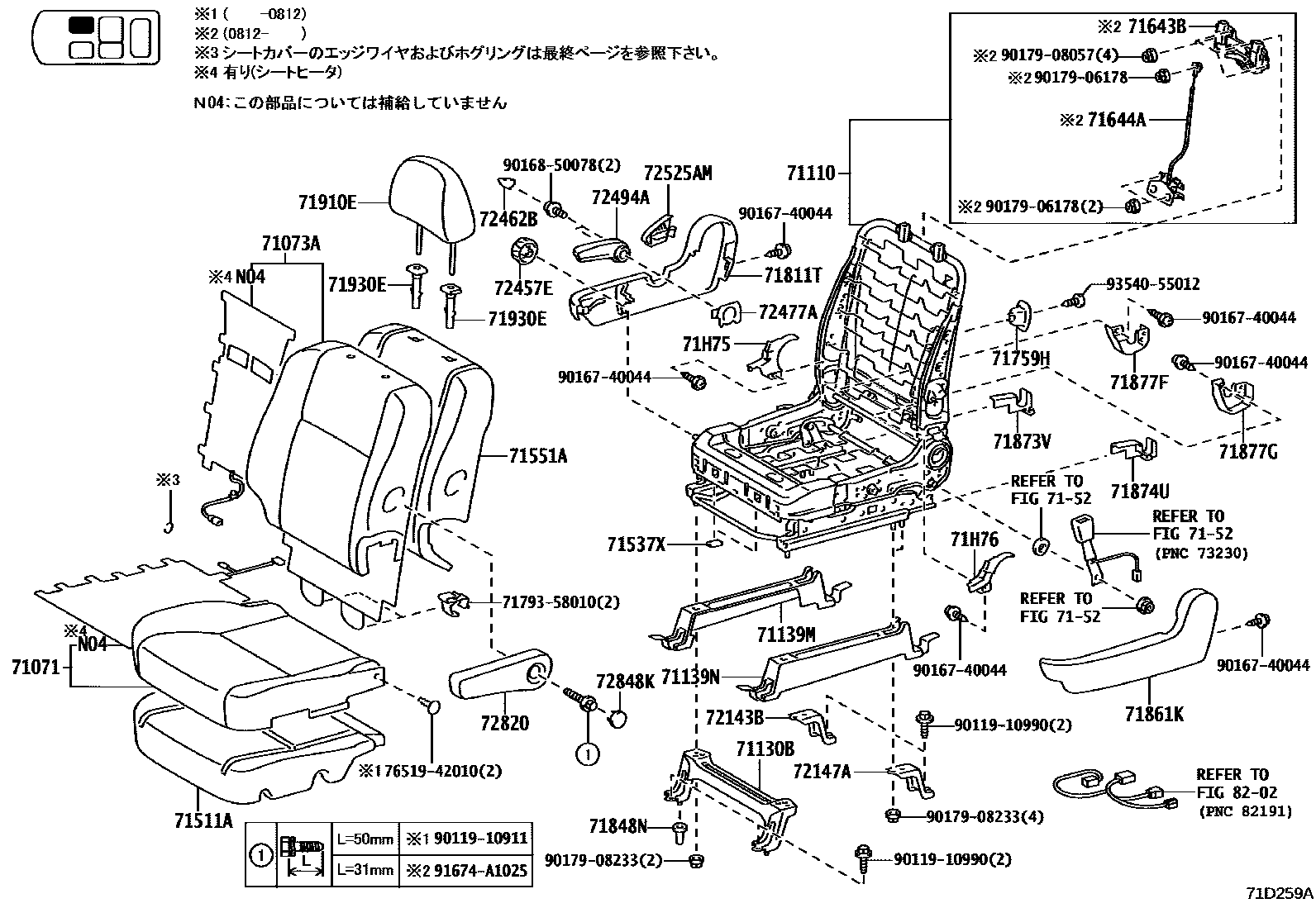

FRONT SEAT & SEAT TRACK

0001 1������ �������� 0002 1������ ��������&��(SRS�������0003 1�������������� & ��(SRS������0004 1������ ������� 0005 1������ �������&��(SRS��������0006 1������ ������� & ��(SRS������0007 1������� �������� 0008 1������� ��������&��(SRS������0009 1������� ��������&��(SRS������0010 1�������������� & �������

71071COVER SUB-ASSY, FRONT SEAT CUSHION, RH

main71071-28B30-E1iACR5#..X..CBU200601-200812

GREGE,TRIM4#

main71071-28B40-B0iACR5#,GSR5#..AERAS..CBU200601-200812

GRAY,TRIM1#

main71071-28B50-E1iACR5#,GSR5#..G..CBU; GSR5#..07S..AERAS; GSR5#..08S..AERAS..CBU200601-200812

main71071-28D70-E0supersedes 71071-28D71-E0iACR5#..X..CBU200812-201012

GREGE,TRIM4#

main71071-28D71-A0iACR5#..X..CBU201204-201605

SHELL,TRIM0#

main71071-28D80-C1iACR5#,GSR5#..AERAS..CBU200812-201012

BLACK,TRIM1#

main71071-28D80-E1iACR5#,GSR5#..AERAS..CBU200812-201012

GREGE,TRIM4#

main71071-28D81-C1iACR5#,GSR5#..AERAS..CBU201012-201204

BLACK,TRIM1#

main71071-28D81-E1iACR5#,GSR5#..AERAS..CBU201012-201204

GREGE,TRIM4#

main71071-28E10-E1iACR5#,GSR5#..G..CBU200812-201012

GREGE,TRIM4#

main71071-28E11-E1iACR5#,GSR5#..G..CBU201012-201204

GREGE,TRIM4#

main71071-28G20-A0iACR5#,GSR5#..AERAS..CBU201204-201605

SHELL,TRIM0#

main71071-28G20-C0iACR5#,GSR5#..AERAS..CBU201204-201605

BLACK,TRIM2#

main71071-28G20-C1iACR5#..AERAS..CBU201605-201910

BLACK,TRIM2#

main71071-28M40-C2iACR5#..AEPR..CBU201605-201910

BLACK,TRIM2#

main71071-28M50-E1iACR5#..AESM201605-201910

BEIGE,TRIM4#

main71071-28M90-C3iACR5#..AEPG201605-201910

BLACK,TRIM2#

main71071-28M90-E3iACR5#..AEPG201605-201910

BURGUNDY,TRIM4#

main71071-28B60-E0iGSR5#..07S..AERAS; GSR5#..07S..G..CBU200601-200812

main71071-28C20-E1iGSR5#..07S..AERAS200706-200812

main71071-28E00-C0iACR5#,GSR5#..07S..AERAS..CBU200907-201012

main71071-28E00-E1iACR5#,GSR5#..07S..AERAS..CBU200907-201012

main71071-28E01-C0iACR5#,GSR5#..07S..AERAS..CBU201012-201204

main71071-28E01-E1iACR5#,GSR5#..07S..AERAS..CBU201012-201204

main71071-28E40-A2supersedes 71071-28G50-A1iACR5#,GSR5#..G; GSR5#..G201204-201409

main71071-28E40-A3supersedes 71071-28G50-A2iACR5#,GSR5#..G; GSR5#..G201409-201605

main71071-28E40-C0iACR5#,GSR5#..07S..AERAS..CBU200812-201204

main71071-28E40-C3iACR5#,GSR5#..07S..AERAS..CBU201204-201409

main71071-28E40-C4iACR5#,GSR5#..07S..AERAS..CBU201409-201605

main71071-28E40-E0iACR5#,GSR5#..G..CBU; GSR5#..G..CBU200812-201204

main71071-28F70-B0iACR5#..07S..AERAS..CBU201010-201204

main71071-28K60-C0iACR5#..07S..AERAS..CBU201304-201409

main71071-28K60-C1iACR5#..07S..AERAS..CBU201409-201605

main71071-28L80-E1iACR5#..07S..AERAS..CBU201409-201605

main71071-28M70-A2iACR5#..AESM201605-201910

71073ACOVER SUB-ASSY, FRONT SEATBACK, RH

main71073-28A91-E0iACR5#..X..CBU200912-201012

GREGE,TRIM4#

main71073-28A92-E0iACR5#..X..CBU201012-201204

GREGE,TRIM4#

main71073-28B00-E0supersedes 71073-28A90-E0iACR5#..X..CBU200812-200912

main71073-28B01-E0iACR5#..X..CBU200912-201101

main71073-28B02-A0iACR5#..08S..X..CBU; ACR5#..X..CBU201204-201605

main71073-28B02-E0iACR5#..X..CBU201101-201204

main71073-28B60-E1supersedes 71073-28B50-E1iACR5#..X..CBU200601-200812

main71073-28B80-B0supersedes 71073-28B70-B0iACR5#,GSR5#..AERAS..CBU; GSR5#..AERAS..CBU200601-200812

main71073-28B90-E1iACR5#,GSR5#..G..CBU; GSR5#..07S..AERAS; GSR5#..08S..AERAS..CBU200601-200812

main71073-28C00-E1iACR5#,GSR5#..G..CBU; GSR5#..07S..AERAS; GSR5#..08S..AERAS..CBU; GSR5#..G..CBU200601-200812

main71073-28C10-E0iGSR5#..07S..AERAS; GSR5#..07S..G..CBU200601-200812

main71073-28C20-E0iGSR5#..07S..AERAS; GSR5#..07S..G..CBU200601-200812

main71073-28E50-B0iACR5#..07S..AERAS..CBU201010-201204

main71073-28E60-B0iACR5#..07S..AERAS..CBU201010-201204

main71073-28F00-C1supersedes 71073-28E90-C1iACR5#,GSR5#..AERAS..CBU200812-200912

main71073-28F00-E1supersedes 71073-28E90-E1iACR5#,GSR5#..AERAS..CBU200812-200912

main71073-28F01-C1supersedes 71073-28E91-C1iACR5#,GSR5#..AERAS..CBU200912-201012

main71073-28F01-E1supersedes 71073-28E91-E1iACR5#,GSR5#..AERAS..CBU200912-201012

main71073-28F02-C1supersedes 71073-28E92-C1iACR5#,GSR5#..AERAS..CBU201012-201204

main71073-28F02-E1supersedes 71073-28E92-E1iACR5#,GSR5#..AERAS..CBU201012-201204

main71073-28F20-E1iACR5#,GSR5#..G..CBU; GSR5#..G..CBU200812-200912

main71073-28F21-E1iACR5#,GSR5#..G..CBU; GSR5#..G..CBU200912-201012

main71073-28F22-E1supersedes 71073-28F12-E1iACR5#,GSR5#..G..CBU; GSR5#..G..CBU201012-201204

main71073-28F70-C0iACR5#,GSR5#..07S..AERAS..CBU200812-200912

main71073-28F70-E0iACR5#,GSR5#..G..CBU; GSR5#..G..CBU200812-200912

main71073-28F71-A1iACR5#,GSR5#..G; GSR5#..G201204-201605

main71073-28F71-C0iACR5#,GSR5#..07S..AERAS..CBU200912-201204

main71073-28F71-C2iACR5#,GSR5#..07S..AERAS..CBU201204-201605

main71073-28F71-E0iACR5#,GSR5#..G..CBU; GSR5#..G..CBU200912-201204

main71073-28F80-C0iACR5#,GSR5#..07S..AERAS..CBU200812-200912

main71073-28F80-E0supersedes 71073-28F10-E1iACR5#,GSR5#..G..CBU; GSR5#..G..CBU200812-200912

main71073-28F81-A1iACR5#,GSR5#..G; GSR5#..G201204-201605

main71073-28F81-C0iACR5#,GSR5#..07S..AERAS..CBU200912-201204

main71073-28F81-C2iACR5#,GSR5#..07S..AERAS..CBU201204-201605

main71073-28F81-E0iACR5#,GSR5#..G..CBU; GSR5#..G..CBU200912-201204

main71073-28J60-C0iACR5#,GSR5#..07S..AERAS..CBU200907-200912

main71073-28J60-E0iACR5#,GSR5#..07S..AERAS..CBU200907-200912

main71073-28J61-C0iACR5#,GSR5#..07S..AERAS..CBU200912-201012

main71073-28J61-E0iACR5#,GSR5#..07S..AERAS..CBU200912-201012

main71073-28J62-C0iACR5#,GSR5#..07S..AERAS..CBU201012-201204

main71073-28J62-E0iACR5#,GSR5#..07S..AERAS..CBU201012-201204

main71073-28J70-C0iACR5#,GSR5#..07S..AERAS..CBU200907-200912

main71073-28J70-E0iACR5#,GSR5#..07S..AERAS..CBU200907-200912

main71073-28J71-C0iACR5#,GSR5#..07S..AERAS..CBU200912-201012

main71073-28J71-E0iACR5#,GSR5#..07S..AERAS..CBU200912-201012

main71073-28J72-C0iACR5#,GSR5#..07S..AERAS..CBU201012-201204

main71073-28J72-E0iACR5#,GSR5#..07S..AERAS..CBU201012-201204

main71073-28K30-A0iACR5#,GSR5#..AERAS..CBU; ACR5#..08S..AERAS..CBU201204-201605

main71073-28K30-C0iACR5#,GSR5#..AERAS..CBU; ACR5#..08S..AERAS..CBU201204-201605

main71073-28K30-C2supersedes 71073-28K20-C1iACR5#..AERAS..CBU201605-201910

main71073-28K50-A0iACR5#,GSR5#..G; GSR5#..G201204-201605

main71073-28P00-C0iACR5#..07S..AERAS..CBU201304-201605

main71073-28P10-C0iACR5#..07S..AERAS..CBU201304-201605

main71073-28P80-E0iACR5#..07S..AERAS..CBU201409-201605

main71073-28P90-E0iACR5#..07S..AERAS..CBU201409-201605

main71073-28Q70-C2supersedes 71073-28Q60-C1iACR5#..AEPR..CBU201605-201910

main71073-28R10-E2supersedes 71073-28R00-E1iACR5#..AESM201605-201910

main71073-28R40-A2iACR5#..AESM201605-201910

main71073-28R50-A3iACR5#..AESM201605-201910

main71073-28R90-C2supersedes 71073-28R80-C2iACR5#..AEPG201605-201910

main71073-28R90-E2supersedes 71073-28R80-E2iACR5#..AEPG201605-201910

71110FRAME ASSY, FRONT SEAT W/ADJUSTER, RH

main71110-28090iACR5#,GSR5#..(AERAS,X)..CBU200601-200812

main71110-28110iACR5#,GSR5#..G..CBU; GSR5#..07S..AERAS; GSR5#..08S..AERAS..CBU200601-200812

main71110-28270iACR5#,GSR5#..(AERAS,X)..CBU200812-201204

main71110-28271iACR5#,GSR5#..(AERAS,X)..CBU201204-201207

main71110-28272iACR5#,GSR5#..(AERAS,X)..CBU201207-201407

main71110-28273iACR5#,GSR5#..(AERAS,X)..CBU201408-201605

main71110-28330iACR5#,GSR5#..07S..AERAS..CBU; ACR5#,GSR5#..G201204-201207

main71110-28331iACR5#,GSR5#..07S..AERAS..CBU; ACR5#,GSR5#..G201207-201605

71130BLEG ASSY, FRONT SEAT, RH

main71130-28050iACR5#,GSR5#..CBU200601-200812

71139MCOVER, FRONT SEAT LEG, RH OUTER

main71139-28110-A0iACR5#,GSR5#..(AERAS,X)..CBU201204-201605

SHELL,TRIM0#

main71139-28110-B0iACR5#,GSR5#..AERAS..CBU201204-201409

DK.GRAY,TRIM2#

main71139-28110-C0iACR5#..07S..AERAS..CBU; GSR5#..AERAS;ACR5#..08S..AERAS..CBU201409-201605

BLACK,TRIM2#; BLACK,TRIM2#,4#

main71139-28110-E0iACR5#,GSR5#..(AERAS,X)..CBU200812-201204

GREGE,TRIM4#

main71139-28120-A0iACR5#,GSR5#..G201204-201605

SHELL,TRIM0#

main71139-28120-C0iACR5#..AEPG; ACR5#..AEPR..CBU201605-201910

BLACK,TRIM2#; BLACK,TRIM2#,4#

main71139-28120-E0iACR5#,GSR5#..G..CBU; GSR5#..07S..AERAS; GSR5#..08S..AERAS..CBU200601-200812

main71139-28120-B0iACR5#,GSR5#..07S..AERAS..CBU200812-201204

71139NCOVER, FRONT SEAT LEG, RH INNER

main71149-28100-A0iACR5#,GSR5#..(AERAS,X)..CBU201204-201605

SHELL,TRIM0#

main71149-28100-B0iACR5#,GSR5#..AERAS..CBU201204-201409

DK.GRAY,TRIM2#

main71149-28100-C0iACR5#..07S..AERAS..CBU; GSR5#..AERAS;ACR5#..08S..AERAS..CBU201409-201605

BLACK,TRIM2#; BLACK,TRIM2#,4#

main71149-28100-E0iACR5#,GSR5#..07S..AERAS..CBU200608-200812

GREGE,TRIM4#

main71149-28110-A0iACR5#,GSR5#..G201204-201605

SHELL,TRIM0#

main71149-28110-C0iACR5#..AEPG; ACR5#..AEPR..CBU201605-201910

BLACK,TRIM2#; BLACK,TRIM2#,4#

main71149-28110-E0iACR5#,GSR5#..G..CBU; GSR5#..07S..AERAS; GSR5#..08S..AERAS..CBU200601-200812

main71149-28110-B0iACR5#,GSR5#..07S..AERAS..CBU200812-201204

71511APAD, FRONT SEAT CUSHION, RH

main71511-28300iACR5#,GSR5#..G..CBU; GSR5#..07S..AERAS; GSR5#..08S..AERAS..CBU200601-200812

main71511-28320iACR5#..(AERAS,AESM)..CBU201605-201910

main71511-28360iACR5#..(AEPG,AEPR)..CBU201605-201910

main71511-28290iACR5#,GSR5#..07S..AERAS..CBU200907-201204

7152SEAT BELT

→ Go to FIG 71-52

71537XPROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT)

main71537-26010×2iACR5#,GSR5#..(AERAS,X)..CBU201204-201605

71551APAD, FRONT SEATBACK, RH

main71551-28470iACR5#,GSR5#..G..CBU; GSR5#..07S..AERAS; GSR5#..08S..AERAS..CBU200601-200606

main71551-28540iACR5#,GSR5#..G..CBU; GSR5#..07S..AERAS; GSR5#..08S..AERAS..CBU200606-200812

main71551-28690supersedes 71551-28680iACR5#..AESM; ACR5#..CBU201605-201910

main71551-28700iACR5#,GSR5#..07S..AERAS..CBU; ACR5#,GSR5#..G..CBU200812-201204

main71551-28710iACR5#,GSR5#..07S..AERAS..CBU; ACR5#,GSR5#..G; GSR5#..G201204-201605

71643BUNIT, ACTIVE HEADREST, UPR

main71643-12011×2iACR5#,GSR5#..08S..AERAS..CBU; ACR5#,GSR5#..08S..CBU; ACR5#,GSR5#..CBU200812-201204

71644AUNIT, ACTIVE HEADREST, LWR

main71644-12030×2iACR5#,GSR5#..CBU; ACR5#..08S..AERAS..CBU; ACR5#..08S..CBU201204-201605

71759HHOOK, FRONT SEATBACK

main71759-28050-A1iACR5#,GSR5#..CBU201204-201605

SHELL,TRIM0#

main71759-28050-B0iACR5#,GSR5#..AERAS..CBU200812-201204

DK.GRAY,TRIM1#

main71759-28050-C0iACR5#..(AEPG,AEPR,AERAS)..CBU; ACR5#..AESM201605-201910

main71759-28050-E0iACR5#,GSR5#..CBU200812-201204

GREGE,TRIM4#

main71759-28050-E4iACR5#..AEPG201605-201910

NOBLE BROWN,TRIM4#

71811TSHIELD, FRONT SEAT CUSHION, RH

main71811-28340-A0iACR5#,GSR5#..(AERAS,X)..CBU201204-201605

SHELL,TRIM0#

main71811-28340-B0iACR5#,GSR5#..AERAS..CBU200601-200812

DK.GRAY,TRIM1#

main71811-28340-C0iACR5#..07S..AERAS..CBU; GSR5#..AERAS;ACR5#..08S..AERAS..CBU201409-201605

BLACK,TRIM2#; BLACK,TRIM2#,4#

main71811-28340-E0iACR5#,GSR5#..07S..AERAS..CBU200608-200812

GREGE,TRIM4#

main71811-28360-A0iACR5#,GSR5#..G201204-201605

SHELL,TRIM0#

main71811-28360-C0iACR5#..AEPG; ACR5#..AEPR..CBU201605-201910

BLACK,TRIM2#; BLACK,TRIM2#,4#

main71811-28360-E0iACR5#,GSR5#..G..CBU; GSR5#..07S..AERAS; GSR5#..08S..AERAS..CBU200601-200812

main71811-28360-B2iACR5#,GSR5#..07S..AERAS..CBU200812-201204

71848NCAP, FRONT SEAT ADJUSTER COVER, RH NO.1

main71848-33010iACR5#,GSR5#..CBU200812-201204

71861KSHIELD, FRONT SEAT CUSHION, INNER RH

main71861-28030-A0iACR5#,GSR5#..(AERAS,X)..CBU201204-201605

SHELL,TRIM0#

main71861-28030-B0iACR5#,GSR5#..AERAS..CBU201204-201409

DK.GRAY,TRIM2#

main71861-28030-C0iACR5#..07S..AERAS..CBU; GSR5#..AERAS;ACR5#..08S..AERAS..CBU201409-201605

BLACK,TRIM2#; BLACK,TRIM2#,4#

main71861-28030-E0iACR5#,GSR5#..(AERAS,X)..CBU200812-201204

GREGE,TRIM4#

main71861-28040-A0iACR5#,GSR5#..G201204-201605

SHELL,TRIM0#

main71861-28040-C0iACR5#..AEPG; ACR5#..AEPR..CBU201605-201910

BLACK,TRIM2#; BLACK,TRIM2#,4#

main71861-28040-E0iACR5#,GSR5#..G..CBU; GSR5#..07S..AERAS; GSR5#..08S..AERAS..CBU200601-200812

main71861-28040-B0iACR5#..07S..AERAS..CBU201304-201409

71873VSHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-28010iACR5#,GSR5#..(AERAS,X)..CBU; ACR5#,GSR5#..08S..(AERAS,X)..CBU; ACR5#,GSR5#..08S..AERAS..CBU; ACR5#,GSR5#..G..CBU; GSR5#..07S..AERAS; GSR5#..08S..AERAS..CBU200601-200812

main71873-28011iACR5#,GSR5#..(AERAS,X)..CBU; ACR5#,GSR5#..07S..AERAS..CBU; ACR5#,GSR5#..G; ACR5#..08S..AERAS..CBU; ACR5#..08S..CBU201301-201605

main71874-30020iACR5#,GSR5#..G..CBU; GSR5#..07S..AERAS; GSR5#..08S..AERAS..CBU; GSR5#..08S..G..CBU200601-200812

71874USHIELD, FRONT SEAT CUSHION, LOWER LH

main71873-30070iACR5#,GSR5#..G..CBU; GSR5#..07S..AERAS; GSR5#..08S..AERAS..CBU; GSR5#..08S..G..CBU200601-200812

main71874-28010iACR5#,GSR5#..(AERAS,X)..CBU; ACR5#,GSR5#..08S..(AERAS,X)..CBU; ACR5#,GSR5#..08S..AERAS..CBU; ACR5#,GSR5#..G..CBU; GSR5#..07S..AERAS; GSR5#..08S..AERAS..CBU200601-200812

main71874-28011iACR5#,GSR5#..(AERAS,X)..CBU; ACR5#,GSR5#..07S..AERAS..CBU; ACR5#,GSR5#..G; ACR5#..08S..AERAS..CBU; ACR5#..08S..CBU201301-201605

71877FCOVER, RECLINING ADJUSTER INSIDE, RH(FOR RH SEAT)

main71875-58050iACR5#,GSR5#..G..CBU; GSR5#..07S..AERAS; GSR5#..08S..AERAS..CBU200601-200812

main71875-58060iACR5#,GSR5#..(AERAS,X)..CBU200601-200812

71877GCOVER, RECLINING ADJUSTER INSIDE, LH(FOR RH SEAT)

main71876-58050iACR5#,GSR5#..G..CBU; GSR5#..07S..AERAS; GSR5#..08S..AERAS..CBU200601-200812

main71876-58060×2iACR5#,GSR5#..(AERAS,X)..CBU; ACR5#,GSR5#..08S..AERAS..CBU; ACR5#,GSR5#..08S..CBU200812-201204

71910EHEADREST ASSY, FRONT SEAT, RH

main71910-28A70-E1iACR5#..X..CBU200601-200812

GREGE,TRIM4#

main71910-28A80-B1iACR5#,GSR5#..AERAS..CBU200601-200812

GRAY,TRIM1#

main71910-28A90-E1iACR5#,GSR5#..G..CBU; GSR5#..07S..AERAS; GSR5#..08S..AERAS..CBU200601-200812

main71910-28C30-A0iACR5#..X..CBU201204-201605

SHELL,TRIM0#

main71910-28C30-E0iACR5#..X..CBU200812-201204

GREGE,TRIM4#

main71910-28C40-C1iACR5#,GSR5#..AERAS..CBU200812-201204

BLACK,TRIM1#

main71910-28C40-E1iACR5#,GSR5#..AERAS..CBU200812-201204

GREGE,TRIM4#

main71910-28C50-E1iACR5#,GSR5#..G..CBU200812-201012

GREGE,TRIM4#

main71910-28C51-E1iACR5#,GSR5#..07S..AERAS..CBU; ACR5#,GSR5#..G..CBU201012-201204

main71910-28D00-A0iACR5#,GSR5#..AERAS..CBU201204-201605

SHELL,TRIM0#

main71910-28D00-C0iACR5#,GSR5#..AERAS..CBU201204-201605

BLACK,TRIM2#

main71910-28F20-C0iACR5#..AEPG201605-201910

BLACK,TRIM2#

main71910-28F20-C2iACR5#..AEPR..CBU201605-201910

BLACK,TRIM2#

main71910-28F20-E0iACR5#..AESM201605-201910

BEIGE,TRIM4#

main71910-28F20-E1iACR5#..AEPG201605-201910

BURGUNDY,TRIM4#

main71910-28B00-A1iACR5#,GSR5#..G; GSR5#..G201204-201412

main71910-28B00-C0iACR5#,GSR5#..07S..AERAS..CBU200812-201204

main71910-28B00-C2iACR5#,GSR5#..07S..AERAS..CBU201204-201412

main71910-28B00-E0iGSR5#..07S..AERAS; GSR5#..07S..G..CBU200601-200812

main71910-28B90-C0iACR5#..07S..AERAS..CBU201010-201204

main71910-28C50-C0iACR5#,GSR5#..07S..AERAS..CBU200907-201012

main71910-28C51-C0iACR5#,GSR5#..07S..AERAS..CBU201012-201204

main71910-28E60-C0iACR5#..07S..AERAS..CBU201304-201409

main71910-28E60-C1iACR5#..07S..AERAS..CBU201409-201605

main71910-28E80-E1iACR5#..07S..AERAS..CBU201409-201605

main71910-28F10-A0supersedes 71910-28D10-A1iACR5#,GSR5#..G; GSR5#..G201412-201605

main71910-28F10-C1iACR5#,GSR5#..07S..AERAS..CBU201412-201605

main71910-28F30-A1iACR5#..AESM201605-201910

71930ESUPPORT ASSY, FRONT SEAT HEADREST, RH

main71930-42020-B4iACR5#,GSR5#..AERAS..CBU200601-200708

main71930-42020-E1iGSR5#..CBU;ACR5#..(G,X)..CBU200601-200708

main71930-52030-A2iACR5#..AESM201605-201910

main71930-52030-B0iACR5#,GSR5#..AERAS..CBU201204-201409

main71930-52030-C0iACR5#..07S..AERAS..CBU; GSR5#..AERAS;ACR5#..08S..AERAS..CBU201409-201605

main71930-52030-E0iACR5#,GSR5#..(G,X)..CBU; ACR5#..07S..AERAS..CBU; GSR5#..07S..AERAS; GSR5#..08S..AERAS..CBU200709-200812

main71930-52030-L2iACR5#..AEPG201605-201910

main71931-42020-A5iACR5#,GSR5#..CBU201204-201605

main71931-42020-B4iACR5#,GSR5#..AERAS..CBU200812-201204

main71931-42020-C0iACR5#..(AEPG,AEPR,AERAS)..CBU; ACR5#..AESM201605-201910

main71931-42020-E1iACR5#,GSR5#..CBU200812-201204

main71931-42020-L9iACR5#..AEPG201605-201910

71H75COVER, RECLINING ADJUSTER INSIDE, RH OUTER(FOR RH SEAT)

main71875-58030-A3iACR5#,GSR5#..G201204-201605

SHELL,TRIM0#

main71875-58030-C0iACR5#..AEPG; ACR5#..AEPR..CBU201605-201910

BLACK,TRIM2#; BLACK,TRIM2#,4#

main71875-58030-E1iACR5#,GSR5#..G..CBU; GSR5#..07S..AERAS; GSR5#..08S..AERAS..CBU200601-200812

main71875-58040-A2iACR5#,GSR5#..(AERAS,X)..CBU201204-201605

SHELL,TRIM0#

main71875-58040-B0iACR5#,GSR5#..AERAS..CBU201204-201409

DK.GRAY,TRIM2#

main71875-58040-C0iACR5#..AERAS..CBU; ACR5#..AESM201605-201910

BLACK,TRIM0#,4#; BLACK,TRIM2#

main71875-58040-E1×2iACR5#,GSR5#..(AERAS,X)..CBU; ACR5#,GSR5#..08S..AERAS..CBU; ACR5#,GSR5#..08S..CBU200812-201204

main71875-58030-B2iACR5#,GSR5#..07S..AERAS..CBU201204-201409

71H76COVER, RECLINING ADJUSTER INSIDE, LH(FOR RH SEAT)

main71875-48050-A2iACR5#,GSR5#..G201204-201605

SHELL,TRIM0#

main71875-48050-C0iACR5#..AEPG; ACR5#..AEPR..CBU201605-201910

BLACK,TRIM2#; BLACK,TRIM2#,4#

main71875-48050-E0iACR5#,GSR5#..G..CBU; GSR5#..07S..AERAS; GSR5#..08S..AERAS..CBU200601-200812

main71876-58040-A2iACR5#,GSR5#..(AERAS,X)..CBU201204-201605

SHELL,TRIM0#

main71876-58040-B0×2iACR5#,GSR5#..08S..AERAS..CBU; ACR5#,GSR5#..AERAS..CBU200812-201204

main71876-58040-C0iACR5#..07S..AERAS..CBU; GSR5#..AERAS;ACR5#..08S..AERAS..CBU201409-201605

BLACK,TRIM2#; BLACK,TRIM2#,4#

main71876-58040-E1×2iACR5#,GSR5#..(AERAS,X)..CBU; ACR5#,GSR5#..08S..AERAS..CBU; ACR5#,GSR5#..08S..CBU200812-201204

main71875-48050-B2iACR5#,GSR5#..07S..AERAS..CBU201204-201409

72143BBRACKET, FRONT SEAT TRACK, LOWER REAR RH(FOR RH SEAT)

main72143-28100iACR5#,GSR5#..(AERAS,X)..CBU200601-200812

main72143-28110iACR5#,GSR5#..G..CBU; GSR5#..07S..AERAS; GSR5#..08S..AERAS..CBU200601-200812

72147ABRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH

main72143-28100iACR5#..(AERAS,AESM)..CBU201605-201910

main72147-28090supersedes 72143-28100iACR5#,GSR5#..(AERAS,G)..CBU; ACR5#..X..CBU200601-200812

72457EKNOB, VERTICAL SEAT ADJUSTER, RH

main72457-58010-A2iACR5#,GSR5#..(AERAS,X)..CBU201204-201605

SHELL,TRIM0#

main72457-58010-B0iACR5#,GSR5#..AERAS..CBU201204-201409

DK.GRAY,TRIM2#

main72457-58010-C0iACR5#..AERAS..CBU; ACR5#..AESM201605-201910

BLACK,TRIM0#,4#; BLACK,TRIM2#

main72457-58010-E2iACR5#,GSR5#..07S..AERAS..CBU200608-200812

GREGE,TRIM4#

72462BCOVER, VERTICAL ADJUSTER RH

main72462-60010-A1iACR5#,GSR5#..(AERAS,X)..CBU201204-201605

SHELL,TRIM0#

main72462-60010-B3iACR5#,GSR5#..AERAS..CBU201204-201409

DK.GRAY,TRIM2#

main72462-60010-C0iACR5#..AERAS..CBU; ACR5#..AESM201605-201910

BLACK,TRIM0#,4#; BLACK,TRIM2#

main72462-60010-E2iACR5#,GSR5#..07S..AERAS..CBU200608-200812

GREGE,TRIM4#

72477ASPACER, VERTICAL ADJUSTER

main72477-52010-C0iACR5#,GSR5#..(AERAS,X)..CBU201204-201605

BLACK

main72477-52010iACR5#..07S..AERAS..CBU200608-200706

72494AHANDLE, FRONT SEAT VERTICAL ADJUSTER, RH

main72494-60020-A1iACR5#,GSR5#..(AERAS,X)..CBU201204-201605

SHELL,TRIM0#

main72494-60020-B3iACR5#,GSR5#..AERAS..CBU200812-201204

DK.GRAY,TRIM1#

main72494-60020-C0iACR5#..AERAS..CBU; ACR5#..AESM201605-201910

BLACK,TRIM0#,4#; BLACK,TRIM2#

main72494-60020-E2iACR5#..X..CBU200601-200812

GREGE,TRIM4#

72820ARMREST ASSY, FRONT SEAT, LH(FOR RH SEAT)

main72880-28A20-B0iACR5#,GSR5#..AERAS..CBU200601-200812

DARK GRAY,TRIM1#

main72880-28A30-E1iACR5#,GSR5#..(G,X)..CBU; GSR5#..07S..AERAS; GSR5#..08S..AERAS..CBU200601-200812

main72890-28B50-E0iACR5#,GSR5#..G..CBU200812-201012

GREGE,TRIM4#

main72890-28B51-E0iACR5#,GSR5#..07S..AERAS..CBU; ACR5#,GSR5#..G..CBU201012-201204

main72890-28D00-E0supersedes 72890-28D01-E0iACR5#..X..CBU200812-201012

GREGE,TRIM4#

main72890-28D01-A1iACR5#..X..CBU201204-201605

SHELL,TRIM0#

main72890-28D10-C1iACR5#,GSR5#..AERAS..CBU200812-201012

BLACK,TRIM1#

main72890-28D10-E0iACR5#,GSR5#..AERAS..CBU200812-201012

GREGE,TRIM4#

main72890-28D11-A1iACR5#,GSR5#..AERAS..CBU201204-201605

SHELL,TRIM0#

main72890-28D11-C1iACR5#,GSR5#..AERAS..CBU201012-201204

BLACK,TRIM1#

main72890-28D11-C3iACR5#..AERAS..CBU201605-201910

BLACK,TRIM2#

main72890-28D11-E0iACR5#,GSR5#..AERAS..CBU201012-201204

GREGE,TRIM4#

main72890-28L20-C1iACR5#..AEPG201605-201910

BLACK,TRIM2#

main72890-28L20-C2iACR5#..AEPR..CBU201605-201910

BLACK,TRIM2#

main72890-28L20-E1iACR5#..AEPG201605-201910

BURGUNDY,TRIM4#

main72890-28L30-E1iACR5#..AESM201605-201910

BEIGE,TRIM4#

main72880-28A40-E0iGSR5#..07S..AERAS; GSR5#..07S..G..CBU200601-200812

main72890-28B50-B0iACR5#,GSR5#..07S..AERAS..CBU200907-201012

main72890-28B51-B0iACR5#,GSR5#..07S..AERAS..CBU201012-201204

main72890-28C60-C0iACR5#..07S..AERAS..CBU201010-201204

main72890-28D20-A0iACR5#,GSR5#..G; GSR5#..G201204-201605

main72890-28D20-C0iACR5#,GSR5#..07S..AERAS..CBU201204-201605

main72890-28D20-E0iACR5#,GSR5#..G..CBU; GSR5#..G..CBU200812-201204

main72890-28G90-C0iACR5#..07S..AERAS..CBU201304-201605

main72890-28J30-E0iACR5#..07S..AERAS..CBU201409-201605

main72890-28L40-A1iACR5#..AESM201605-201910

72848KCAP, SEAT ARMREST, NO.1(FOR RH SEAT)

main72848-28030-A2iACR5#,GSR5#..CBU201204-201605

SHELL,TRIM0#

main72848-28030-B5iACR5#,GSR5#..AERAS..CBU200812-201204

DK.GRAY,TRIM1#

main72848-28030-C0iACR5#..07S..AERAS..CBU; GSR5#..AERAS;ACR5#..08S..AERAS..CBU201409-201605

BLACK,TRIM2#; BLACK,TRIM2#,4#

main72848-28030-E1iACR5#,GSR5#..(G,X)..CBU; GSR5#..07S..AERAS; GSR5#..08S..AERAS..CBU200601-200812

main72848-28030-E8iACR5#..AEPG201605-201910

BURGUNDY,TRIM4#

main72848-28030-A8iACR5#..AESM201605-201910

8202WIRING & CLAMP

→ Go to FIG 82-02

7179358010PLATE, REAR SEAT UNDER BOARD SET, REAR CENTER RH

main71793-58010

7651942010CLIP, FRONT END PANEL MOULDING, LH

main76519-42010

9011910911

main90119-10911

9011910990

main90119-10990

9016740044

main90167-40044

9016850078

main90168-50078

9017906178

main90179-06178

9017908057

main90179-08057

9017908233

main90179-08233

91674A1025

main91674-A1025

9354055012

main93540-55012

44 parts on this diagram · 10 diagrams in section
