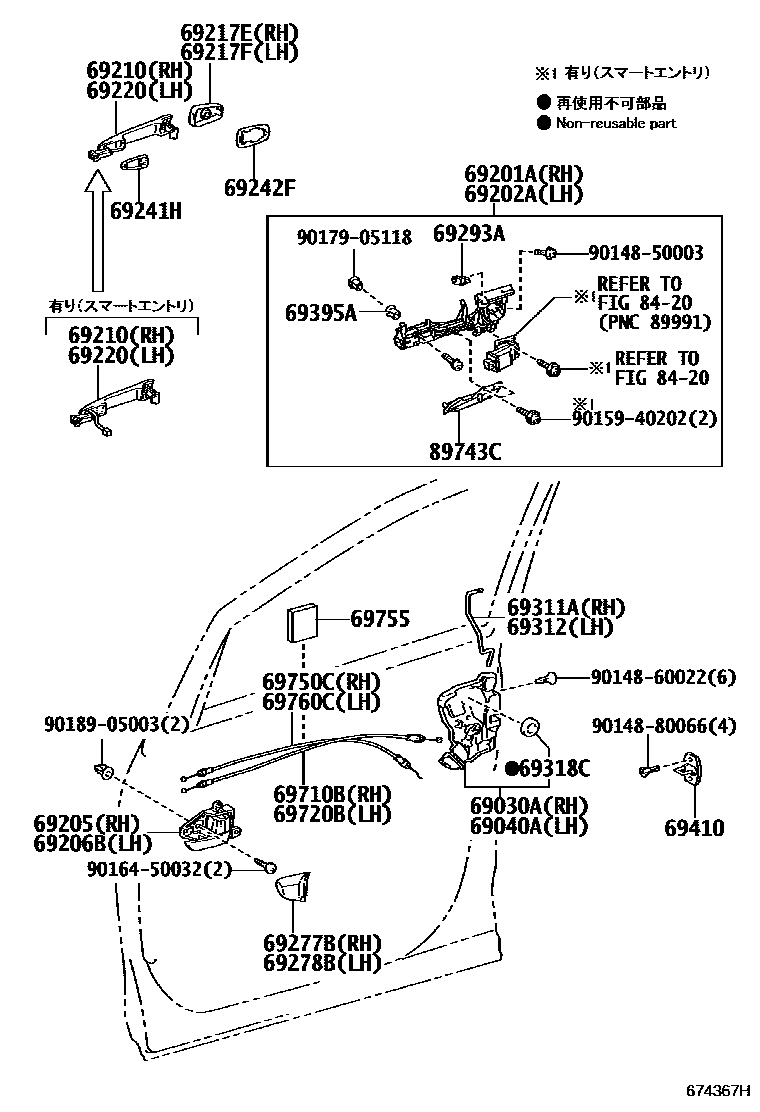

FRONT DOOR LOCK & HANDLE
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
SHELL,TRIM0#
GRAY,TRIM1#
MD.GRAY,TRIM1#
BLACK,TRIM2#
BLACK,TRIM0#,4#
BLACK,TRIM2#,4#
GREGE,TRIM4#
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
SHELL,TRIM0#
GRAY,TRIM1#
MD.GRAY,TRIM1#
BLACK,TRIM2#
BLACK,TRIM2#,4#
BLACK,TRIM0#,4#
GREGE,TRIM4#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
sub69210-20410
sub69210-20410
sub69210-20410
sub69210-20410
sub69210-30290
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
sub69250-30010
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
sub69250-30020
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
sub69210-20410
sub69210-20410
sub69210-20410
sub69210-20410
sub69210-30290
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242FPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH
GREGE,TRIM4#
sub69297-30030
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69395ABUSHING(FOR FRONT DOOR OUTSIDE HANDLE)
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69755SILENCER, FRONT DOOR LOCK LINK
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
8420
89743CBRACKET, ELECTRICAL KEY WIRE HARNESS
9014850003
main90148-50003
9014860022
main90148-60022
9014880066
main90148-80066
9015940202
main90159-40202
9016450032
main90164-50032
9017905118
main90179-05118
9018905003
main90189-05003
34 parts on this diagram · 1 diagram in section
