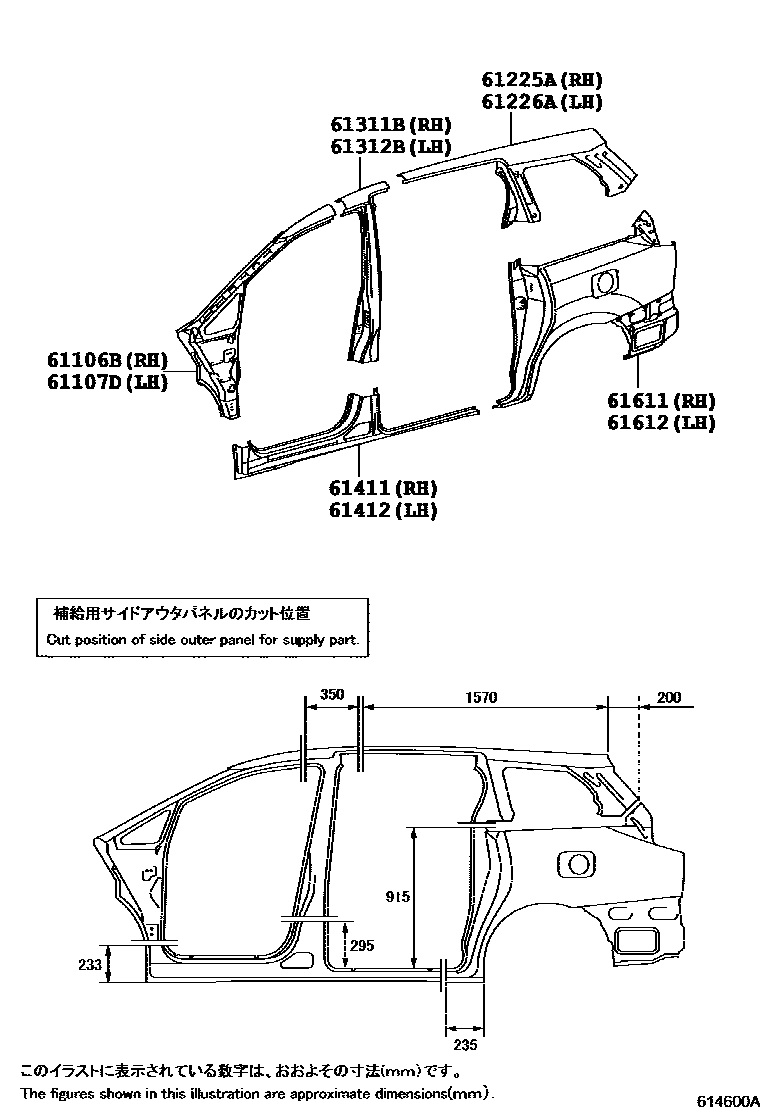

SIDE MEMBER

0001 1������� 0002 1�������,RH 0003 1�������,LH

61106BPILLAR SUB-ASSY, FRONT, RH

main61106-28040iACR5#,GSR5#..CBU200812-201204

61107DPILLAR SUB-ASSY, FRONT, LH

main61107-28040iACR5#,GSR5#..CBU200812-201204

61225ARAIL, ROOF SIDE OUTER UPPER NO.1, RH

main61225-28010iACR5#,GSR5#..CBU200601-200812

61226ARAIL, ROOF SIDE OUTER UPPER NO.1, LH

main61226-28010iACR5#,GSR5#..CBU200601-200812

61311BPILLAR, CENTER BODY, OUTER RH

main61311-28130iACR5#,GSR5#..CBU200601-200812

61312BPILLAR, CENTER BODY, OUTER LH

main61312-28130iACR5#,GSR5#..CBU200601-200812

61411PANEL, ROCKER, OUTER RH

main61411-28070iACR5#,GSR5#..CBU200601-200812

61412PANEL, ROCKER, OUTER LH

main61412-28060iACR5#,GSR5#..CBU200812-201204

61611PANEL, QUARTER, RH

main61601-28A60iACR5#,GSR5#..(G,X)..CBU200812-200903

main61601-28A61iACR5#,GSR5#..(G,X)..CBU201204-201605

main61601-28A70iACR5#,GSR5#..AERAS..CBU200601-200812

main61601-28A71iACR5#,GSR5#..AERAS..CBU200904-201204

61612PANEL, QUARTER, LH

main61602-28870iACR5#,GSR5#..(G,X)..CBU200601-200812

main61602-28871iACR5#,GSR5#..(G,X)..CBU200904-201204

main61602-28880iACR5#,GSR5#..AERAS..CBU200601-200812

main61602-28881iACR5#,GSR5#..AERAS..CBU200904-201204

10 parts on this diagram · 3 diagrams in section
