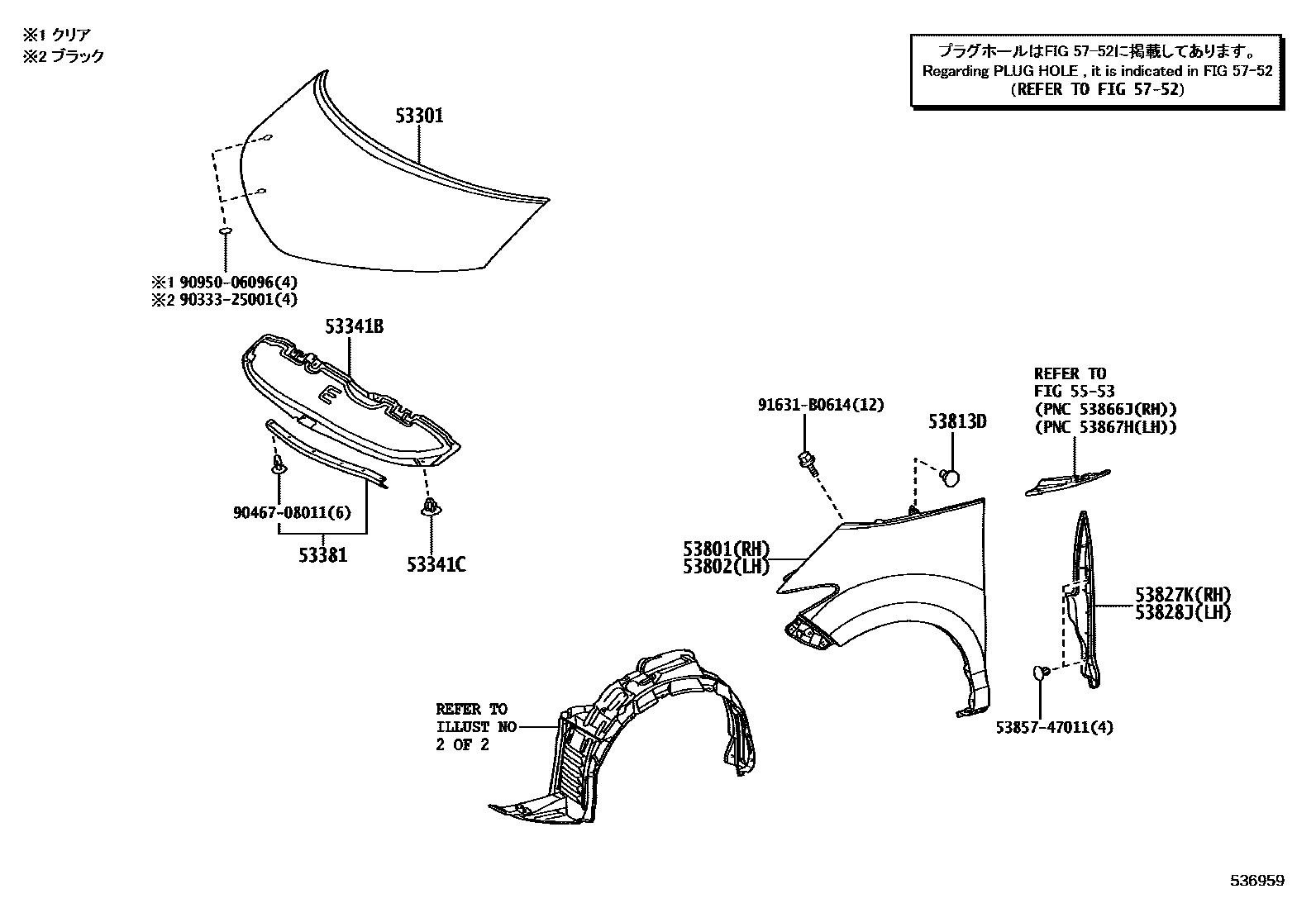

HOOD & FRONT FENDER

0001 1 0002 1�������� 0003 1 0004 1��������

53301HOOD SUB-ASSY

main53301-28110iACR5#,GSR5#..CBU200601-200812

main53301-28180iACR5#..CBU201605-201910

53341BINSULATOR, HOOD

main53341-28050iACR5#,GSR5#..CBU200601-200812

main53341-28090iACR5#..CBU201605

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050×5iACR5#,GSR5#..CBU200601-200812

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-28090iACR5#..CBU201605

53801FENDER SUB-ASSY, FRONT RH

main53811-28080iACR5#,GSR5#..(G,X)..CBU201204-201605

main53811-28090iACR5#,GSR5#..AERAS..CBU200601-200812

main53811-28091iACR5#,GSR5#..AERAS..CBU200812-201204

main53811-28220iACR5#..CBU201605

53802FENDER SUB-ASSY, FRONT LH

main53812-28080iACR5#,GSR5#..(G,X)..CBU200812-201204

main53812-28090iACR5#,GSR5#..AERAS..CBU200601-200812

main53812-28091iACR5#,GSR5#..AERAS..CBU201204-201605

main53812-28280iACR5#..CBU201605

53813DEXTENSION, FRONT FENDER

main53813-52020×2iACR5#,GSR5#..CBU200601-200812

53827KPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-28080iACR5#,GSR5#..CBU200601-200812

main53827-28081iACR5#,GSR5#..CBU201210-201605

main53827-28150iACR5#..CBU201605

53828JPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-28060iACR5#,GSR5#..CBU200601-200812

main53828-28061iACR5#,GSR5#..CBU201210-201605

main53828-28170iACR5#..CBU201605

5553COWL PANEL & WINDSHIELD GLASS

→ Go to FIG 55-53

5752HOLE PLUG

→ Go to FIG 57-52

5385747011RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-47011

9033325001

main90333-25001

9046708011

main90467-08011

9095006096

main90950-06096

91631B0614

main91631-B0614

16 parts on this diagram · 4 diagrams in section
