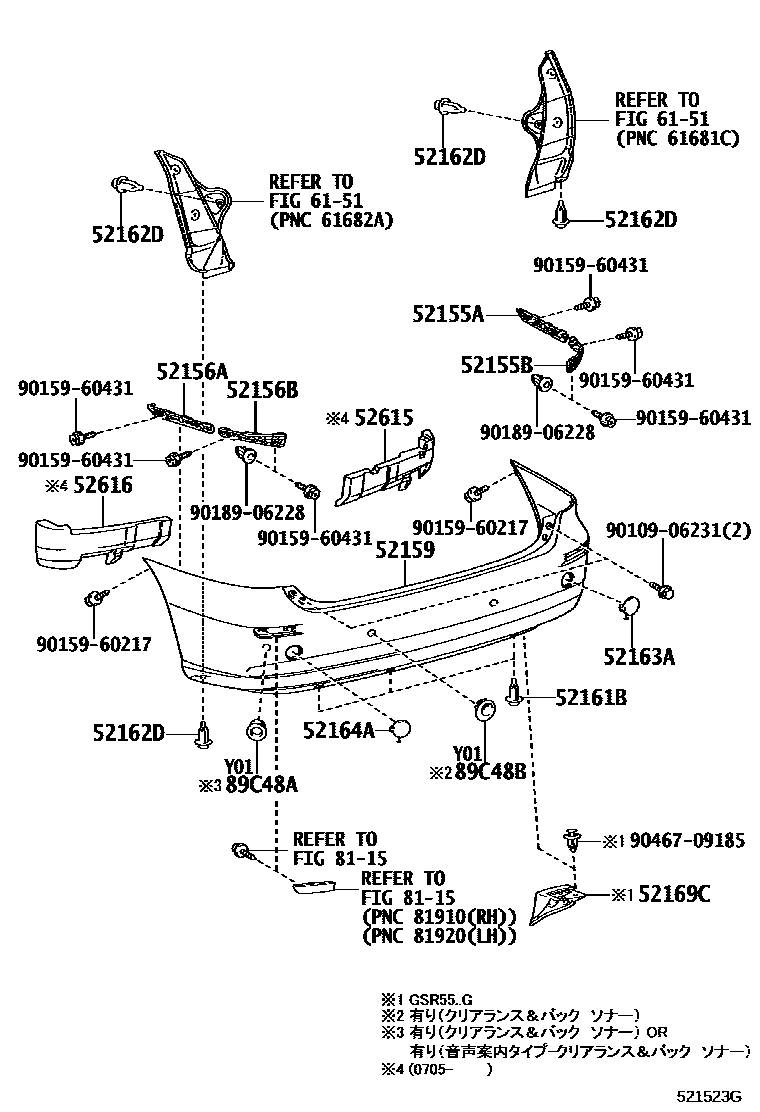

REAR BUMPER & BUMPER STAY

0001 1 0002 1 0003 1

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-28080iACR5#,GSR5#..CBU200812-201204

52155BSUPPORT, REAR BUMPER SIDE, NO.2 RH

main52155-28090iACR5#,GSR5#..CBU200601-200812

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-28050iACR5#,GSR5#..CBU200601-200812

52156BSUPPORT, REAR BUMPER SIDE, NO.2 LH

main52156-28060iACR5#,GSR5#..CBU201204-201605

52159COVER, REAR BUMPER

main52159-28240-A1iACR5#,GSR5#..(G,X)..CBU200601-200812

WHITE PEARL CS.,070

main52159-28240-B0iACR5#,GSR5#..(G,X)..CBU200812-201204

SILVER ME.,1F7

main52159-28240-B1iACR5#,GSR5#..(G,X)..CBU200812-201204

MEDIUM SILVER ME.,1F8

main52159-28240-B3iACR5#,GSR5#..(G,X)..CBU201204-201605

ICE TITANIUM M.M.,1H4

main52159-28240-C0iACR5#,GSR5#..(G,X)..CBU201204-201605

BLACK,202

main52159-28240-D0iACR5#,GSR5#..(G,X)..CBU200812-201204

DK. RED M.M.,3Q3

main52159-28240-D1iACR5#,GSR5#..(G,X)..CBU201204-201605

BORDEAUX M.M,3R9

main52159-28240-F0iACR5#,GSR5#..(G,X)..CBU200812-201204

SILKY GOLD M.M.,5A4

main52159-28240-J0iACR5#,GSR5#..(G,X)..CBU200812-201204

DK.BLUE MC.,8S6

main52159-28240-J1iACR5#,GSR5#..(G,X)..CBU200601-200812

LT.BLUE M.M.,8S7

main52159-28560-A0iACR5#,GSR5#..AERAS..CBU200601-200812

WHITE PEARL CS.,070

main52159-28560-B0iACR5#,GSR5#..AERAS..CBU200601-200812

SILVER ME.,1F7

main52159-28560-B1iACR5#,GSR5#..AERAS..CBU200601-200812

MEDIUM SILVER ME.,1F8

main52159-28560-B3iACR5#,GSR5#..07S..AERAS..CBU200907-201204

GRAY ME.,1G3

main52159-28560-B4iACR5#,GSR5#..AERAS..CBU201204-201605

ICE TITANIUM M.M.,1H4

main52159-28560-C0iACR5#,GSR5#..AERAS..CBU200601-200812

BLACK,202

main52159-28560-D0iACR5#..07S..AERAS..CBU201010-201204

BORDEAUX M.M,3R9

main52159-28560-J1iACR5#,GSR5#..AERAS..CBU201204-201605

GRAYISH BLUE M.M.,8V5

main52159-28560-K0iACR5#,GSR5#..AERAS..CBU200812-201204

LT.PURPLE M.M.,9AE

main52159-28510-A0iACR5#,GSR5#..G..CBU200601-200812

main52159-28510-B0iACR5#,GSR5#..G..CBU200601-200812

main52159-28510-D0iACR5#,GSR5#..G..CBU200601-200812

main52159-28510-F0iACR5#,GSR5#..G..CBU200601-200812

main52159-28510-J0iACR5#,GSR5#..G..CBU200601-200812

main52159-28510-J1iACR5#,GSR5#..G..CBU200601-200812

main52159-28520-A1iACR5#,GSR5#..G..CBU200601-200812

main52159-28520-B0iACR5#,GSR5#..G..CBU200601-200812

main52159-28520-D0iACR5#,GSR5#..G..CBU200601-200812

main52159-28520-F0iACR5#,GSR5#..G..CBU200601-200812

main52159-28520-J0iACR5#,GSR5#..G..CBU200601-200812

main52159-28520-J1iACR5#,GSR5#..G..CBU200601-200812

main52159-28600-A1iACR5#,GSR5#..(G,X)..CBU201304-201605

main52159-28600-B0iACR5#,GSR5#..(G,X)..CBU201304-201605

main52159-28600-B1iACR5#,GSR5#..(G,X)..CBU201304-201605

main52159-28600-C0iACR5#,GSR5#..(G,X)..CBU201304-201605

main52159-28600-D0iACR5#,GSR5#..(G,X)..CBU201304-201605

main52159-28650-A0iACR5#,GSR5#..AERAS..CBU201304-201605

main52159-28650-B0iACR5#,GSR5#..AERAS..CBU201304-201605

main52159-28650-B1iACR5#,GSR5#..AERAS..CBU201304-201605

main52159-28650-C0iACR5#,GSR5#..AERAS..CBU201304-201605

main52159-28650-D0iACR5#,GSR5#..AERAS..CBU201304-201605

main52159-28650-J0iACR5#,GSR5#..AERAS..CBU201304-201605

main52159-28680-A0supersedes 52159-28560-A0iACR5#..CBU201605

main52159-28680-B0supersedes 52159-28560-B0iACR5#..CBU201605

main52159-28680-B1supersedes 52159-28560-B4iACR5#..CBU201605

main52159-28680-C0supersedes 52159-28560-C0iACR5#..CBU201605

main52159-28680-C1supersedes 52159-28560-C1iACR5#..CBU201605

main52159-28680-D0supersedes 52159-28560-D1iACR5#..CBU201605

main52159-28680-E0supersedes 52159-28560-E0iACR5#..CBU201605

52161BPIECE, REAR BUMPER

main52161-16010×3iACR5#,GSR5#..CBU200601-200812

52162DPIECE, REAR BUMPER

main52161-16010×4iACR5#,GSR5#..CBU200812-201204

52163APLATE, REAR BUMPER, RH

main52163-28030-A1iACR5#,GSR5#..(G,X)..CBU201204-201605

WHITE PEARL CS.,070

main52163-28030-B0iACR5#,GSR5#..(G,X)..CBU201204-201605

SILVER ME.,1F7

main52163-28030-B1iACR5#,GSR5#..(G,X)..CBU200812-201204

MEDIUM SILVER ME.,1F8

main52163-28030-B3iACR5#,GSR5#..(G,X)..CBU201204-201605

ICE TITANIUM M.M.,1H4

main52163-28030-C0iACR5#,GSR5#..(G,X)..CBU201204-201605

BLACK,202

main52163-28030-D0iACR5#,GSR5#..(G,X)..CBU200601-200812

DK. RED M.M.,3Q3

main52163-28030-D1iACR5#,GSR5#..(G,X)..CBU201204-201605

DEEP RED M.M.,3R9

main52163-28030-F0iACR5#,GSR5#..(G,X)..CBU200812-201204

SILKY GOLD M.M.,5A4

main52163-28030-J0iACR5#,GSR5#..(G,X)..CBU200601-200812

DK.BLUE MC.,8S6

main52163-28030-J1iACR5#,GSR5#..(G,X)..CBU200601-200812

LT.BLUE M.M.,8S7

main52163-28030-K0iACR5#,GSR50..(G,X)..CBU200812-201204

LT.PURPLE M.M.,9AE

52164APLATE, REAR BUMPER, LH

main52164-28020-A1iACR5#,GSR5#..(G,X)..CBU200601-200812

WHITE PEARL CS.,070

main52164-28020-B0iACR5#,GSR5#..(G,X)..CBU200601-200812

SILVER ME.,1F7

main52164-28020-B1iACR5#,GSR5#..(G,X)..CBU200812-201204

MEDIUM SILVER ME.,1F8

main52164-28020-B3iACR5#,GSR5#..(G,X)..CBU201204-201605

ICE TITANIUM M.M.,1H4

main52164-28020-C0iACR5#,GSR5#..(G,X)..CBU201204-201605

BLACK,202

main52164-28020-D0iACR5#,GSR5#..(G,X)..CBU200812-201204

DK. RED M.M.,3Q3

main52164-28020-D1iACR5#,GSR5#..(G,X)..CBU201204-201605

DEEP RED M.M.,3R9

main52164-28020-F0iACR5#,GSR5#..(G,X)..CBU200601-200812

SILKY GOLD M.M.,5A4

main52164-28020-J0iACR5#,GSR5#..(G,X)..CBU200812-201204

DK.BLUE MC.,8S6

main52164-28020-J1iACR5#,GSR5#..(G,X)..CBU200601-200812

LT.BLUE M.M.,8S7

main52164-28020-K0iACR5#,GSR50..(G,X)..CBU200812-201204

LT.PURPLE M.M.,9AE

52169CCOVER, REAR BUMPER, LOWER

main52169-28020iGSR55..G..CBU200601-200812

main52169-28030iACR5#..CBU201605

52615ABSORBER, REAR BUMPER ENERGY

main52615-28040iACR5#,GSR5#..(G,X)..CBU201204-201605

main52615-28050iACR5#,GSR5#..AERAS..CBU200812-201204

main52615-28051iACR5#,GSR5#..AERAS..CBU201302-201605

52616ABSORBER, REAR BUMPER ENERGY, LH

main52616-28010iACR5#,GSR5#..(G,X)..CBU200705-200812

main52616-28020iACR5#,GSR5#..AERAS..CBU200812-201204

main52616-28021iACR5#,GSR5#..AERAS..CBU201302-201605

6151SIDE MEMBER

→ Go to FIG 61-51

8115REFLEX REFLECTOR

→ Go to FIG 81-15

89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER

main89348-28100-A1×2iACR5#,GSR5#..G..CBU200601-200812

main89348-28100-B0×2iACR5#,GSR5#..G..CBU200601-200812

main89348-28100-D0×2iACR5#,GSR5#..G..CBU200601-200812

main89348-28100-F0×2iACR5#,GSR5#..G..CBU200601-200812

main89348-28100-J0×2iACR5#,GSR5#..G..CBU200601-200812

main89348-28100-J1×2iACR5#,GSR5#..G..CBU200601-200812

main89348-33100-A1×2iACR5#,GSR5#..CBU201304-201605

main89348-33100-B0×2iACR5#,GSR5#..CBU201304-201605

main89348-33100-B9×2iACR5#,GSR5#..CBU201304-201605

main89348-33100-C4×2iACR5#,GSR5#..CBU201304-201605

main89348-33100-D5×2iACR5#,GSR5#..CBU201304-201605

main89348-33100-J9×2iACR5#,GSR5#..AERAS..CBU201304-201605

89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER

main89348-28090-A1×2iACR5#,GSR5#..G..CBU200601-200812

main89348-28090-B0×2iACR5#,GSR5#..G..CBU200601-200812

main89348-28090-D0×2iACR5#,GSR5#..G..CBU200601-200812

main89348-28090-F0×2iACR5#,GSR5#..G..CBU200601-200812

main89348-28090-J0×2iACR5#,GSR5#..G..CBU200601-200812

main89348-28090-J1×2iACR5#,GSR5#..G..CBU200601-200812

main89348-71010-A1×2iACR5#,GSR5#..CBU201304-201605

main89348-71010-B5×2iACR5#,GSR5#..CBU201304-201605

main89348-71010-C0×2iACR5#,GSR5#..CBU201304-201605

main89348-71010-D5×2iACR5#,GSR5#..CBU201304-201605

main89348-71010-J5×2iACR5#,GSR5#..AERAS..CBU201304-201605

main89348-71010-P2×2iACR5#,GSR5#..CBU201304-201605

9010906231

main90109-06231

9015960217

main90159-60217

9015960431

main90159-60431

9018906228

main90189-06228

9046709185

main90467-09185

21 parts on this diagram · 3 diagrams in section
