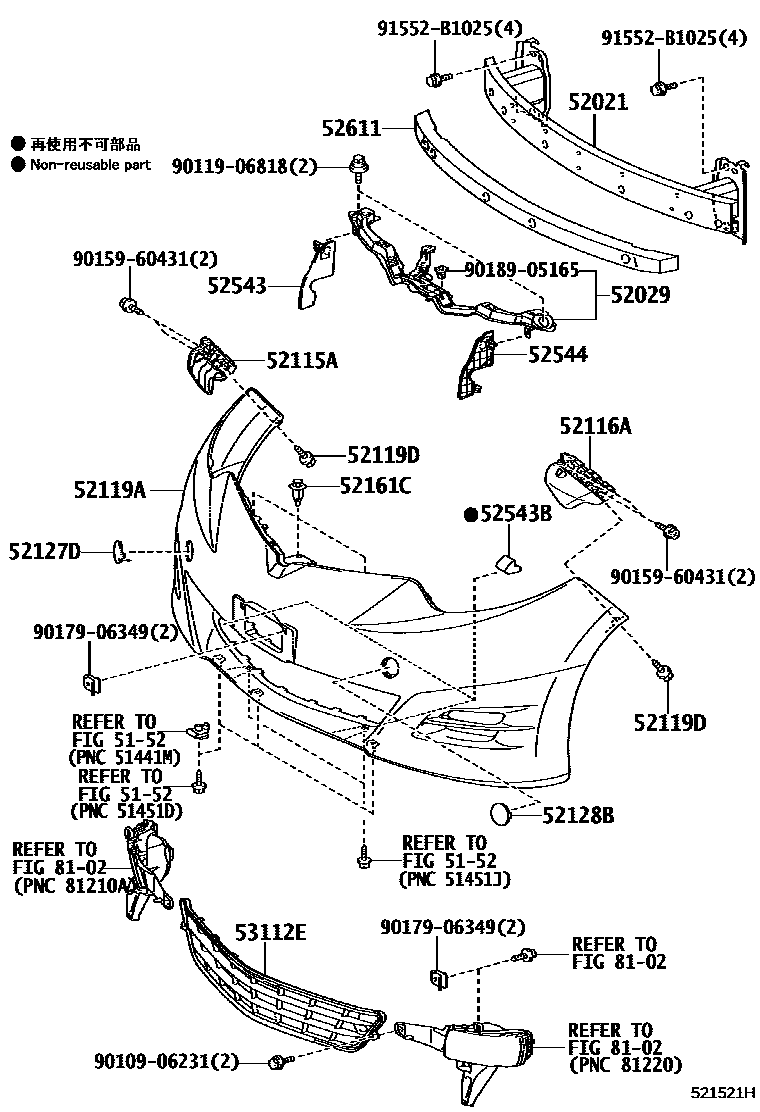

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

5152SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-52

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-28220iACR5#,GSR5#..CBU200601-200812

main52021-28221iACR5#,GSR5#..(G,X)..CBU201204-201605

main52021-28230iACR5#,GSR5#..AERAS..CBU201204-201605

main52021-28280iACR5#..(AERAS,AESM)..CBU201605

main52029-28080iACR5#..(AEPG,AEPR)..CBU; ACR5#..AESM201605

main52021-28210iGSR5#..G..CBU200601-200812

main52021-28211iGSR5#..G201204-201605

main52029-28060iACR5#..07S..AERAS..CBU201304-201605

52029REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER

main52029-28040iACR5#,GSR5#..CBU200601-200812

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-28120iACR5#,GSR5#..CBU200601-200812

main52115-28170iACR5#,GSR5#..CBU200812-201204

main52115-28260iACR5#..CBU201605

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-28060iACR5#,GSR5#..CBU200601-200812

main52116-28170iACR5#,GSR5#..CBU200812-201204

main52116-28260iACR5#..CBU201605

52119ACOVER, FRONT BUMPER

main52119-28B60-A1iACR5#,GSR5#..(G,X)..CBU200601-200812

WHITE PEARL CS.,070

main52119-28B60-B0iACR5#,GSR5#..(G,X)..CBU200601-200812

SILVER ME.,1F7

main52119-28B60-D0iACR5#,GSR5#..(G,X)..CBU200601-200812

DK. RED M.M.,3Q3

main52119-28B60-F0iACR5#,GSR5#..(G,X)..CBU200601-200812

SILKY GOLD M.M.,5A4

main52119-28B60-J0iACR5#,GSR5#..(G,X)..CBU200601-200812

DK.BLUE MC.,8S6

main52119-28B60-J1iACR5#,GSR5#..(G,X)..CBU200601-200812

LT.BLUE M.M.,8S7

main52119-28C20-B1iACR5#,GSR5#..AERAS..CBU200601-200812

MEDIUM SILVER ME.,1F8

main52119-28E10-B3iACR5#,GSR5#..(G,X)..CBU201204-201605

ICE TITANIUM M.M.,1H4

main52119-28E10-C0iACR5#,GSR5#..(G,X)..CBU201204-201605

BLACK,202

main52119-28E10-D1iACR5#,GSR5#..(G,X)..CBU201204-201605

BORDEAUX M.M,3R9

main52119-28G00-B1iACR5#,GSR5#..AERAS..CBU201204-201605

ICE TITANIUM M.M.,1H4

main52119-28G00-D0iACR5#,GSR5#..AERAS..CBU201204-201605

BORDEAUX M.M,3R9

main52119-28G00-J0iACR5#,GSR5#..AERAS..CBU201204-201605

GRAYISH BLUE M.M.,8V5

main52119-28B70-A1iACR5#,GSR5#..G..CBU200601-200812

main52119-28B70-B0iACR5#,GSR5#..G..CBU200601-200812

main52119-28B70-D0iACR5#,GSR5#..G..CBU200601-200812

main52119-28B70-F0iACR5#,GSR5#..G..CBU200601-200812

main52119-28B70-J0iACR5#,GSR5#..G..CBU200601-200812

main52119-28B70-J1iACR5#,GSR5#..G..CBU200601-200812

main52119-28B80-A0iGSR5#..G..CBU200601-200812

main52119-28B80-B0iGSR5#..G..CBU200601-200812

main52119-28B80-D0iGSR5#..G..CBU200601-200812

main52119-28B80-F0iGSR5#..G..CBU200601-200812

main52119-28B80-J0iGSR5#..G..CBU200601-200812

main52119-28B80-J1iGSR5#..G..CBU200601-200812

main52119-28B90-A0iGSR5#..G..CBU200601-200812

main52119-28B90-B0iGSR5#..G..CBU200601-200812

main52119-28B90-D0iGSR5#..G..CBU200601-200812

main52119-28B90-F0iGSR5#..G..CBU200601-200812

main52119-28B90-J0iGSR5#..G..CBU200601-200812

main52119-28B90-J1iGSR5#..G..CBU200601-200812

main52119-28E50-A0iACR5#,GSR5#..(G,X)..CBU201204-201304

main52119-28E50-B0iACR5#,GSR5#..(G,X)..CBU201204-201304

main52119-28E50-B1supersedes 52119-28E10-B2iACR5#,GSR5#..(G,X)..CBU200812-201204

main52119-28E50-B2iACR5#,GSR5#..(G,X)..CBU201204-201304

main52119-28E50-C0iACR5#,GSR5#..(G,X)..CBU201204-201304

main52119-28E50-D0supersedes 52119-28E10-D0iACR5#,GSR5#..(G,X)..CBU200812-201204

main52119-28E50-D1iACR5#,GSR5#..(G,X)..CBU201204-201304

main52119-28E50-F0supersedes 52119-28E10-F0iACR5#,GSR5#..(G,X)..CBU200812-201204

main52119-28E50-J0supersedes 52119-28E10-J0iACR5#,GSR5#..(G,X)..CBU200812-201204

main52119-28E80-A0iGSR5#..G..CBU200812-201204

main52119-28E80-B0iGSR5#..G201204-201605

main52119-28E80-B1iGSR5#..G..CBU200812-201204

main52119-28E80-B2iGSR5#..G201204-201605

main52119-28E80-C0iGSR5#..G201204-201605

main52119-28E80-D0iGSR5#..G..CBU200812-201204

main52119-28E80-D1iGSR5#..G201204-201605

main52119-28E80-F0iGSR5#..G..CBU200812-201204

main52119-28E80-J0iGSR5#..G..CBU200812-201204

main52119-28F10-A0iGSR5#..G201204-201304

main52119-28F10-B0iGSR5#..G201204-201304

main52119-28F10-B1iGSR5#..G..CBU200812-201204

main52119-28F10-B2iGSR5#..G201204-201304

main52119-28F10-C0iGSR5#..G201204-201304

main52119-28F10-D0iGSR5#..G..CBU200812-201204

main52119-28F10-D1iGSR5#..G201204-201304

main52119-28F10-F0iGSR5#..G..CBU200812-201204

main52119-28F10-J0iGSR5#..G..CBU200812-201204

main52119-28F30-A0supersedes 52119-28G00-A0iACR5#,GSR5#..AERAS..CBU200812-201204

main52119-28F30-B1supersedes 52119-28G00-B0iACR5#,GSR5#..AERAS..CBU200812-201204

main52119-28F30-B2supersedes 52119-28F20-B2iACR5#,GSR5#..07S..AERAS..CBU200907-201204

main52119-28F30-C0supersedes 52119-28G00-C0iACR5#,GSR5#..AERAS..CBU200812-201204

main52119-28F30-D0supersedes 52119-28F20-D0iACR5#..07S..AERAS..CBU201010-201204

main52119-28F30-K0supersedes 52119-28F20-K0iACR5#,GSR5#..AERAS..CBU200812-201204

main52119-28G00-A0iACR5#..07S..AERAS..CBU201409-201605

main52119-28G00-C0iACR5#..07S..AERAS..CBU201409-201605

main52119-28G10-A0iACR5#,GSR5#..AERAS..CBU201204-201304

main52119-28G10-B0iACR5#,GSR5#..AERAS..CBU201204-201304

main52119-28G10-B1iACR5#,GSR5#..AERAS..CBU201204-201304

main52119-28G10-C0iACR5#,GSR5#..AERAS..CBU201204-201304

main52119-28G10-D0iACR5#,GSR5#..AERAS..CBU201204-201304

main52119-28G10-J0iACR5#,GSR5#..AERAS..CBU201204-201304

main52119-28G30-A1iACR5#,GSR5#..(G,X)..CBU201304-201605

main52119-28G30-B0iACR5#,GSR5#..(G,X)..CBU201304-201605

main52119-28G30-B1iACR5#,GSR5#..(G,X)..CBU201304-201605

main52119-28G30-C0iACR5#,GSR5#..(G,X)..CBU201304-201605

main52119-28G30-D0iACR5#,GSR5#..(G,X)..CBU201304-201605

main52119-28J30-A0iGSR5#..G201304-201605

main52119-28J30-B0iGSR5#..G201304-201605

main52119-28J30-B1iGSR5#..G201304-201605

main52119-28J30-C0iGSR5#..G201304-201605

main52119-28J30-D0iGSR5#..G201304-201605

main52119-28J40-A0iACR5#,GSR5#..AERAS..CBU201304-201605

main52119-28J40-B0iACR5#,GSR5#..AERAS..CBU201304-201605

main52119-28J40-B1iACR5#,GSR5#..AERAS..CBU201304-201605

main52119-28J40-C0iACR5#,GSR5#..AERAS..CBU201304-201605

main52119-28J40-D0iACR5#,GSR5#..AERAS..CBU201304-201605

main52119-28J40-J0iACR5#,GSR5#..AERAS..CBU201304-201605

main52119-28K40-A0supersedes 52119-28K30-A0iACR5#..CBU201605-201910

main52119-28K40-B0supersedes 52119-28K30-B0iACR5#..CBU201605-201910

main52119-28K40-B1supersedes 52119-28K30-B1iACR5#..CBU201605-201910

main52119-28K40-C0supersedes 52119-28K30-C0iACR5#..CBU201605-201910

main52119-28K40-C1supersedes 52119-28K30-C1iACR5#..CBU201605-201910

main52119-28K40-D0supersedes 52119-28K30-D0iACR5#..CBU201605-201910

main52119-28K40-E0supersedes 52119-28K30-E0iACR5#..CBU201605-201910

52119DSCREW, NO.1

main90159-50353×2iACR5#,GSR5#..CBU200812-201204

main90159-60217×2iACR5#,GSR5#..CBU200601-200812

52127DCOVER, FRONT BUMPER HOLE, RH

main52127-28180-A1iACR5#,GSR5#..(G,X)..CBU200601-200812

WHITE PEARL CS.,070

main52127-28180-B0iACR5#,GSR5#..(G,X)..CBU200601-200812

SILVER ME.,1F7

main52127-28180-D0iACR5#,GSR5#..(G,X)..CBU200601-200812

DK. RED M.M.,3Q3

main52127-28180-F0iACR5#,GSR5#..(G,X)..CBU200601-200812

SILKY GOLD M.M.,5A4

main52127-28180-J0iACR5#,GSR5#..(G,X)..CBU200601-200812

DK.BLUE MC.,8S6

main52127-28180-J1iACR5#,GSR5#..(G,X)..CBU200601-200812

LT.BLUE M.M.,8S7

main52127-28190-A0iACR5#,GSR5#..AERAS..CBU200601-200812

WHITE PEARL CS.,070

main52127-28190-B0iACR5#,GSR5#..AERAS..CBU200601-200812

SILVER ME.,1F7

main52127-28190-B1iACR5#,GSR5#..AERAS..CBU200601-200812

MEDIUM SILVER ME.,1F8

main52127-28190-C0iACR5#,GSR5#..AERAS..CBU200601-200812

BLACK,202

main52127-28300-A1iACR5#,GSR5#..(G,X)..CBU201204-201605

WHITE PEARL CS.,070

main52127-28300-B1iACR5#,GSR5#..(G,X)..CBU201204-201605

SILVER ME.,1F7

main52127-28300-B2iACR5#,GSR5#..(G,X)..CBU200812-201204

MEDIUM SILVER ME.,1F8

main52127-28300-B3iACR5#,GSR5#..(G,X)..CBU201204-201605

ICE TITANIUM M.M.,1H4

main52127-28300-C0iACR5#,GSR5#..(G,X)..CBU201204-201605

BLACK,202

main52127-28300-D0iACR5#,GSR5#..(G,X)..CBU200812-201204

DK. RED M.M.,3Q3

main52127-28300-D1iACR5#,GSR5#..(G,X)..CBU201204-201605

BORDEAUX M.M,3R9

main52127-28300-F0iACR5#,GSR5#..(G,X)..CBU200812-201204

SILKY GOLD M.M.,5A4

main52127-28300-J0iACR5#,GSR5#..(G,X)..CBU200812-201204

DK.BLUE MC.,8S6

main52127-28310-A0iACR5#,GSR5#..AERAS..CBU200812-201204

WHITE PEARL CS.,070

main52127-28310-B1iACR5#,GSR5#..AERAS..CBU200812-201204

SILVER ME.,1F7

main52127-28310-B2iACR5#,GSR5#..07S..AERAS..CBU200907-201204

GRAY ME.,1G3

main52127-28310-C0iACR5#,GSR5#..AERAS..CBU200812-201204

BLACK,202

main52127-28310-D0iACR5#..07S..AERAS..CBU201010-201204

BORDEAUX M.M,3R9

main52127-28310-K0iACR5#,GSR5#..AERAS..CBU200812-201204

LT.PURPLE M.M.,9AE

main52127-28430-A0iACR5#,GSR5#..AERAS..CBU201204-201605

WHITE PEARL CS.,070

main52127-28430-B0iACR5#,GSR5#..AERAS..CBU201204-201605

SILVER ME.,1F7

main52127-28430-B1iACR5#,GSR5#..AERAS..CBU201204-201605

ICE TITANIUM M.M.,1H4

main52127-28430-C0iACR5#,GSR5#..AERAS..CBU201204-201605

BLACK,202

main52127-28430-D0iACR5#,GSR5#..AERAS..CBU201204-201605

BORDEAUX M.M,3R9

main52127-28430-J0iACR5#,GSR5#..AERAS..CBU201204-201605

GRAYISH BLUE M.M.,8V5

52128BCOVER, FRONT BUMPER HOLE, LH

main52127-28180-A1iACR5#,GSR5#..(G,X)..CBU200601-200812

WHITE PEARL CS.,070

main52127-28180-B0iACR5#,GSR5#..(G,X)..CBU200601-200812

SILVER ME.,1F7

main52127-28180-D0iACR5#,GSR5#..(G,X)..CBU200601-200812

DK. RED M.M.,3Q3

main52127-28180-F0iACR5#,GSR5#..(G,X)..CBU200601-200812

SILKY GOLD M.M.,5A4

main52127-28180-J0iACR5#,GSR5#..(G,X)..CBU200601-200812

DK.BLUE MC.,8S6

main52127-28180-J1iACR5#,GSR5#..(G,X)..CBU200601-200812

LT.BLUE M.M.,8S7

main52127-28190-A0iACR5#,GSR5#..AERAS..CBU200601-200812

WHITE PEARL CS.,070

main52127-28190-B0iACR5#,GSR5#..AERAS..CBU200601-200812

SILVER ME.,1F7

main52127-28190-B1iACR5#,GSR5#..AERAS..CBU200601-200812

MEDIUM SILVER ME.,1F8

main52127-28190-C0iACR5#,GSR5#..AERAS..CBU200601-200812

BLACK,202

main52127-28300-A1iACR5#,GSR5#..(G,X)..CBU200812-201204

WHITE PEARL CS.,070

main52127-28300-B1iACR5#,GSR5#..(G,X)..CBU201204-201605

SILVER ME.,1F7

main52127-28300-B2iACR5#,GSR5#..(G,X)..CBU200812-201204

MEDIUM SILVER ME.,1F8

main52127-28300-B3iACR5#,GSR5#..(G,X)..CBU201204-201605

ICE TITANIUM M.M.,1H4

main52127-28300-C0iACR5#,GSR5#..(G,X)..CBU201204-201605

BLACK,202

main52127-28300-D0iACR5#,GSR5#..(G,X)..CBU200812-201204

DK. RED M.M.,3Q3

main52127-28300-D1iACR5#,GSR5#..(G,X)..CBU201204-201605

BORDEAUX M.M,3R9

main52127-28300-F0iACR5#,GSR5#..(G,X)..CBU200812-201204

SILKY GOLD M.M.,5A4

main52127-28300-J0iACR5#,GSR5#..(G,X)..CBU200812-201204

DK.BLUE MC.,8S6

main52128-28430-A0iACR5#,GSR5#..AERAS..CBU201204-201605

WHITE PEARL CS.,070

main52128-28430-B0iACR5#,GSR5#..AERAS..CBU201204-201605

SILVER ME.,1F7

main52128-28430-B1iACR5#,GSR5#..AERAS..CBU201204-201605

ICE TITANIUM M.M.,1H4

main52128-28430-C0iACR5#,GSR5#..AERAS..CBU201204-201605

BLACK,202

main52128-28430-D0iACR5#,GSR5#..AERAS..CBU201204-201605

BORDEAUX M.M,3R9

main52128-28430-J0iACR5#,GSR5#..AERAS..CBU201204-201605

GRAYISH BLUE M.M.,8V5

52161CPIECE, FRONT BUMPER

main52161-16010×3iACR5#,GSR5#..CBU200601-200812

52543SEAL, FRONT BUMPER SIDE, RH

main52545-28040iACR5#,GSR5#..CBU200601-200812

main52545-28050iACR5#,GSR5#..CBU200812-201111

main52545-28051iACR5#,GSR5#..CBU201112-201204

main52545-28080iACR5#..CBU201605

52543BSEAL, FRONT BUMPER

main52543-28090×2iACR5#,GSR5#..(G,X)..CBU200601-200812

main52543-28100×2iACR5#,GSR5#..AERAS..CBU200601-200812

52544SEAL, FRONT BUMPER SIDE, LH

main52546-28030iACR5#,GSR5#..CBU200601-200812

main52546-28050iACR5#,GSR5#..CBU200812-201111

main52546-28051iACR5#,GSR5#..CBU201112-201204

main52546-28080iACR5#..CBU201605

52611ABSORBER, FRONT BUMPER ENERGY

main52611-28080iACR5#,GSR5#..CBU200601-200812

main52611-28081iACR5#,GSR5#..CBU201302-201605

main52611-28130iACR5#..CBU201605

53112EGRILLE, RADIATOR, LOWER NO.1

main53112-28010iACR5#,GSR5#..(G,X)..CBU200601-200812

main53112-28030iACR5#,GSR5#..AERAS..CBU200601-200812

main53112-28110iACR5#,GSR5#..(G,X)..CBU200812-201204

main53112-28120iACR5#,GSR5#..AERAS..CBU200812-201204

main53112-28210iACR5#,GSR5#..AERAS..CBU201204-201605

main53112-28290iACR5#..CBU201605

8102FOG LAMP

→ Go to FIG 81-02

9010906231

main90109-06231

9011906818

main90119-06818

9015960431

main90159-60431

9017906349

main90179-06349

9018905165

main90189-05165

91552B1025

main91552-B1025

22 parts on this diagram · 6 diagrams in section
