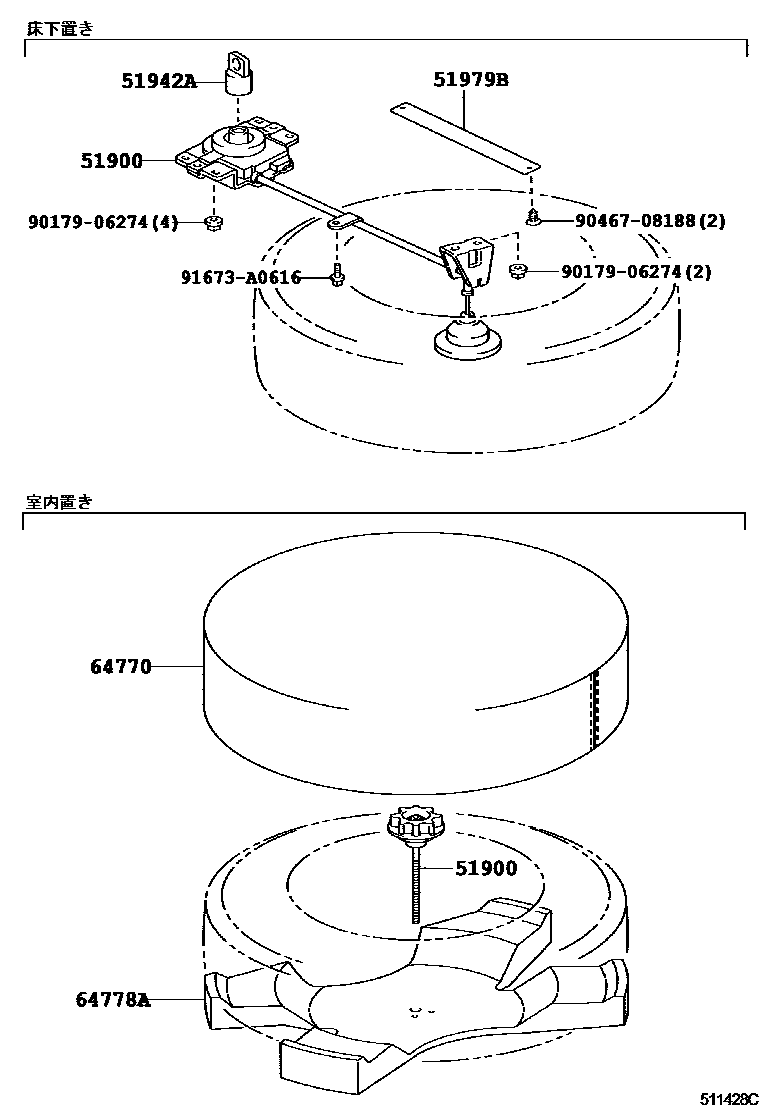

SPARE WHEEL CARRIER

51900CARRIER ASSY, SPARE WHEEL

main51900-28280iACR50,GSR50..CBU200601-200812

main51900-28300iACR50,GSR50..CBU200912-201204

51942AHANDLE, SPARE WHEEL CARRIER BOLT

main51942-28010iACR50,GSR50..CBU200607-200812

main51942-48010iACR50,GSR50..CBU200601-200607

51979BCUSHION, SPARE WHEEL CARRIER PROTECTOR

main51979-28030iACR50,GSR50..CBU200812-200912

64770COVER ASSY, SPARE WHEEL

main64770-28010iACR55,GSR55..CBU200601-200812

64778APROTECTOR, SPARE WHEEL

main64778-28030iACR55,GSR55..CBU200601-200812

9017906274

main90179-06274

9046708188

main90467-08188

91673A0616

main91673-A0616

8 parts on this diagram · 1 diagram in section
