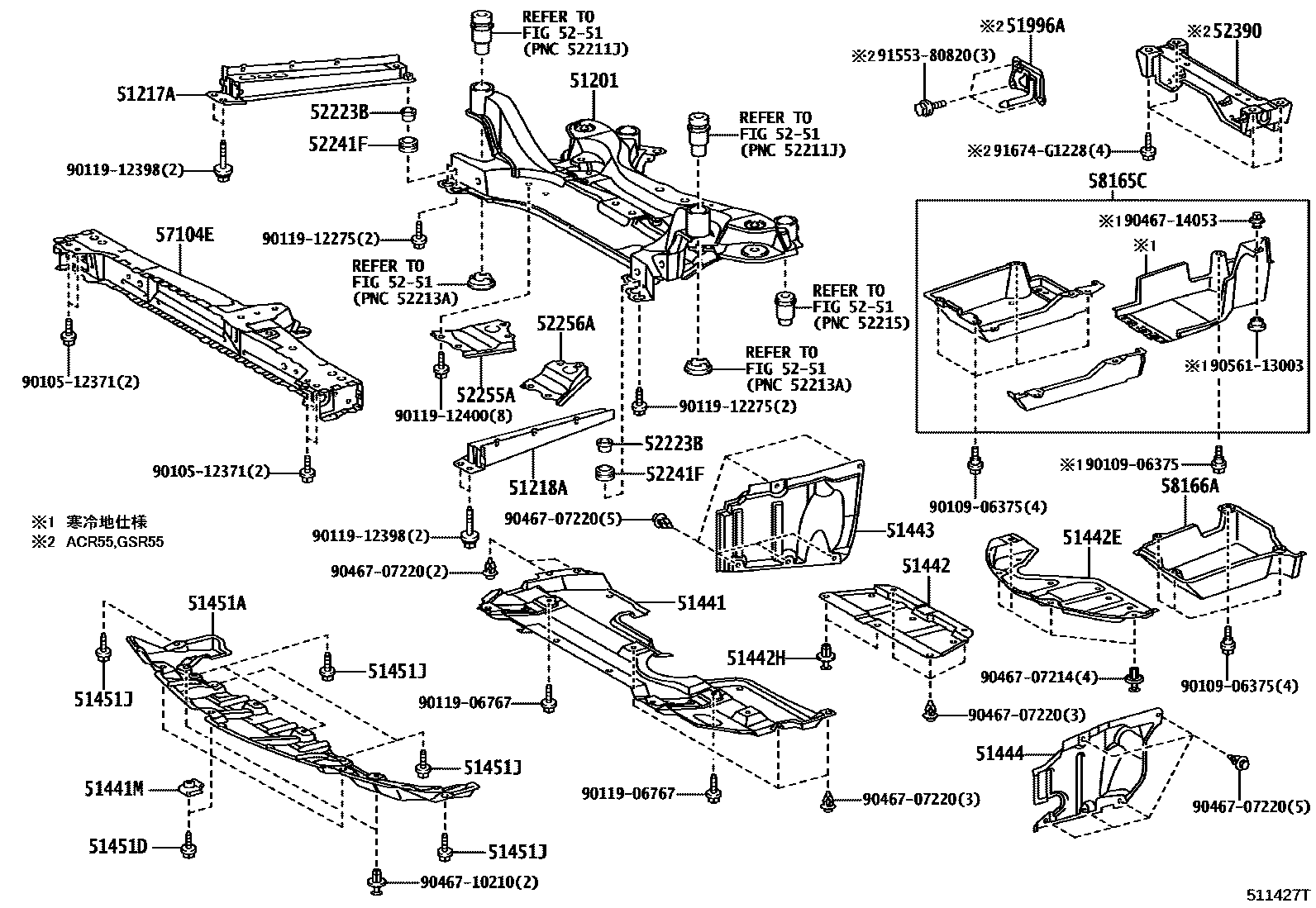

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-28280iACR5#,GSR5#..CBU200601-200608

main51201-28281iACR5#,GSR5#..CBU200812-201204

51217AREINFORCEMENT, FRONT SUSPENSION MEMBER, RH

main51107-28010iACR5#..CBU200601-200809

main51107-28020iGSR5#..CBU200601-200812

51218AREINFORCEMENT, FRONT SUSPENSION MEMBER, LH

main51108-28010iACR5#..CBU200601-200809

main51108-28020iGSR5#..CBU200601-200708

main51108-28040iGSR5#..CBU200708-200812

51441COVER, ENGINE UNDER, NO.1

main51441-12230iACR5#,GSR5#..CBU200601-200812

51441MNUT

main90179-05025×3iACR5#,GSR5#..CBU201204-201605

51442COVER, ENGINE UNDER, NO.2

main51442-12270iACR5#,GSR5#..CBU201408-201605

main51442-42080iACR5#,GSR5#..CBU200601-200812

51442ECOVER, ENGINE UNDER, NO.2

main51442-12210iACR5#,GSR5#..CBU200601-200812

51442HCLIP, ENGINE UNDER COVER, NO.2

main90467-09227×2iACR5#,GSR5#..CBU201204-201311

main90467-09242×2iACR5#,GSR5#..CBU201312-201605

51443COVER, ENGINE UNDER, REAR RH

main51443-12080iACR5#,GSR5#..CBU200601-200812

main51443-28070iACR5#,GSR5#..CBU201408-201605

51444COVER, ENGINE UNDER, REAR LH

main51444-28040iACR5#,GSR5#..CBU200601-200812

51451ACOVER, ENGINE UNDER, CENTER

main51451-28020iACR5#,GSR5#..CBU201204-201605

51451DSCREW, NO.1

main90159-60477×3iACR5#,GSR5#..CBU201204-201605

51451JBOLT, NO.1

main90119-06767×8iACR5#..CBU201605-201910

main90119-06818×7iACR5#,GSR5#..CBU201204-201605

51996ABRACKET, PINTLE HOOK SUPPORT, LH

main51996-28020iACR55,GSR55..CBU200601-200812

52223BSPACER, FRONT SUSPENSION MEMBER MOUNTIONG, LOWER

main52223-28010×4iACR5#,GSR5#..CBU200601-200812

52241FCUSHION, FRONT SUSPENSION MEMBER MOUNTING, LWR

main52241-28010×4iACR5#,GSR5#..CBU200601-200812

52255ABRACE, FRONT SUSPENSION MEMBER, FRONT RH

main52255-28030iACR5#,GSR5#..CBU200601-200812

52256ABRACE, FRONT SUSPENSION MEMBER, FRONT LH

main52256-28030iACR5#,GSR5#..CBU200812-201204

52390SUPPORT ASSY, FRONT DIFFERENTIAL, REAR

main52390-28060iACR55,GSR55..CBU200812-201204

5251CAB MOUNTING & BODY MOUNTING

→ Go to FIG 52-51

57104EMEMBER SUB-ASSY, FRONT CROSS

main57104-12270iACR5#,GSR5#..CBU200601-200812

58165CCOVER, FRONT FLOOR, RH

main50819-28020supersedes 50819-28010iACR5#,GSR5#..CBU200601-200812

58166ACOVER, FRONT FLOOR, LH

main58166-28010iACR5#,GSR5#..CBU200601-200612

main58166-28011iACR5#,GSR5#..CBU200701-200812

9010512371

main90105-12371

9010906375

main90109-06375

9011906767

main90119-06767

9011912275

main90119-12275

9011912398

main90119-12398

9011912400

main90119-12400

9046707214

main90467-07214

9046707220

main90467-07220

9046710210

main90467-10210

9046714053

main90467-14053

9056113003

main90561-13003

9155380820

main91553-80820

91674G1228

main91674-G1228

36 parts on this diagram · 2 diagrams in section
