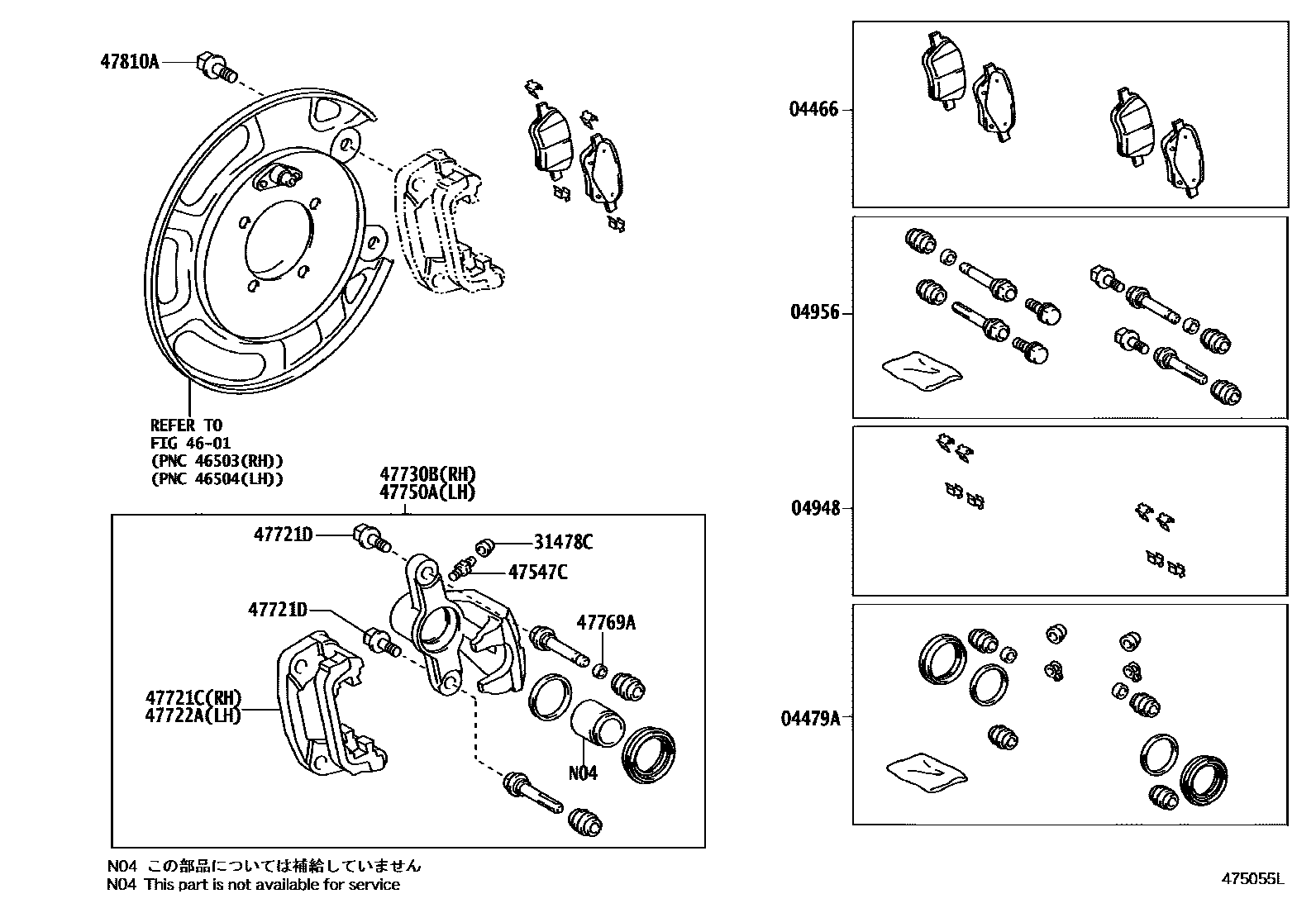

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-28110iACR5#,GSR5#..CBU200601-200802

main04466-58010iACR5#,GSR5#..CBU200803-200812

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-28180iACR5#,GSR5#..CBU200601-200812

04948FITTING KIT, DISC BRAKE, REAR

main04948-28020iACR5#,GSR5#..CBU200601-200812

04956SLIDE PIN KIT, REAR DISC BRAKE CYLINDER

main04956-28010iACR5#,GSR5#..CBU200601-200812

main04956-28011iACR5#,GSR5#..CBU201302-201605

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-05030×2iACR5#,GSR5#..CBU200601-200812

4601PARKING BRAKE & CABLE

→ Go to FIG 46-01

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-05020×2iACR5#,GSR5#..CBU200601-200812

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-28060iACR5#,GSR5#..CBU200601-200812

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main47715-05060×4iACR5#,GSR5#..CBU200601-200812

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-28060iACR5#,GSR5#..CBU200601-200812

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47830-28060iACR5#,GSR5#..CBU200601-200812

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47850-28060iACR5#,GSR5#..CBU200601-200812

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47879-28060×2iACR5#,GSR5#..CBU200601-200812

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main91672-B1228×4iACR5#,GSR5#..CBU200601-200812

14 parts on this diagram · 1 diagram in section
