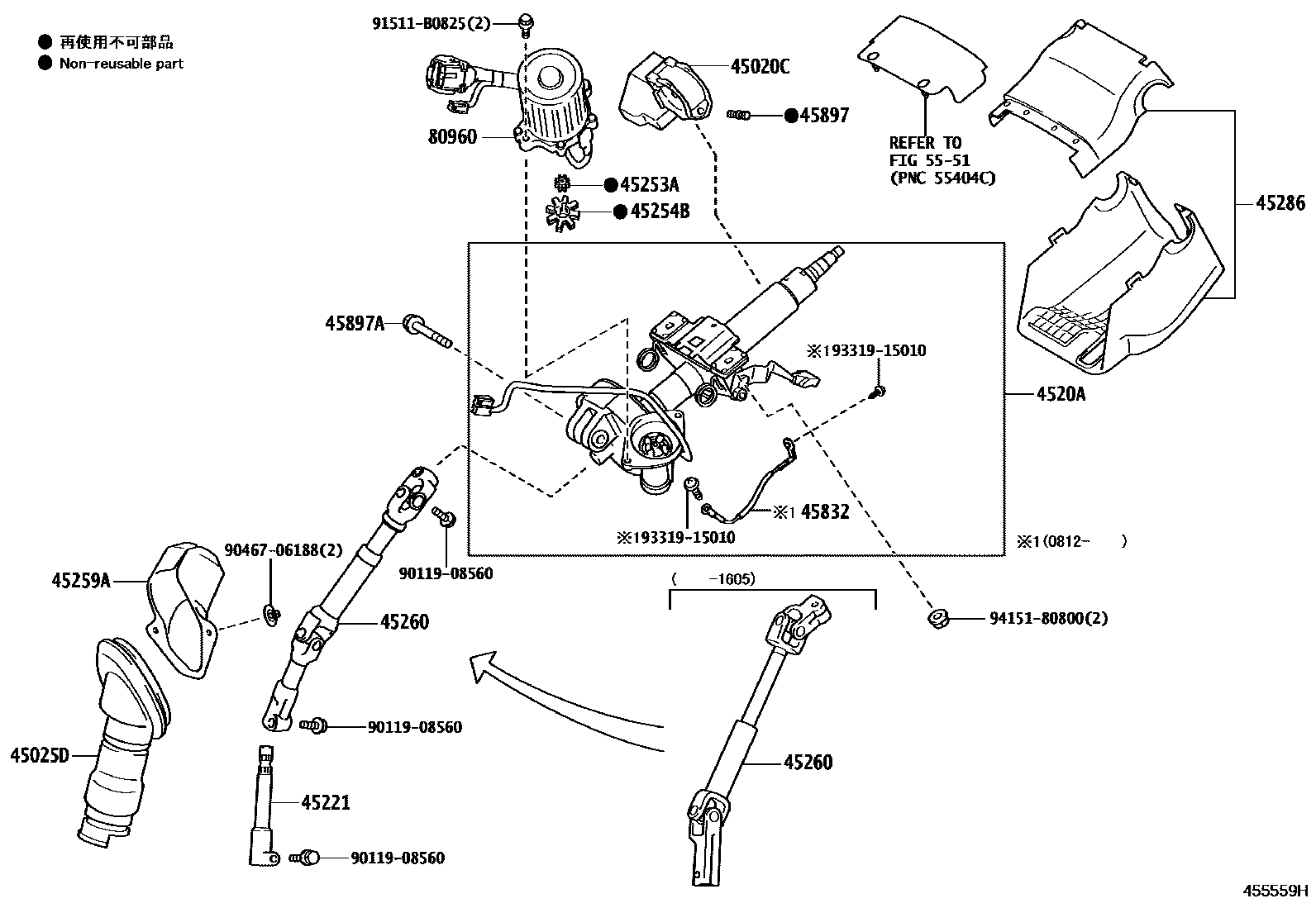

STEERING COLUMN & SHAFT

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-42150iACR5#,GSR5#..CBU200601-200812

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-28090iACR5#,GSR5#..CBU200812-201204

4520ACOLUMN SUB-ASSY, ELECTRIC POWER STEERING

main4520A-28010iACR5#,GSR5#..CBU200601-200812

main4520A-28160iACR5#..CBU201605

45221SHAFT, STEERING INTERMEDIATE

main45221-28140iACR5#,GSR5#..CBU200601-200812

45253ASPACER, ELECTRIC POWER STEERING MOTOR SHAFT

main45253-28130iACR5#,GSR5#..CBU200812-201204

45254BDAMPER, ELECTRIC POWER STEERING MOTOR SHAFT

main45254-28040iACR5#,GSR5#..CBU200601-200812

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-28010iACR5#,GSR5#..CBU200601-200812

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-28110iACR5#,GSR5#..CBU200601-200812

main45260-28180iACR5#..CBU201605

45286COVER, STEERING COLUMN

main45286-28902-B2iACR5#,GSR5#..AERAS..CBU200601-200805

DK.GRAY,TRIM1#

main45286-28902-E0iGSR5#..CBU;ACR5#..(G,X)..CBU;ACR5#..07S..AERAS..CBU200601-200805

GREGE,TRIM4#

main45286-28905-A0iACR5#,GSR5#..CBU201502-201605

SHELL,TRIM0#

main45286-28905-B2iACR5#,GSR5#..AERAS..CBU200805-200812

DK.GRAY,TRIM1#

main45286-28905-C0iACR5#..07S..AERAS..CBU; GSR5#..AERAS;ACR5#..08S..AERAS..CBU201502-201605

BLACK,TRIM2#; BLACK,TRIM2#,4#

main45286-28905-E0iACR5#,GSR5#..CBU200812-201204

GREGE,TRIM4#

main45286-28908-A0iACR5#,GSR5#..CBU201402-201502

SHELL,TRIM0#

main45286-28908-C0iACR5#..07S..AERAS..CBU; GSR5#..AERAS;ACR5#..08S..AERAS..CBU201402-201502

BLACK,TRIM2#; BLACK,TRIM2#,4#

main45286-28910-C0iACR5#..(AEPR,AERAS)..CBU; ACR5#..AEPG; ACR5#..AESM201605

BLACK,TRIM0#,4#; BLACK,TRIM2#; BLACK,TRIM2#,4#

45832CABLE, TILT STEERING SUPPORT BOND

main45832-21010iACR5#,GSR5#..CBU200812-201204

45897BOLT, STEERING LOCK SET

main45897-12020iACR5#,GSR5#..CBU200601-200812

45897ABOLT, TILT STEERING PAWL SET

main45897-42010iACR5#,GSR5#..CBU200601-200812

main90119-10980iACR5#,GSR5#..CBU201212-201605

main90119-10981iACR5#..CBU201605

5551INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-51

80960MOTOR ASSY, POWER STEERING

main80960-28060iACR5#,GSR5#..CBU200601-200812

9011908560

main90119-08560

9046706188

main90467-06188

91511B0825

main91511-B0825

9331915010

main93319-15010

9415180800

main94151-80800

19 parts on this diagram · 1 diagram in section
