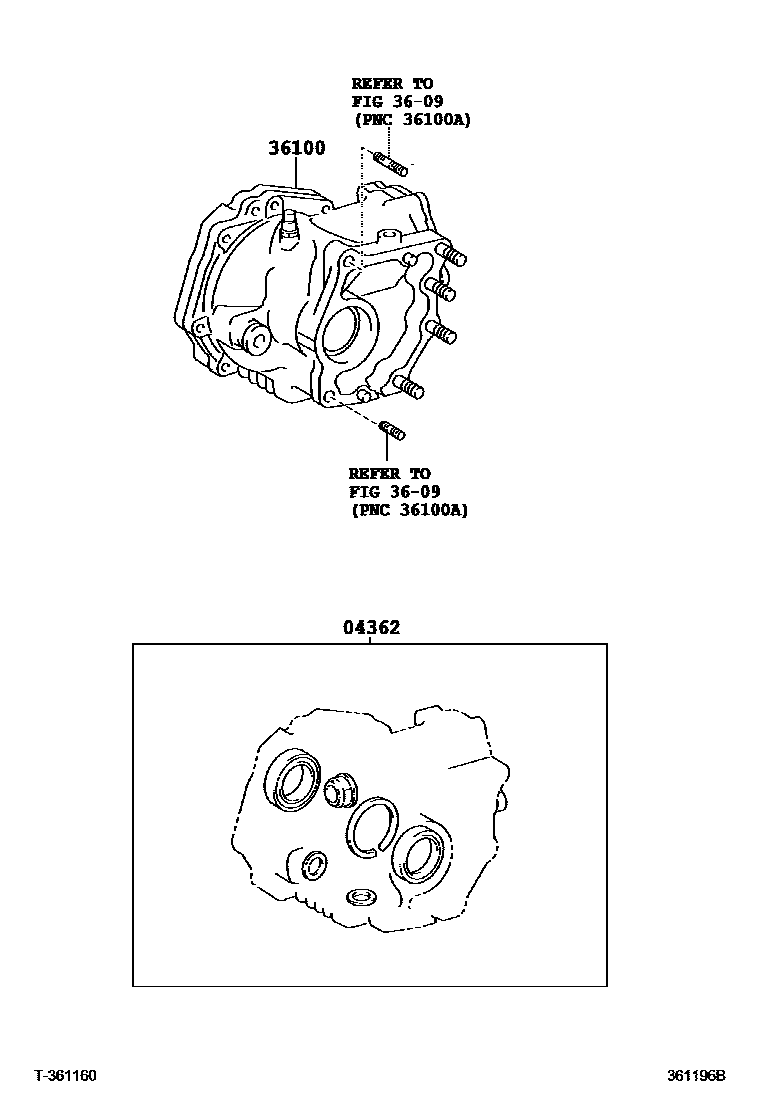

TRANSFER ASSEMBLY & GASKET KIT

0001 1 0002 1

04362GASKET KIT, TRANSFER OVERHAUL

main04362-12060iACR55..CBU201204-201605

main04362-42020iGSR55..CBU200812-201204

3609TRANSFER CASE & EXTENSION HOUSING

→ Go to FIG 36-09

36100TRANSFER ASSY

main36100-42080iACR55..CBU200601-200812

main36100-42100iGSR55..CBU200601-200807

main36100-42101iGSR55..CBU200812-201204

main36100-42140iACR55..CBU201508-201605

main36100-42141iACR55..CBU201605

main36100-58020iGSR55201508-201605

3 parts on this diagram · 2 diagrams in section
