TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

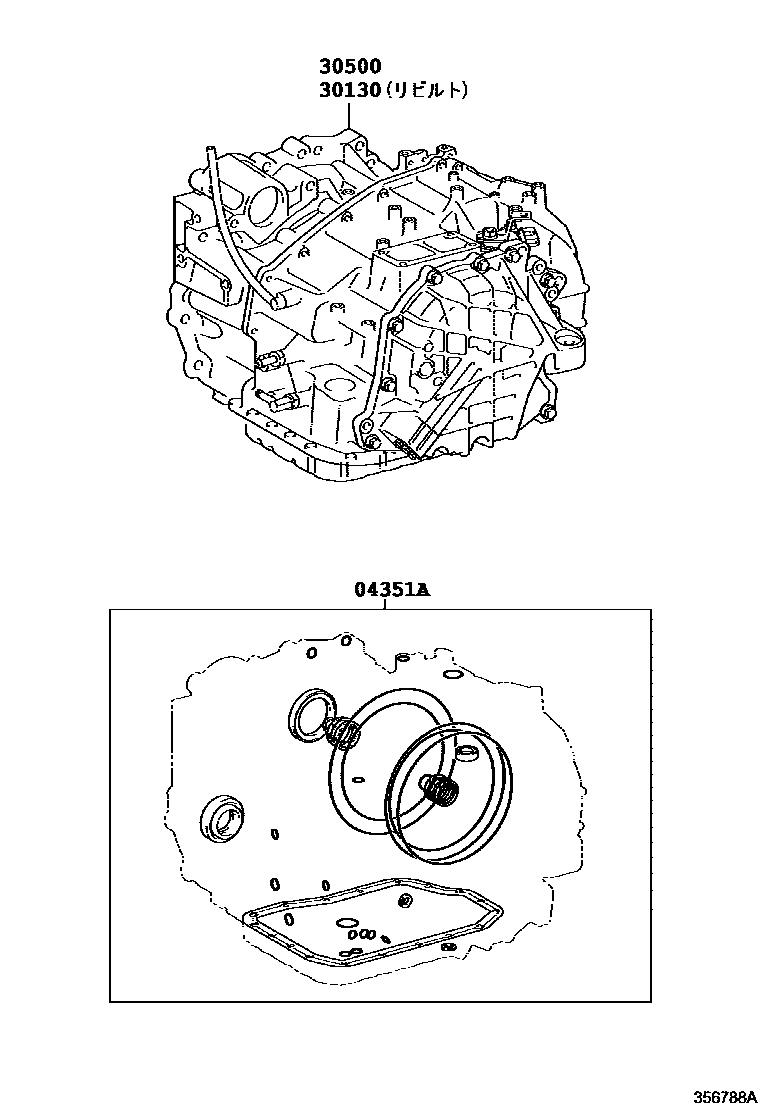

Parts diagram

04351AGASKET KIT, TRANSAXLE OVERHAUL(ATM)

main04351-28180i200812-201106

main04351-28181i201204-201605

main04351-33400i200601-200812

main04351-33401i201204-201212

main04351-33402i201212-201605

30130TRANSAXLE ASSY, REBUILT

main30130-28160i200601-200812

main30130-28170i200601-200811

main30130-28171i200811-200812

30500TRANSAXLE ASSY, AUTOMATIC

main30500-28160i200812-201204

main30500-28170i200601-200811

main30500-28171i200812-201204

3 parts on this diagram · 1 diagram in section
