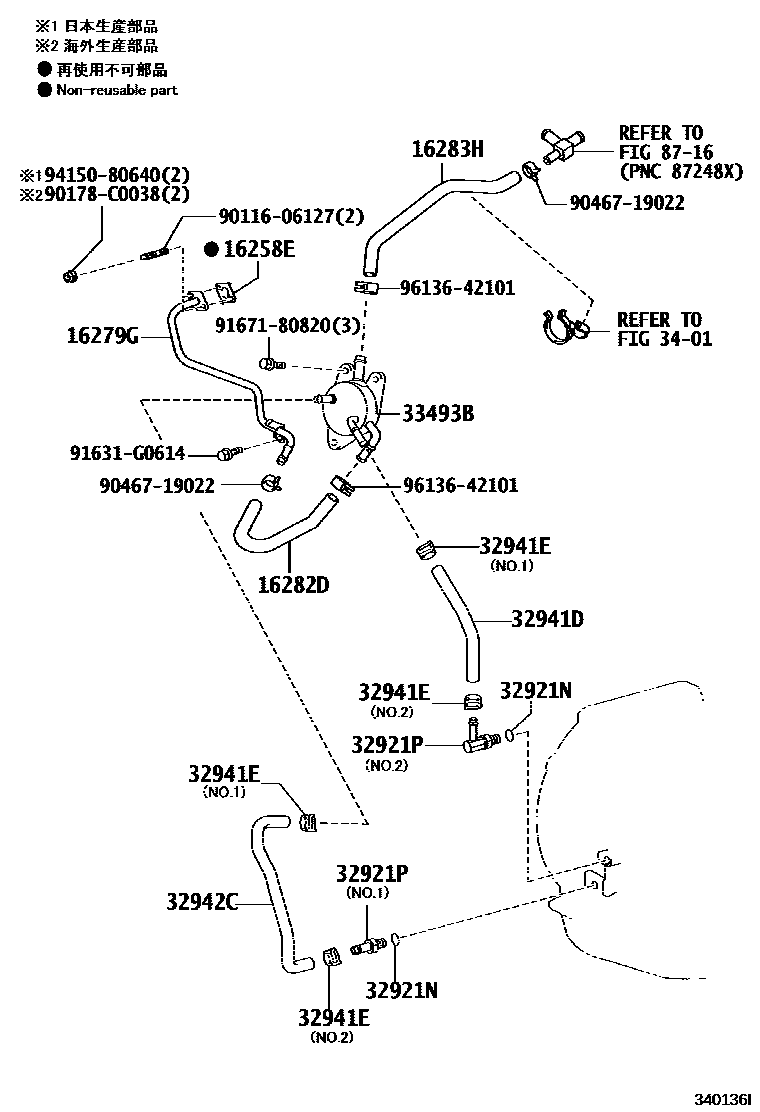

OIL COOLER & TUBE(CVT)

16258EGASKET(FOR WATER BY-PASS PIPE)

main16258-28040i2AZFE..ACR5#..CBU201605

main16258-0H050supersedes 16258-28040i2AZFE..ACR5#..CBU200804-200812

16279GPIPE, WATER BY-PASS, NO.3

main16279-28060i2AZFE..ACR5#..CBU201605

16282DHOSE, WATER BY-PASS, NO.5

main16282-28100i2AZFE..ACR5#..CBU200812-201204

16283HHOSE, WATER BY-PASS, NO.6

main16283-28120i2AZFE..ACR5#..CBU200601-200812

32921NRING, O(FOR OIL COOLER TUBE UNION)

main90301-10018×2iACR5#..CBU201512-201605

main90301-10189×2iACR5#..CBU200812-201204

32921PUNION(FOR OIL COOLER TUBE)

main90404-13004iACR5#..CBU200601-200812

main90404-13010iACR5#..CBU201605

main90407-13009iACR5#..CBU200812-201204

main90407-13010iACR5#..CBU201512-201605

32941DHOSE, OIL COOLER INLET

main90445-17069iACR5#..CBU200601-200801

main90445-17100iACR5#..CBU200802-200812

32941ECLIP(FOR OIL COOLER TUBE)

main90466-16004×4iACR5#..CBU200812-201204

main90467-16022×2iACR5#..CBU200601-200708

32942CHOSE, OIL COOLER OUTLET, NO.1

main32942-42040iACR5#..CBU200601-200812

main32942-58030iACR5#..CBU201605

33493BCOOLER, OIL

main33493-28030iACR5#..CBU200601-200812

main33493-58010iACR5#..CBU201204-201605

3401TRANSAXLE ASSY(CVT)

→ Go to FIG 34-01

8716HEATING & AIR CONDITIONING - WATER PIPING

→ Go to FIG 87-16

9011606127

main90116-06127

90178C0038

main90178-C0038

9046719022

main90467-19022

91631G0614

main91631-G0614

9167180820

main91671-80820

9415080640

main94150-80640

9613642101

main96136-42101

19 parts on this diagram · 1 diagram in section
