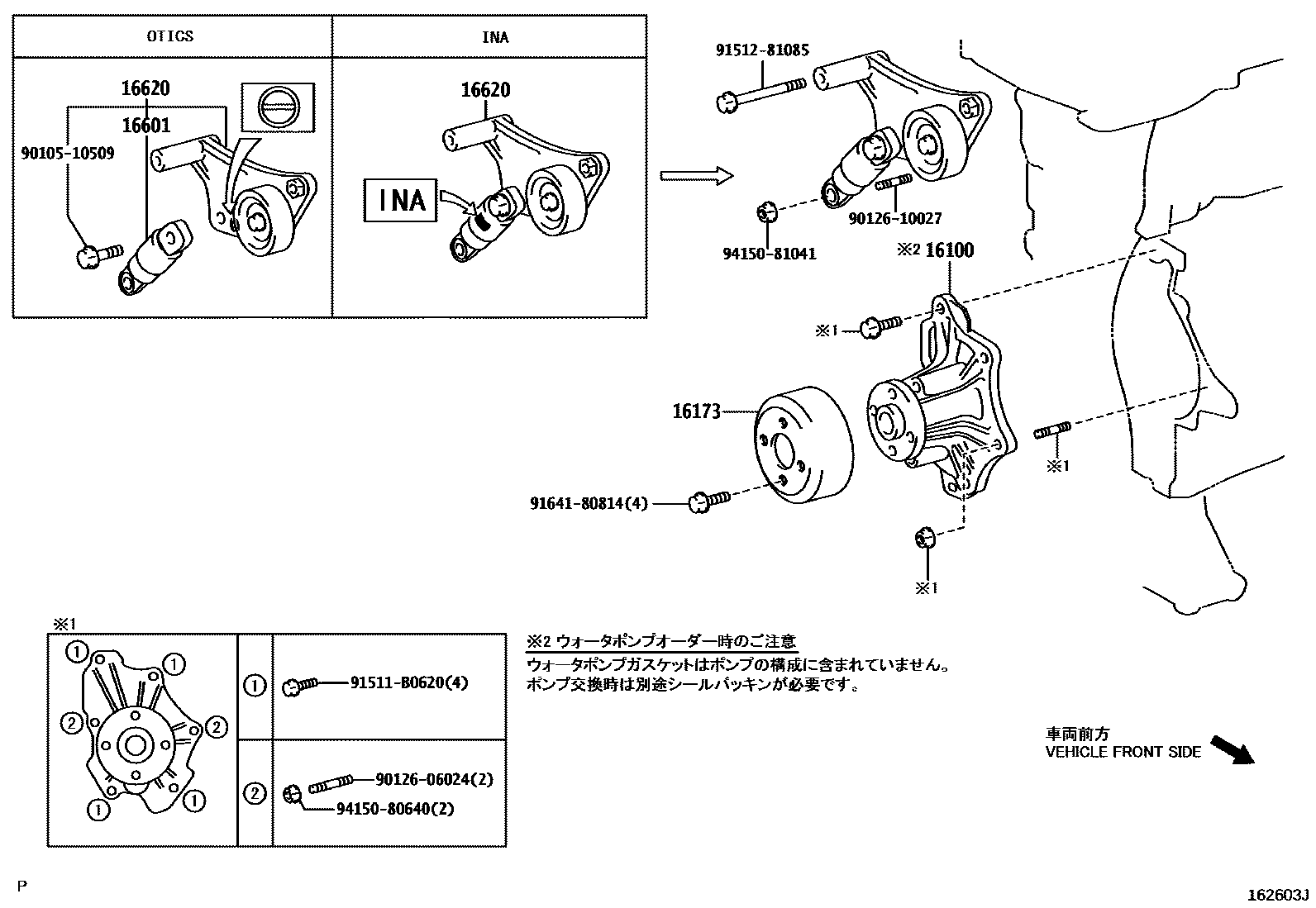

WATER PUMP

0001 1*195 0002 1*194 0003 1*195 0004 1*194 0005 1 0006 1

16100PUMP ASSY, ENGINE WATER

main16100-28041i2AZFE..ACR5#..CBU201605

main16100-39455i2GRFE..GSR5#..CBU200601-200812

main16100-39456i2GRFE..GSR5#201204-201605

main16100-0H040supersedes 16100-28041i2AZFE..ACR5#..CBU200601-200812

main16100-28040supersedes 16100-28041i2AZFE..ACR5#..CBU200601-200701

16173PULLEY, WATER PUMP

main16173-28020i2AZFE..ACR5#..CBU201605

main16173-31010i2GRFE..GSR5#..CBU200812-201204

main16173-0H040supersedes 16173-28020i2AZFE..ACR5#..CBU201204-201605

16601TENSIONER SUB-ASSY, V-RIBBED BELT

main16601-28020supersedes 16601-28021i2AZFE..ACR5#..CBU200601-200610

main16601-28021i2AZFE..ACR5#..CBU200610-200804

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0H021i2AZFE..ACR5#..CBU201605

main16620-31040i2GRFE..GSR5#..CBU200601-200812

main16620-0H020supersedes 16620-28041i2AZFE..ACR5#..CBU200804-200812

main16620-0H030supersedes 16620-28041i2AZFE..ACR5#..CBU200702-200805

main16620-28040supersedes 16620-28041i2AZFE..ACR5#..CBU200601-200610

main16620-28041i2AZFE..ACR5#..CBU200610-200805

9010510509

main90105-10509

9012606024

main90126-06024

9012610027

main90126-10027

91511B0620

main91511-B0620

9151281085

main91512-81085

9164180814

main91641-80814

9415080640

main94150-80640

9415081041

main94150-81041

12 parts on this diagram · 6 diagrams in section
