ENGINE OIL COOLER

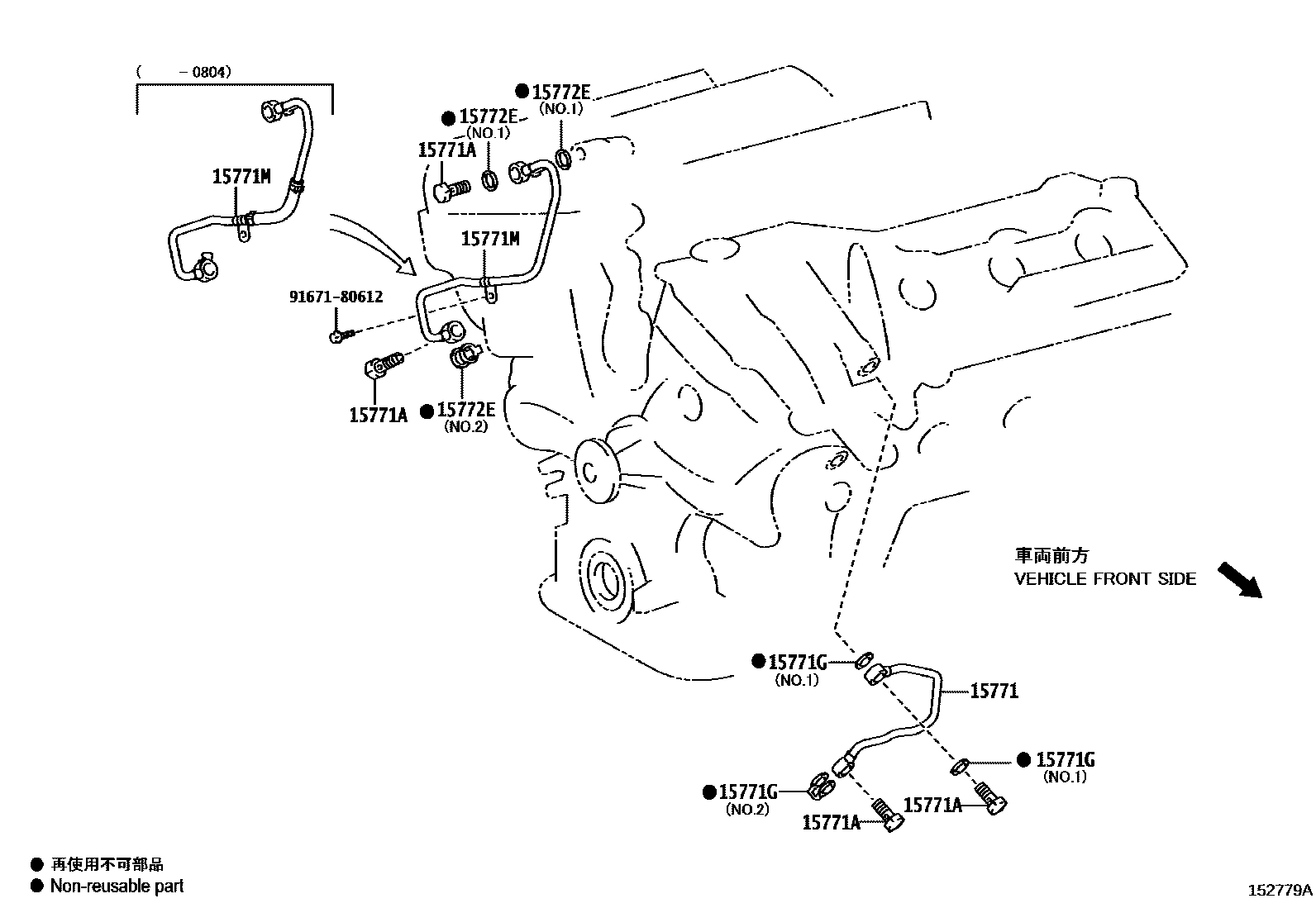

Parts diagram

15771PIPE, OIL, NO.1

main15771-31010i200601-200812

15771AUNION(FOR OIL PIPE)

main90401-16043×4i200601-200812

15771GGASKET

main90430-16012×2i200601-200803

main90430-16016i200601-200812

main90430-16017×2i200803-200812

15771MPIPE, OIL

main15707-31010i200601-200602

main15707-31011i200602-200606

main15707-31012i200606-200804

main15772-31030i200804-200812

15772EGASKET(FOR OIL PIPE)

main90430-16012×2i200601-200803

main90430-16016i200601-200812

main90430-16017×2i200812-201204

9167180612

main91671-80612

6 parts on this diagram · 1 diagram in section
