OIL FILTER

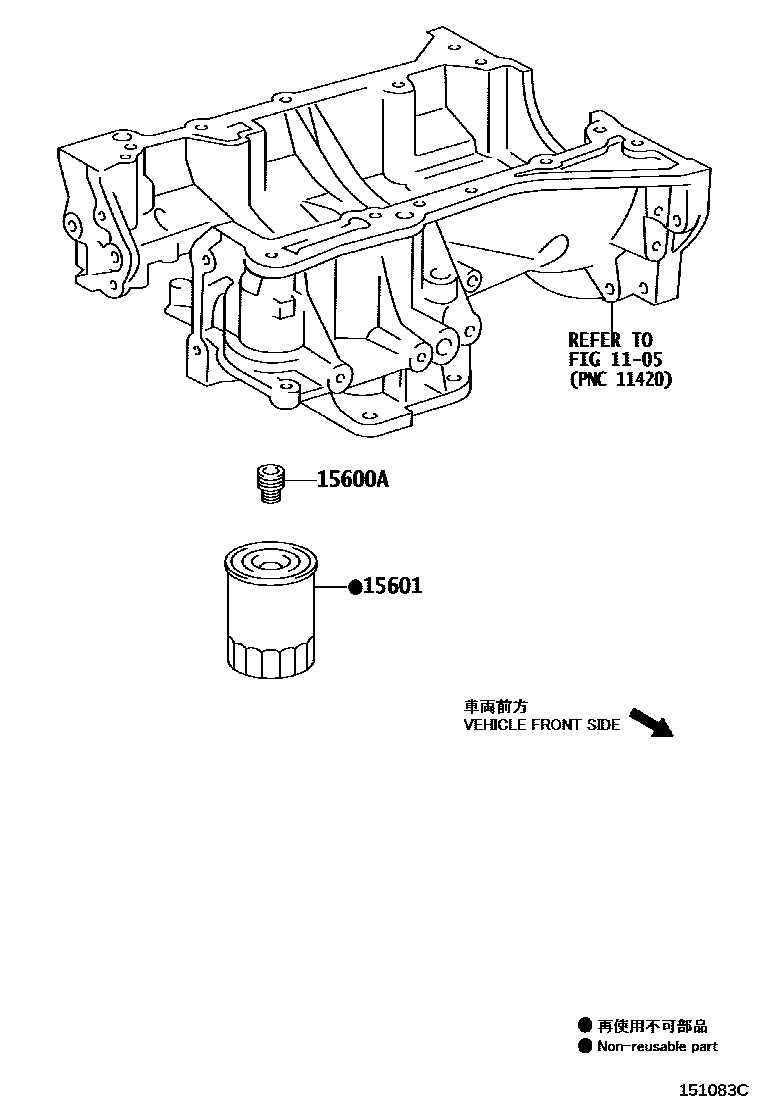

Parts diagram

1105

15600AUNION(FOR OIL FILTER)

main90904-04006i200601-201605

main90904-04006i200601-200812

main90904-04006i200812-201605

main90904-04006i200812-201605

main90904-04006i201605

15601FILTER SUB-ASSY, OIL

main90915-10004i200601-201605

main90915-10004i200601-200812

main90915-10004i200812-201204

main90915-10004i200812-201605

main90915-10004i201605

3 parts on this diagram · 2 diagrams in section
