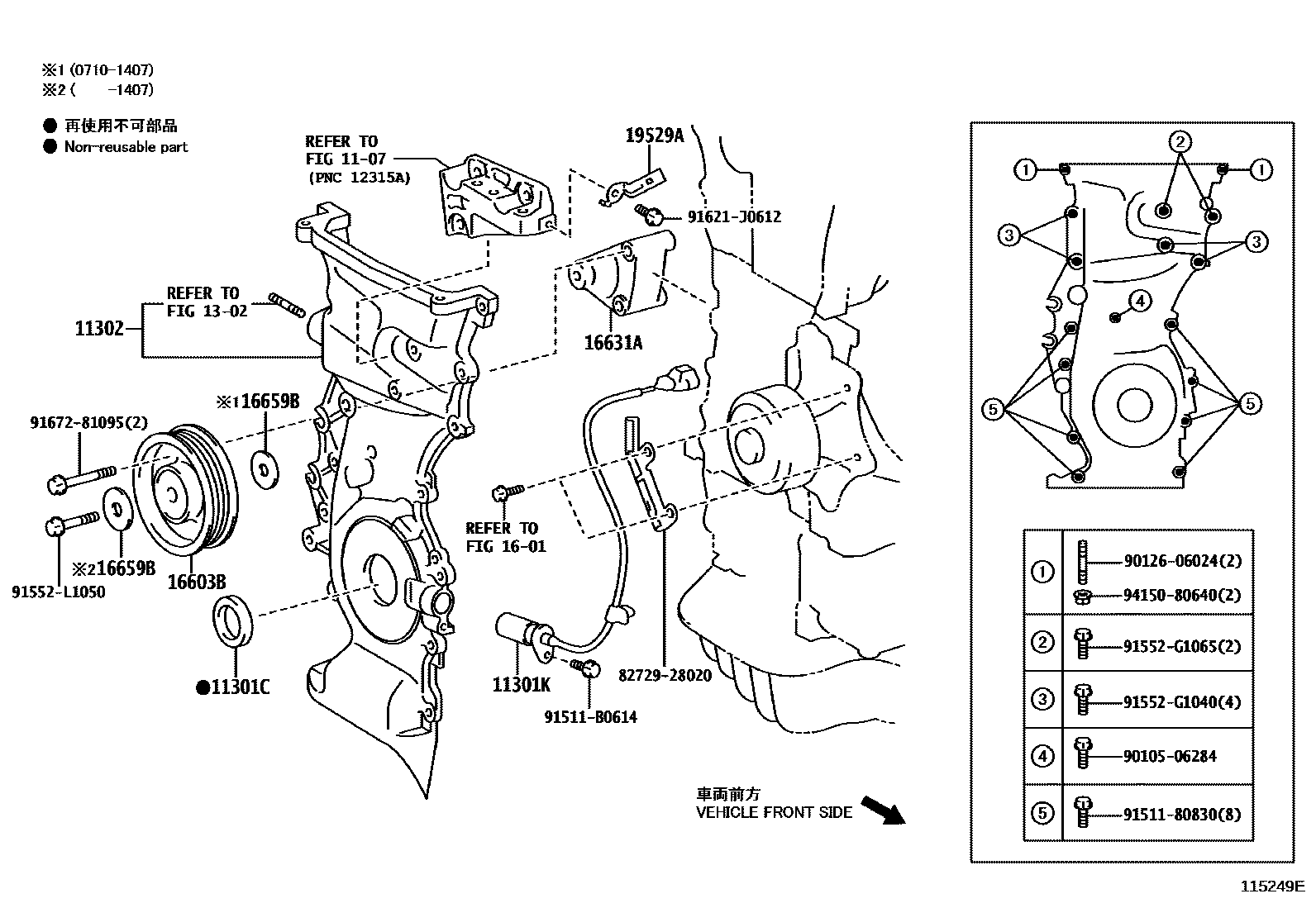

TIMING GEAR COVER & REAR END PLATE

0001 1*195 0002 1*194 0003 1 0004 1

1107MOUNTING

→ Go to FIG 11-07

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-38098supersedes 90311-38089i2AZFE..ACR5#..CBU201605

main90311-42037i2GRFE..GSR5#..CBU200601-200812

main90311-42045i2GRFE..GSR5#201204-201605

main90311-38089supersedes 90311-38098i2AZFE..ACR5#..CBU200812-201204

main90311-C0025supersedes 90311-38098i2AZFE..ACR5#..CBU201204-201605

main90311-T0024supersedes 90311-38098i2AZFE..ACR5#..CBU200812-201204

11301KSENSOR, CRANK POSITION

main90919-05047i2AZFE..ACR5#..CBU201605

main90919-05067supersedes 90919-05047i2AZFE..ACR5#..CBU200812-201204

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11310-28090i2AZFE..ACR5#..CBU201605

main11310-31020i2GRFE..GSR5#..CBU200812-201204

main11310-0H070supersedes 11310-28090i2AZFE..ACR5#..CBU200812-201204

1302CAMSHAFT & VALVE

→ Go to FIG 13-02

1601WATER PUMP

→ Go to FIG 16-01

16603BPULLEY SUB-ASSY, IDLER

main16603-28050i2AZFE..ACR5#..CBU201605

main16603-28020supersedes 16603-28050i2AZFE..ACR5#..CBU200812-201204

16631ABRACKET, IDLER PULLEY

main16631-28031i2AZFE..ACR5#..CBU201605

main16631-28030supersedes 16631-28031i2AZFE..ACR5#..CBU200601-200710

16659BPLATE, IDLER PULLEY COVER, NO.2

main16659-31011i2AZFE..ACR5#..CBU200601-200710

19529ACLAMP

main19529-28030i2AZFE..ACR5#..CBU201605

main19529-28050supersedes 19529-28030i2AZFE..ACR5#..CBU200812-201204

8272928020

main82729-28020

9010506284

main90105-06284

9012606024

main90126-06024

9151180830

main91511-80830

91511B0614

main91511-B0614

91552G1040

main91552-G1040

91552G1065

main91552-G1065

91552L1050

main91552-L1050

91621J0612

main91621-J0612

9167281095

main91672-81095

9415080640

main94150-80640

21 parts on this diagram · 4 diagrams in section
