11361JCOVER, FLYWHEEL HOUSING UNDER

main11361-28010i201605

main11361-31060i200812-201204

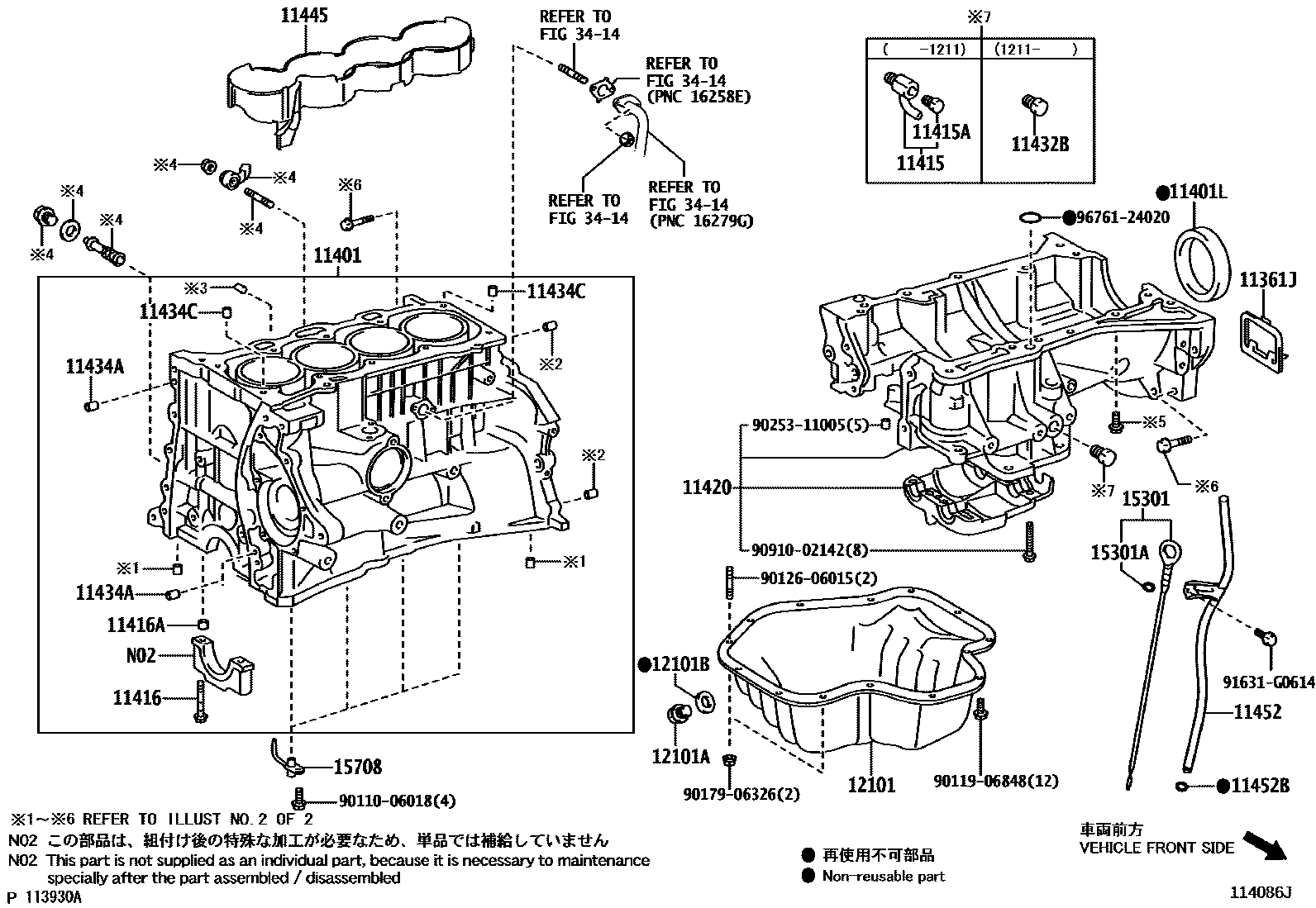

11401BLOCK SUB-ASSY, CYLINDER

main11401-80718i200601-200804

main11401-80774i200805-200812

main11401-80800i201210-201406

main11401-80814i201407-201412

main11401-80826i201412-201605

main11410-29346i201605

main11410-09220supersedes 11410-29345i200601-200708

main11410-09221supersedes 11410-29346i201204-201311

main11410-09222supersedes 11410-29346i201311-201605

main11410-29345supersedes 11410-29346i201204-201212

11401LSEAL, ENGINE REAR OIL

main90311-89010i201605

main90311-89003i200601-200812

main90311-89007supersedes 90311-89010i201204-201305

main90311-C0001supersedes 90311-89010i200812-201204

main90311-C0024supersedes 90311-89010i201204-201605

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90345-52001i201208-201605

main90910-09129×2i201204-201208

main90910-09120i201204-201211

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90910-09087i201204-201605

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02124×10i201605-201903

main90910-02154×16i200812-201004

main90910-02206×10i201904

11416APIN, RING(FOR CRANKSHAFT BEARING CAP SET)

main90253-13017×10supersedes 90253-A0008i201605

main90253-C0006×10supersedes 90253-13017i201311-201605

11420CRANKCASE ASSY, STIFFENING

main11420-28021i201605

main11420-0H040supersedes 11420-28020i200601-200605

main11420-0H050supersedes 11420-28021i200812-201010

main11420-0H051supersedes 11420-28021i201010-201204

main11420-28020supersedes 11420-28021i200812-201010

11432BPLUG, W/HEAD TAPER SCREW, NO.2

main90345-53006i201605

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-04097×2i200601-200812

main90250-08120×2i201605

main90250-C0011×2supersedes 90250-08120i201309-201605

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90250-08120×4i201204-201605

main90253-14003×2i201605

11445SPACER, CYLINDER BLOCK WATER JACKET

main11445-28020i201605

main11445-0H020supersedes 11445-28020i201204-201605

11452GUIDE, OIL LEVEL GAGE

main11452-28040i201605

main11452-31060i201204-201605

main11452-28060supersedes 11452-28040i200601-200812

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main90301-12018i200601-200812

main96721-19010i201605

main90301-C0007supersedes 96721-19010i201307-201605

12101PAN SUB-ASSY, OIL

main12101-28060i201605

main12101-31121i200812-201204

main12101-0H060supersedes 12101-28060i200601-200812

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i200601-200812

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i200601-200812

main90430-C0005supersedes 90430-12031i201204-201605

15301GAGE SUB-ASSY, OIL LEVEL

main15301-28031i201605

main15301-31100i200601-200812

main15301-31110i201204-201605

main15301-0H050supersedes 15301-28030i200604-200812

main15301-0H051supersedes 15301-28031i201301-201605

main15301-28030supersedes 15301-28031i200812-201204

15301ARING, O(FOR OIL LEVEL GAGE)

main96741-19005i201605

15708NOZZLE SUB-ASSY, OIL, NO.1

main15708-28011×4i201605

main15708-31030×3i200812-201204

main15708-31050×3i201506-201605

main15708-28010×4supersedes 15708-28011i200601-200809

3414OIL COOLER & TUBE(CVT)

→ Go to FIG 34-14

9011006018

main90110-06018

9011906848

main90119-06848

9012606015

main90126-06015

9017906326

main90179-06326

9025311005

main90253-11005

9091002142

main90910-02142

91631G0614

main91631-G0614

9676124020

main96761-24020
